FNIRSI DPOS350P 4-in-1 digital oscilloscope

FNIRSI DPOS350P 4-in-1 Digital Oscilloscope

The FNIRSI DPOS350P is a versatile digital oscilloscope designed for convenient, intuitive operation. Its 7-inch touch screen provides a clear view of signals and quick access to key functions. The instrument combines an oscilloscope, signal generator, spectrum analyser and frequency response analyser in one device. High bandwidth, fast sampling and deep memory support precise signal analysis, while advanced visualisation modes improve measurement readability.

Touch-screen control

The large 7-inch touch screen provides a clear view of the analysed signal and precise control of measurement parameters. Its interface makes it easy to assess system behaviour, while the high-quality display supports diagnostics and testing.

Four instruments in one

The DPOS350P combines four measurement functions: a two-channel oscilloscope with 350 MHz bandwidth, 1 GSa/s sampling, 8-bit resolution and a waveform capture rate of 50,000 waveforms per second; a signal generator with output up to 50 MHz; a spectrum analyser covering 200 kHz to 350 MHz; and a frequency response analyser covering 100 kHz to 50 MHz. Combining these functions in one instrument can save bench space and setup time.

Measurement performance

The oscilloscope offers 350 MHz bandwidth, a sampling rate of 1 GSa/s and a memory depth of 60 kpts for accurate signal reproduction and stable measurements, including with complex waveforms. The frequency response analyser supports Bode plot analysis from 100 Hz to 50 MHz, with adjustable excitation frequency, amplitude and offset. It is suitable for testing amplifiers, filters and power loops, and for assessing circuit frequency response.

Spectrum and EMI analysis

The spectrum analyser covers 200 kHz to 350 MHz. Key parameters can be adjusted manually, including start and stop frequencies, bandwidth, reference level, attenuation and FFT length. Cursor measurements and visualisation modes include waterfall and 3D waterfall displays. These functions support EMI testing, RF signal analysis and harmonic detection.

Signal display

Digital fluorescence provides clear signal traces and colour differentiation. Noise filtering helps improve waveform detection and presentation, while high-resolution mode supports 8- to 16-bit display resolution.

Portable design and operation

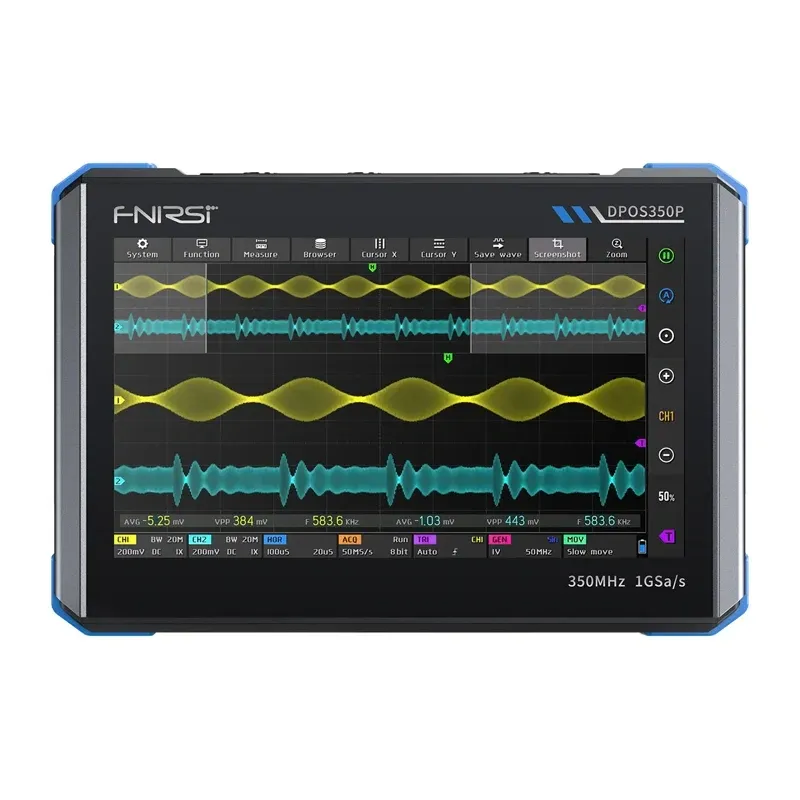

The slim housing has a black finish with blue accents. Its tablet-style form supports one-handed operation, and the capacitive touch interface provides direct access to functions. The instrument supports Chinese, English, Russian and Portuguese. It has a 7-inch IPS display with a 1024 × 600-pixel resolution and a full viewing angle.

Included

• 350 MHz probes × 2
• QC18W charger
• USB cable
• Alligator-clip leads
• User manual

General specifications

• Manufacturer: Fnirsi
• Model: DPOS350P
• Startup configuration: 5 presets
• Languages: Chinese, English, Russian and Portuguese
• Screen: 7-inch IPS, 1024 × 600 pixels, full viewing angle
• Interaction: Capacitive touch screen
• Expansion interface: Capacitive touch screen
• Automatic power-off: 15 minutes to 1 hour, or disabled
• Updates: Supports .iso image updates
• Charging requirements: QC18W, 12 V / 1.5 A
• Battery: 3.7 V lithium, 8000 mAh
• Operating time: Approximately 3 hours
• Charging time: Approximately 5 hours
• Total power consumption: 10 W
• Cooling: Passive air cooling
• Dimensions: 190 × 128 × 37 mm

Frequency response analyser (FRA)

• Excitation signal frequency: 100 Hz to 50 MHz
• Excitation signal amplitude: 0 to 5 Vpp
• Excitation signal offset: −2.5 V to +2.5 V
• Number of frequency points: 20 to 500
• Cursor measurements: Frequency, gain and phase
• Operating modes: Single and cyclic
• System calibration: Supported

Spectrum analyser (SA)

• Conversion method: FFT
• FFT length: 4K to 32K
• Frequency range: 200 kHz to 350 MHz
• Level range: −60 dBmV to +260 dBmV
• Cursor measurements: Frequency and amplitude
• Marker parameter: Maximum-energy harmonic
• Waterfall graph: Supported
• 3D waterfall graph: Supported
• Automatic adjustment: Supported
• System calibration: Supported

Oscilloscope

• Channels: 2
• Bandwidth: 350 MHz
• Rise time: 1 ns
• Maximum sampling rate: 1 GSa/s
• Memory depth: 60 kpts
• Input impedance: 1 MΩ / 14 pF
• Time-base range: 5 ns to 50 s
• Roll time base: 50 ms to 50 s
• Vertical sensitivity: 2 mV to 20 V (1×)
• Vertical range: 16 mV to 160 V (1×)
• DC accuracy: ±2%
• Time accuracy: ±0.01%
• Input coupling: DC / AC
• Background grid: Display or hide
• Waveform shift: Coarse or fine adjustment
• Overvoltage protection: Up to 400 V
• Waveform brightness: Adjustable
• FFT display: Supported
• Digital fluorescence: Supported
• Probe attenuation: 1× / 10× / 100×
• Hardware bandwidth limits: 150 MHz / 20 MHz
• High-resolution mode: 8 to 16 bit
• Parameter measurements: 12 types
• Cursor measurements: Time, period, frequency, level and voltage
• Trigger detection: Digital
• Trigger channel: CH1 / CH2
• Trigger modes: Auto / Single / Normal
• Trigger edge: Rising / Falling
• Trigger attenuation: L1 to L3
• Trigger level: Manual or automatic (10% to 90%)
• Screenshot storage: 90 images
• Waveform storage: 500 sets
• Colour-temperature display: Supported
• X-Y mode: Supported
• Time-base zoom: Supported
• One-key automatic adjustment: Supported
• One-key zero return: Supported
• Data browser: Supported

Signal generator (SG)

• Waveform types: 14 standard waveforms plus captured waveforms
• Frequency: 0 to 50 MHz (sine); other waveforms up to 10 M / 5 M / 3 M
• Amplitude: 0 to 5 Vpp
• Offset: −2.5 V to +2.5 V
• Duty cycle: 0.1% to 99.9%
• Frequency resolution: 1 Hz
• Amplitude resolution: 1 mV
• Offset resolution: 1 mV
• Duty-cycle resolution: 0.1%
• Stored custom waveforms: 500 sets
