FNIRSI DWS-200F 200W Soldering Station

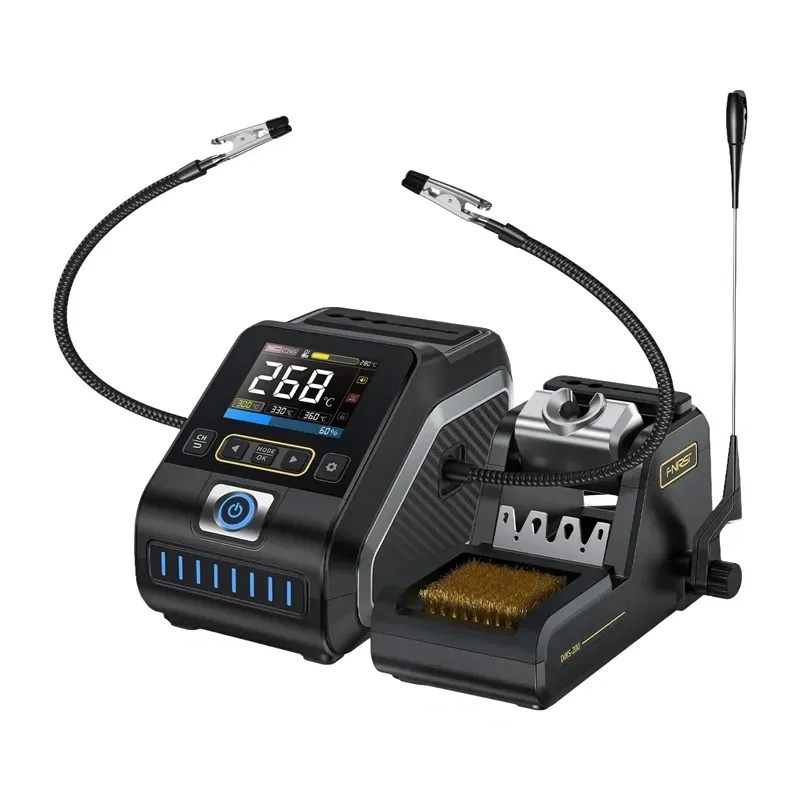

FNIRSI DWS-200F 200 W Soldering Station

The FNIRSI DWS-200F is a high-power soldering station for demanding hobby and professional electronics work. It delivers up to 200 W, heats rapidly and maintains a stable temperature. A colour display, compatibility with two soldering iron types, operating parameter monitoring and automatic sleep mode support convenient use and help extend soldering tip life. The included workstation accessories provide the essentials for setting up a soldering workspace.

Rapid Heating and Stable Temperature

With up to 200 W of power, the station heats the tip in approximately one second, and solder melts in about three seconds. A PID control algorithm monitors operating conditions and adjusts the output to maintain the set temperature. The temperature range of 100°C to 450°C suits a variety of electronic components and solder alloys. The temperature display can be switched between Celsius and Fahrenheit.

Display and Operating Features

The 2.8-inch HD TFT colour display shows key operating parameters. Choose from three display modes: temperature only, a dynamic temperature graph, or both together. The station monitors temperature and power during operation. Three preset temperatures—150°C, 330°C and 450°C—allow quick selection of commonly used settings.

Sleep Mode and Safety

When the soldering iron is placed on its stand, the station automatically enters sleep mode. This reduces unnecessary tip heating, minimises wear and helps extend tip service life. Protection against electrostatic discharge and short circuits helps protect the station and the components being soldered. The 100–240 V AC input range supports use with different mains supplies without an additional voltage adapter.

Compatibility and Workstation Accessories

The DWS-200F is compatible with F210 and F245 soldering irons. Its 7-pin interface replaces the previous 5-pin interface and is designed to improve connection stability and signal transmission. The 7-pin interface is not compatible with older models.

The included metal stand has an adjustable container, an opening for quick tip removal and storage slots. The set also includes a wire brush, a connection cable and a holder for the flask tube.

Specifications

• Manufacturer: FNIRSI
• Model: DWS-200F
• Display: 2.8-inch TFT
• Temperature range: 100°C–450°C
• Peak power: 200 W
• Input voltage: 100–240 V AC
• Input fuse: 3 A
• Supported soldering irons: F210, F245
• Dimensions: 156 × 96 × 103 mm
• Weight: 475 g
