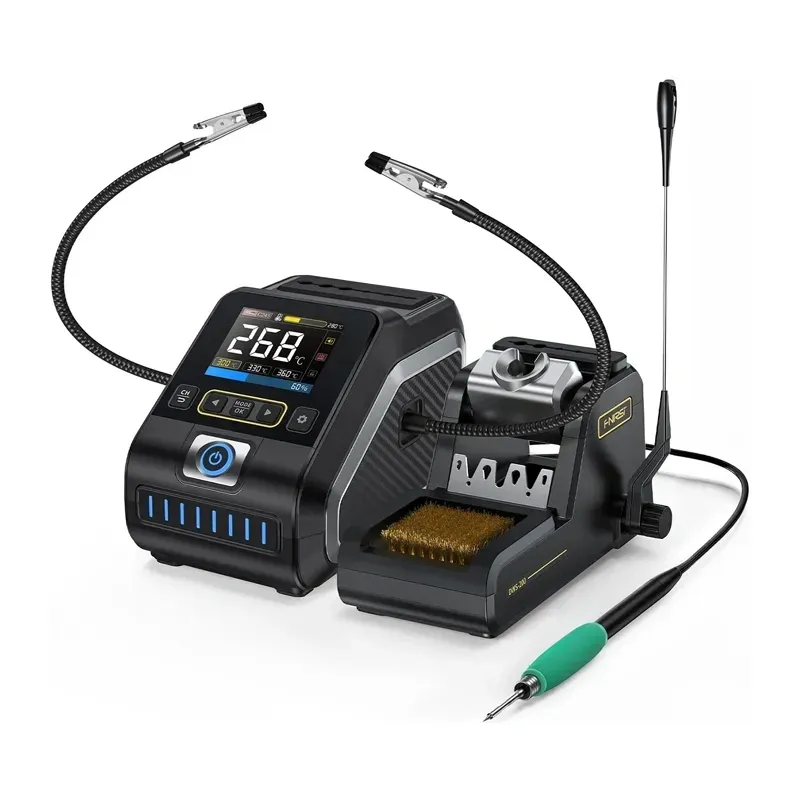

FNIRSI DWS-200 200W Soldering Station

High power and fast heating

The FNIRSI DWS-200 soldering station is designed for precise soldering in electronics repair and other projects. Its pure-copper transformer supports stable operation with an AC input voltage of 100–240 V. With a maximum power of 200 W, the soldering tip heats up in approximately 1 second, while solder reaches its melting point in approximately 3 seconds. The temperature can be adjusted from 100°C to 450°C, and the display can show temperatures in Celsius or Fahrenheit.

Intelligent temperature control

A PID control algorithm helps maintain the set temperature during operation. Three preset temperatures—150°C, 330°C and 450°C—allow quick selection of commonly used settings. The station is compatible with F210 and F245 tips; the F245 tip is sold separately.

Colour TFT display

The 2.8-inch colour HD TFT display presents key operating information in three modes: current temperature, a temperature-change graph, or a combined view. The real-time temperature curve lets you monitor the station’s behaviour while soldering.

Standby and protection

The multifunctional soldering iron stand works with the station’s inductive standby mode. Returning the iron to its holder automatically activates sleep mode, reducing energy consumption and helping extend the service life of the tip and other consumable parts. Antistatic and short-circuit protection provide additional safety for the user and the components being soldered.

Included in the set

• FNIRSI DWS-200 200W soldering station
• Soldering iron stand
• F210 holder
• T210-B tip
• Two auxiliary holders
• Power cord
• Connection cable
• User manual

Specifications

• Manufacturer: FNIRSI
• Model: DWS-200 210
• Display: 2.8-inch TFT
• Temperature range: 100°C–450°C / 212°F–842°F
• Peak power: 200 W (maximum)
• Input voltage: 100–240 V AC
• Input fuse: 3 A
• Compatible tip types: F210, F245
• Dimensions: 156 × 96 × 103 mm
• Weight: 475 g (main unit only)
