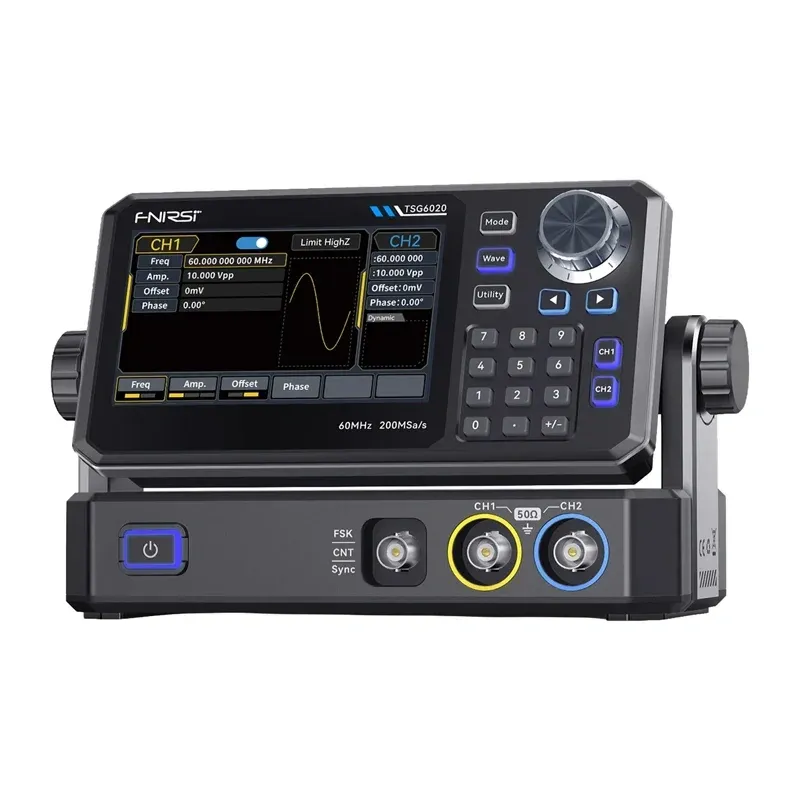

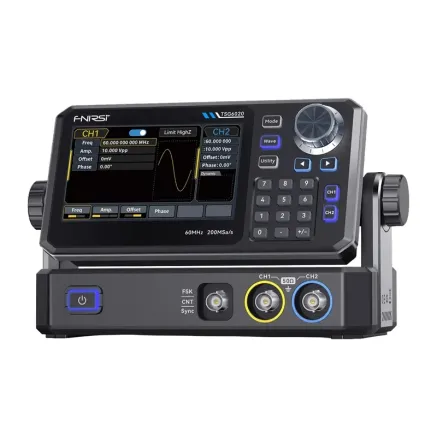

The FNIRSI TSG3020 combines accurate signal generation with intuitive operation, making it suitable for laboratories, workshops and field use. Its dual-channel design, sampling rate of 200 MSa/s and 14-bit vertical resolution support high-quality signal generation with low distortion. It offers standard and arbitrary waveforms, six modulation types, frequency sweep and a built-in frequency counter. A touchscreen and signal-quality enhancement technologies complete this robust instrument for demanding use.

Two Independent Channels

Two independent output channels can generate different signals simultaneously for more advanced measurements. The maximum output frequency is 60 MHz. The amplitude range varies according to load and frequency. For high-impedance loads, it is 2 mVpp to 20 Vpp below 10 MHz and 2 mVpp to 10 Vpp above 10 MHz. With a 50 Ω load, the range is 1 mVpp to 10 Vpp below 10 MHz and 1 mVpp to 5 Vpp above 10 MHz. A 200 MSa/s sampling rate and 14-bit vertical resolution support accurate waveform reproduction, preserve fine detail and minimise distortion.

Standard and Arbitrary Waveforms

The TSG3020 generates sine, square, ramp (sawtooth), pulse, noise and DC waveforms. It also supports custom arbitrary waveforms created point by point, enabling precise reproduction of complex signals. VeriPoint technology supports arbitrary-waveform sampling rates from 1 µSa/s to 200 MSa/s while retaining signal detail and keeping jitter below 200 ps. ZeroSurge technology improves square, pulse and sawtooth waveforms, limiting overshoot to a maximum of 1% and providing rise and fall times as short as 13.5 ns. This produces sharp edges for accurate electronic circuit testing.

Advanced Modulation

Six modulation types are supported: AM, FM, PM, FSK, ASK and PSK. These functions are suitable for testing digital communication systems and radio equipment. Frequency sweep is available in linear or logarithmic mode, with sweep times adjustable from 1 ms to 500 s and accuracy of ±0.1%. This supports analysis of filter characteristics and the frequency response of devices under test. The built-in 7-digit frequency counter accepts TTL signals from 100 mHz to 100 MHz and measures frequency, period and duty cycle with an accuracy of ±51 ppm.

Convenient Operation and Signal Quality

The generator provides an amplitude range of 1 mVpp to 10 Vpp with a 50 Ω load. Phase noise is no greater than -125 dBc/Hz at 10 MHz with a 10 kHz offset, and harmonic distortion is below -40 dBc in the 30–60 MHz range. Operation is managed through a 4.3-inch colour TFT-LCD touchscreen, with physical buttons for quick parameter changes. The display shows waveform previews and the generator’s current status to help configure and monitor settings.

Configuration and Protection

Output protection features include channel isolation, ground protection and a TTL-compatible synchronisation output for safe, stable operation. An aluminium heat sink and quiet fan help maintain the operating temperature and stable performance during extended use. Non-volatile memory stores up to 24 custom arbitrary waveforms for quick recall. Operating modes include continuous output, gated output, modulation and sweep, providing flexibility for measurement setups and automated test systems.

Specifications

• Manufacturer: FNIRSI
• Model: TSG3020
• Maximum output frequency: 30 mHz (as specified)
• Sampling rate: 200 MSa/s
• Vertical resolution: 14 bits
• Channels: 2
• Maximum output amplitude: 20 Vpp (<10 mHz) / 10 Vpp (>10 mHz), as specified
• Sine-wave frequency: 1 µHz–24 MHz
• Square-wave frequency: 1 µHz–24 MHz
• Pulse-wave frequency: 1 µHz–24 MHz
• Modulation types: AM, FM, PM, FSK, ASK, PSK
• Sweep modes: Linear and logarithmic
• Built-in frequency counter: 7-digit
• Display: 4.3-inch TFT LCD, 480 × 272 pixels

Included in the Set

• Function generator
• Charging adapter
• Type-C charging cable
• Data cable
• Measuring lead
• Alligator clips
• User manual
