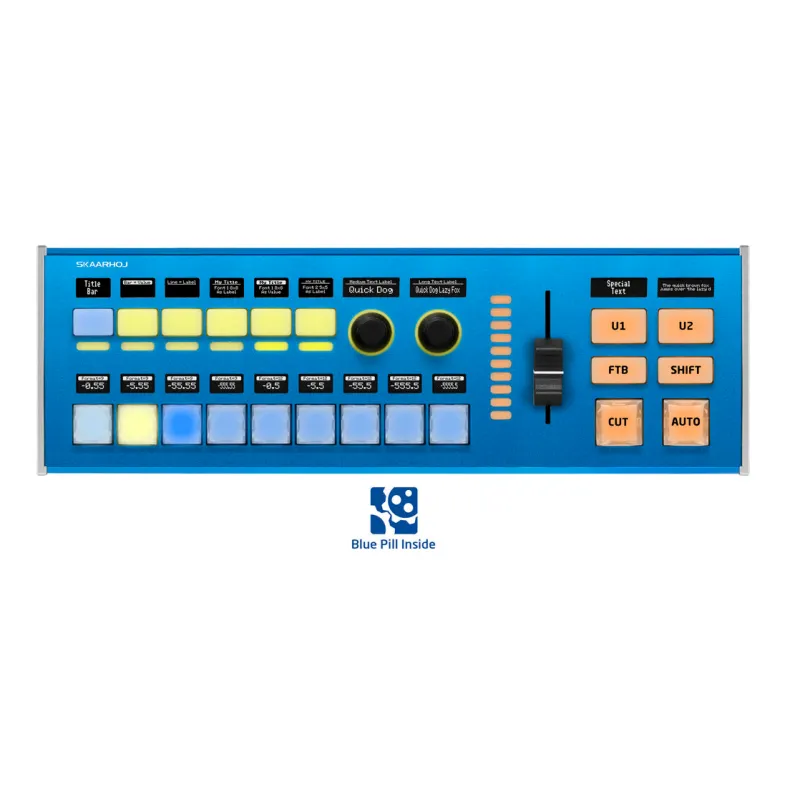

Skaarhoj Live Fly Controller with Blue Pill Inside and NKK Buttons
The SKAARHOJ Live Fly Controller is a professional live production control surface designed for up to 8-camera workflows. It features programmable four-way buttons, OLED displays, precision encoders, and a transition fader, delivering flexible, IP-based control with integrated Blue Pill processing and PoE connectivity for streamlined setup.
This powerful mid-size broadcast controller is engineered for live production environments requiring precise, customizable control. It manages up to eight-camera productions and offers a highly flexible interface suitable for switching, audio control, and multi-device operation across platforms such as vMix, TriCaster, and ATEM systems.
The controller includes nine programmable four-way buttons with OLED displays for intuitive labeling and control, along with six dedicated four-way audio buttons equipped with RGB multi-level LED bars for real-time metering and status feedback. A transition fader with an RGB LED bar allows smooth control of transitions or visual monitoring of levels, while two high-precision encoder knobs with OLED displays provide tactile parameter adjustments.
An integrated ME (Mix Effects) section includes multi-level shift and user keys, enabling advanced control over complex switching workflows. With Blue Pill Inside, the unit incorporates SKAARHOJ's powerful processing hardware directly into the controller, running skaarOS for seamless device integration and control without requiring external modules.
Connectivity is handled via Ethernet with Power over Ethernet (PoE IEEE802.3at), simplifying installation by combining power and data through a single cable. The modular architecture allows users to configure, expand, and adapt the controller to various production needs, making it suitable for studios, OB vans, and live event setups.
Key Features
- Supports up to 8-camera live production workflows
- Integrated Blue Pill with skaarOS control system
- 9 programmable four-way buttons with OLED displays
- 6 four-way audio control buttons with RGB LED metering
- 19 customizable OLED displays for function labeling
- 2 precision encoder knobs with OLED feedback
- Transition fader with RGB LED bar
- Dedicated ME section with shift and user keys
- RGB LEDs for tally, VU metering, and status indication
- Ethernet connectivity with PoE (IEEE802.3at)
- Slim, ergonomic console design
- Compatible with vMix, TriCaster, ATEM, and other IP-based systems
Included Items
- SKAARHOJ Live Fly Controller with Blue Pill Inside and NKK Buttons
- Power supply (if not using PoE)
- Documentation
Specifications
- Control type: Modular live production controller
- Buttons: 9 programmable four-way buttons, 6 four-way audio buttons
- Displays: 19 OLED screens
- Encoders: 2 encoder knobs
- Fader: 1 transition fader with RGB LED bar
- Connectivity: RJ45 Ethernet with PoE (IEEE802.3at)
- System: Integrated Blue Pill (skaarOS)
- Power: PoE or external power (if required)
- Form factor: Slim desktop console
