Caruba Extension Tube Set Nikon Chrome Type II Z Mount

Extension Tube Set for Nikon Z Mount Cameras

Product Description

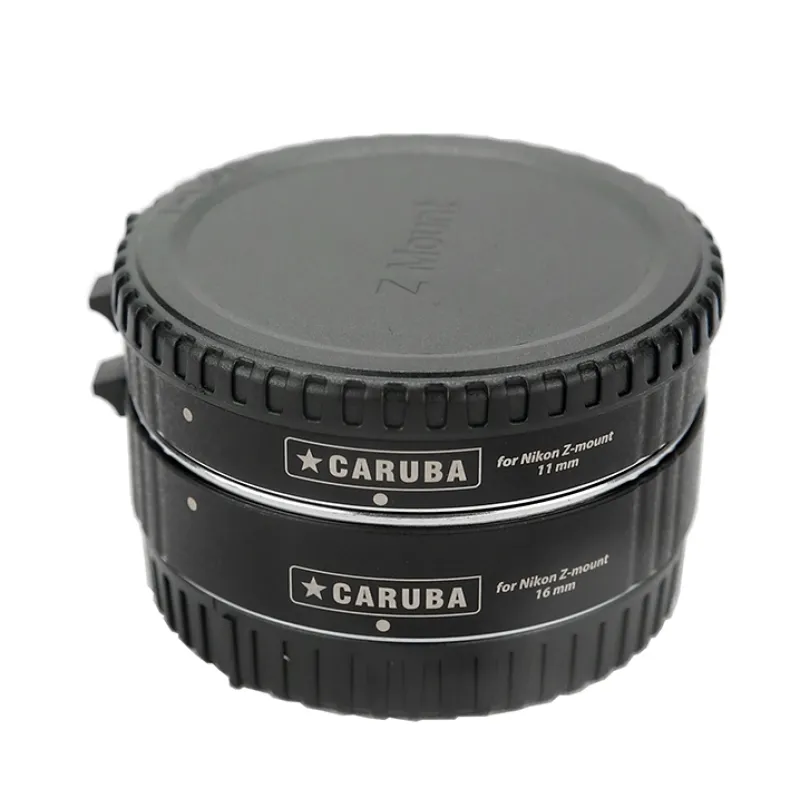

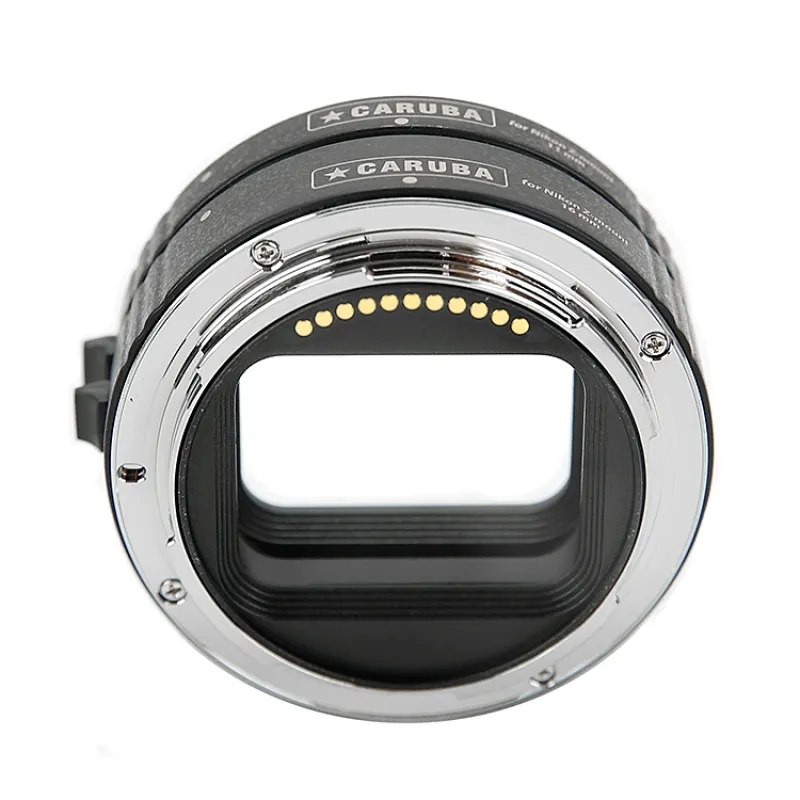

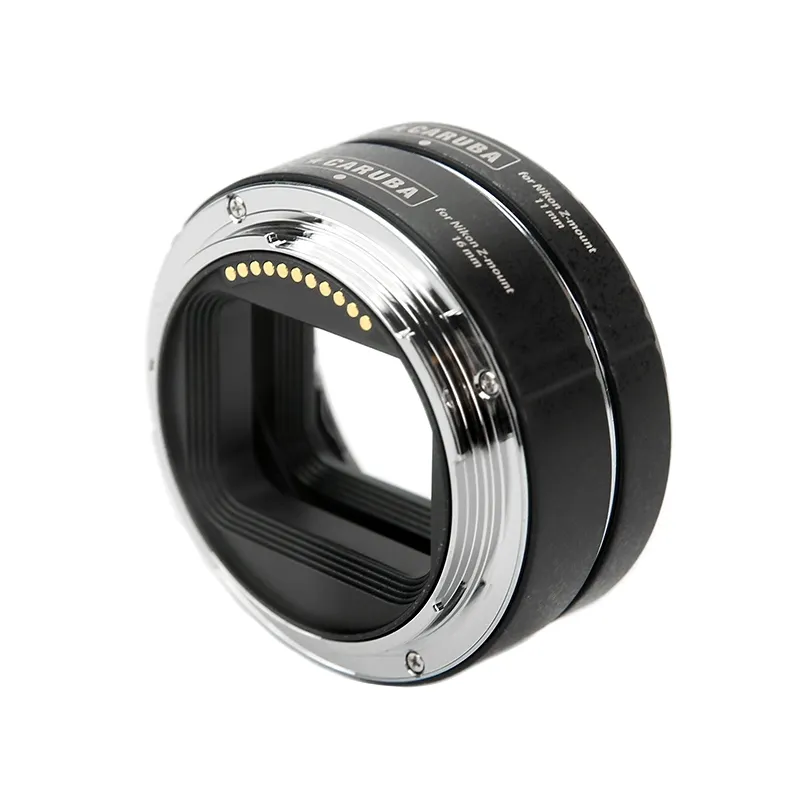

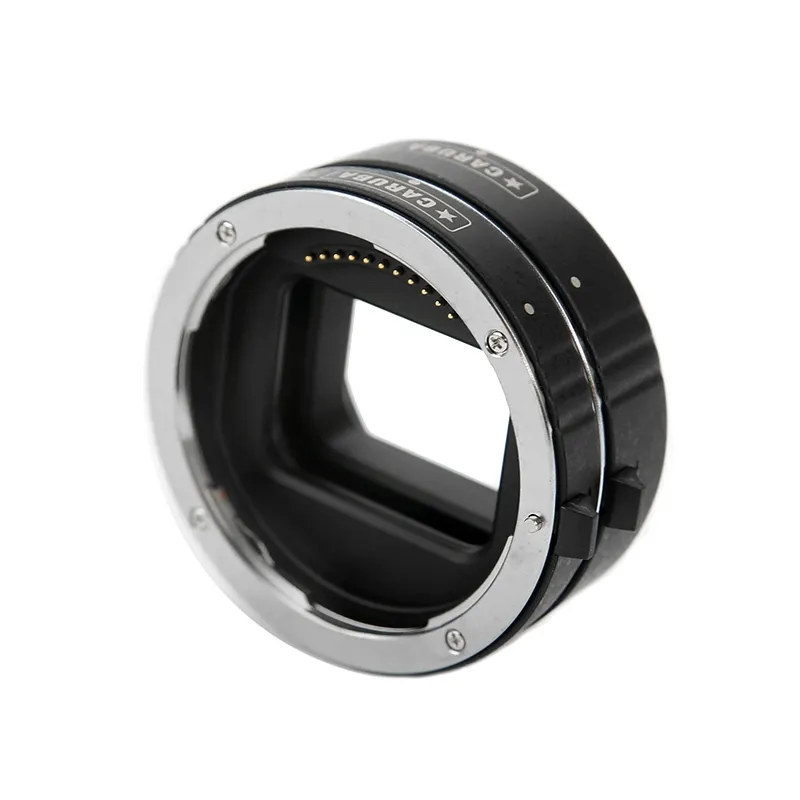

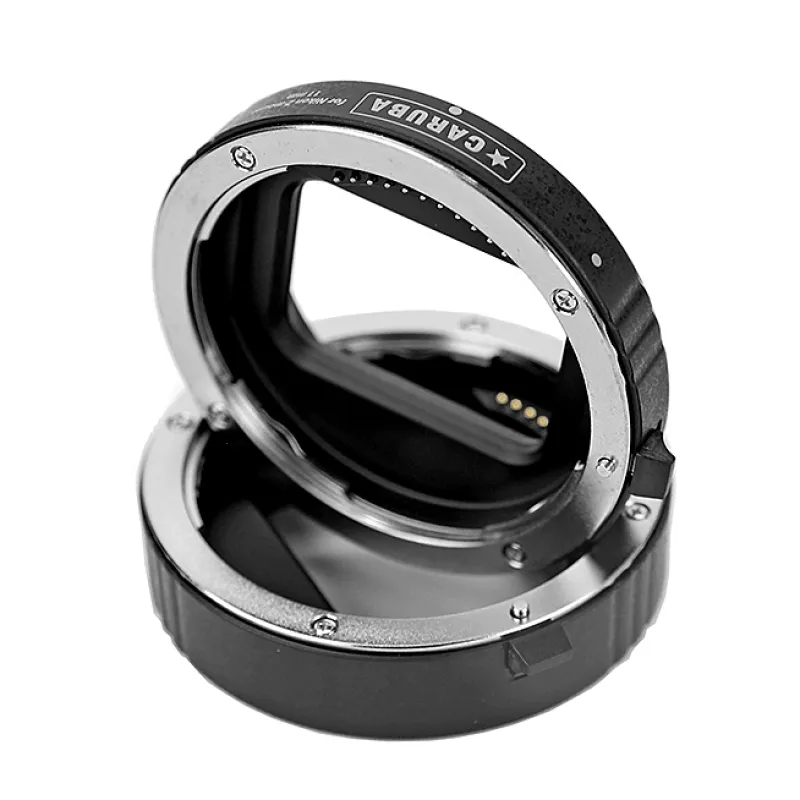

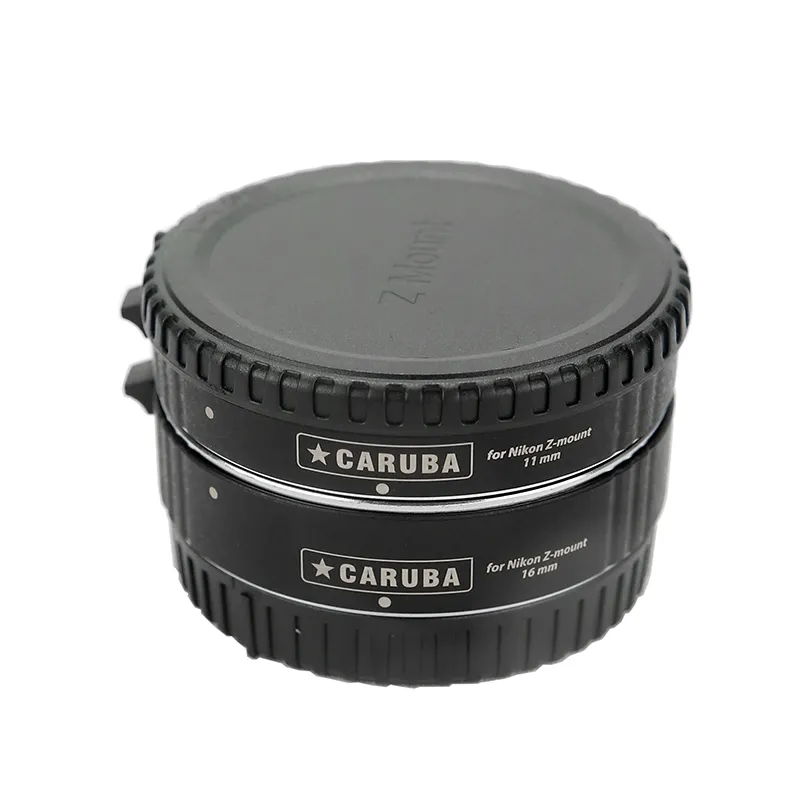

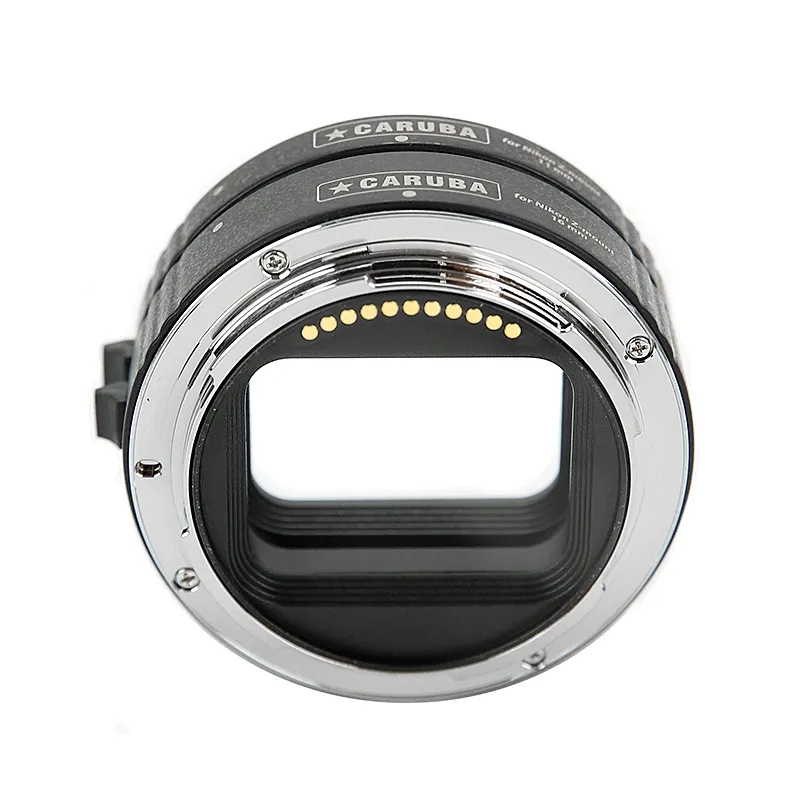

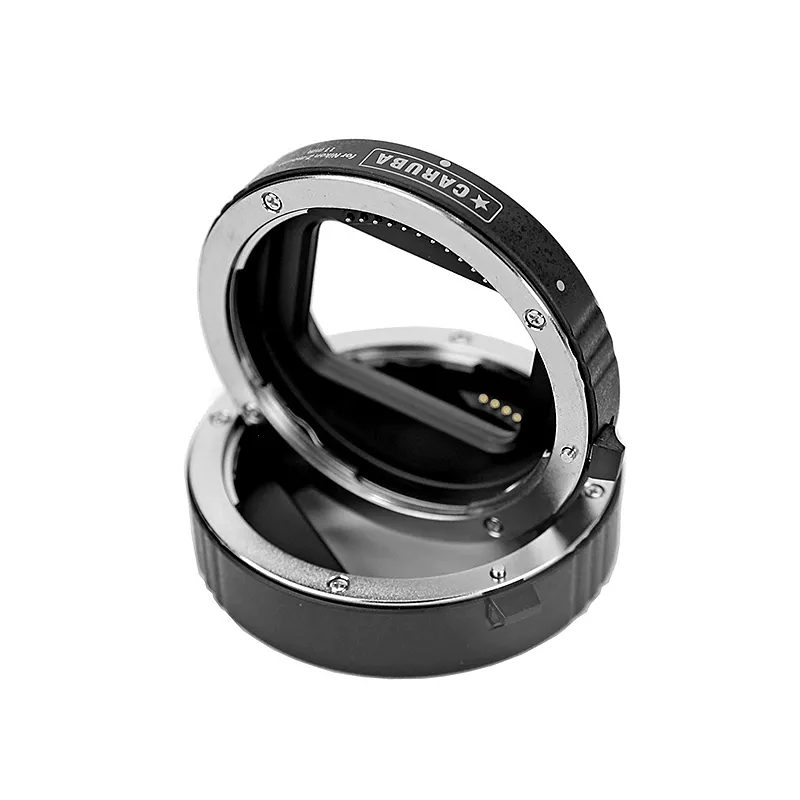

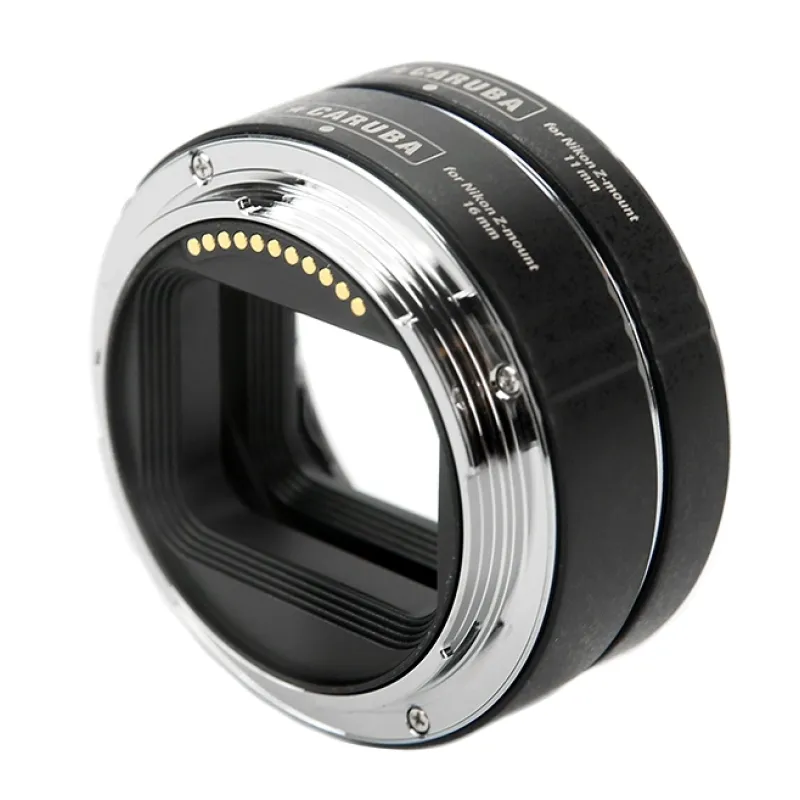

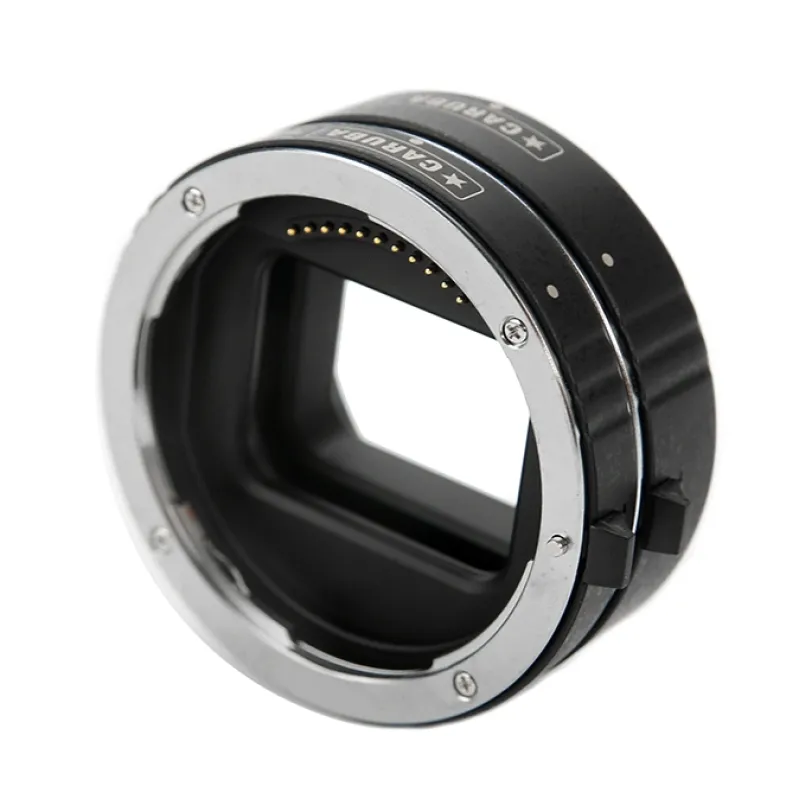

The Caruba Extension Tube Set Nikon Chrome (Type II) is designed for Nikon Z mount cameras and lenses. This set includes three extension tubes with chrome mounts that can be used individually or combined to achieve greater magnification and closer focusing distances without any optical elements, ensuring no degradation in image quality.

Functionality and Usage

Extension tubes, also known as spacer rings, increase the distance between the camera's image sensor and the rear element of the lens. This reduces the minimum focusing distance of the lens, allowing you to focus closer to your subject and capture larger images, ideal for macro photography and detailed close-ups.

Compatibility and Features

• Compatible with Nikon Z mount lenses
• Maintains autofocus and TTL light metering functions
• Manual focusing is recommended due to the tight focus range
• Chrome mount construction for durability
• 3-year warranty included

Technical Details and Magnification Calculation

The magnification factor with an extension tube can be calculated as:

Maximum magnification with spacer ring = lens magnification factor + (mm spacer ring / focal length)

For example, with an 85mm lens having a base magnification of 0.13:

• With 12mm tube: 0.13 + (12 / 85) = 0.22
• With 20mm tube: 0.13 + (20 / 85) = 0.37
• With 36mm tube: 0.13 + (36 / 85) = 0.55
• Combined 68mm tubes: 0.13 + (68 / 85) = 0.93

Note: Using all three tubes stacked results in approximately 2 stops of light loss.

Included in the Box

• 1 x 12mm extension tube
• 1 x 20mm extension tube
• 1 x 36mm extension tube
• 1 x lens cap
