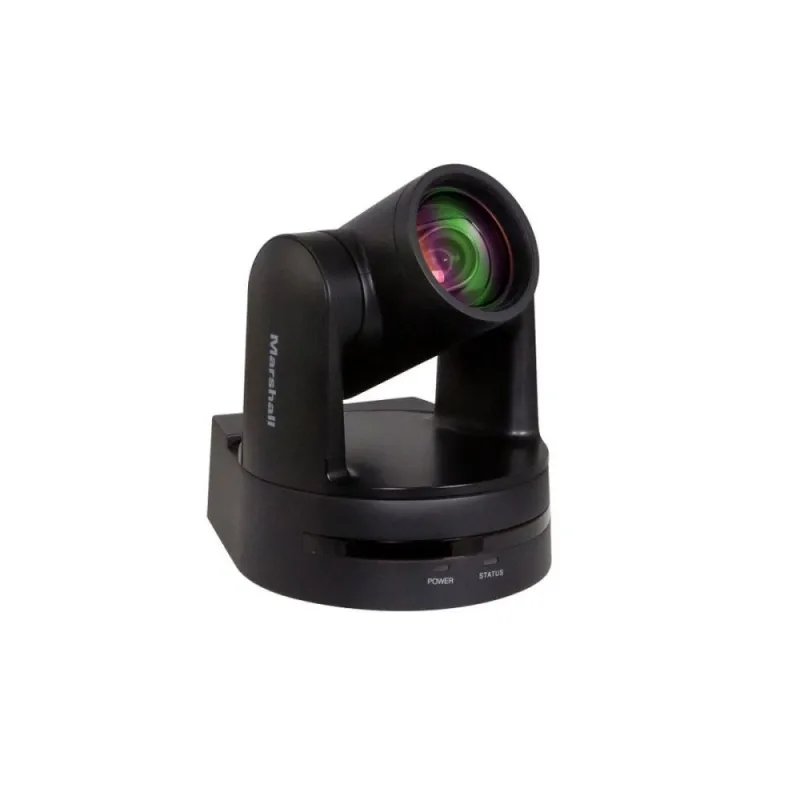

Marshall Electronics CV612-TBI

Product ID: 12391
€ 1189,95 tax incl.

Delivery in 13 - 24 business days

SKU: 12391
Condition: New product
Manufacturer: Marshall
1189.95
Leasing calculator
Leasing calculator
Payment period
3
6
12
24
36
Monthly, €
no
Discover related products
Discover related products

AI assistant AI ASSISTANT CHAT

This is the beta version of our new assistant chat, capable of answering both standard and advanced questions about product and store operations.

Or ask about:

What are the features? Is this in stock? Actual discounts & offers?
Type of ProductPTZ Camera
CMOS Sensor2K (2048 x 1080)
ColorBlack
Video ResolutionHD 1080
Optical Zoom20x
Video InterfaceHDMI
FeaturesSmart Face Recognition
PoE TechnologyPoE+
Angle Of View60 Degree
How to buy goods on lease?

  • 1. Evaluate your options.
  • 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
  • 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
    We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
    Manager will check the availability of the items in the cart and send the loan application link.
  • 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
  • 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
  • 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
  • 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
  • *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
    **The sequence of leasing steps is the same for leases offered by InCredit Group.
    ***In case of doubt, contact our consultants!

    When using leasing services, carefully evaluate your options to repay the loan!
    • Lease
send a message

Quick order


Available from warehouse

You can enter the delivery address and/or company details and any other necessary information here.

Write a review

Marshall Electronics CV612-TBI

Marshall Electronics CV612-TBI

Write a review

Product details

Marshall Electronics CV612-TBI

The Marshall CV620-BTI/WTI features three tracking modes that automatically keep faces in focus. Key specifications include:

  • New Sony IMX327 sensor
  • Full HD resolution
  • Simultaneous output via SDI, HDMI, and IP port
  • Smooth motion during slow movements
  • Dynamic operations with pan/tilt up to 300 per second

Tracking Modes

  1. Everywhere Tracking: Free tracking of multiple persons, selectable via web interface.
  2. Partition Tracking: Switch between presets for presentations in front of different panels.
  3. Stage Tracking: Sideways movement without zooming for stage presentations.

Smart Face Recognition

Ensures the face remains in focus regardless of the persons position in the room.

Available Colors

  • Black (CV620-BI)
  • White (CV620-WI)

Sensor & Lens

  • Sony IMX327, 2 Megapixel (1/2.8)
  • 20x optical zoom (5.3-110mm)
  • AOV 60 (Wide) to 3 (Tele)
  • Minimum illumination: 1.0 lux (F1.6, 30fps)

Resolution and Frame Rates

  • 1920 x 1080p (up to 60 fps)
  • 1280 x 720p (up to 60 fps)

Connectivity

  • IP, 3G-SDI, HDMI, RS232, RS422
  • 3.5mm Audio Input with Passthrough

Control

  • Protocols: ONVIF, VISCA, PELCO D
  • Panning Speed: 120/second
  • Panning Angle: 170

Video Stream & Compression

  • Formats: RTSP, RTMP, RTMPS, SRT, MPEG-TS
  • Compression: H264, MJPEG

Image Settings

  • Image Flip (horizontal, vertical)
  • Focus System (Auto, Manual)
  • Gain Control (Auto/Manual)
  • White Balance (Auto/Manual)
  • Exposure Control (Auto/Manual)

Audio

  • Input: Line/Mic
  • Output: Ethernet/SDI/HDMI

Dimensions & Weight

  • 185mm x 186mm x 174mm
  • Weight: 1.9kg

Power Supply

  • DC 16W max.
  • PoE+ 18W max.

Delivery Content

  • Camera
  • Adapter plate for ceiling mounting
  • IR Remote
  • Power Supply and Power Cord
