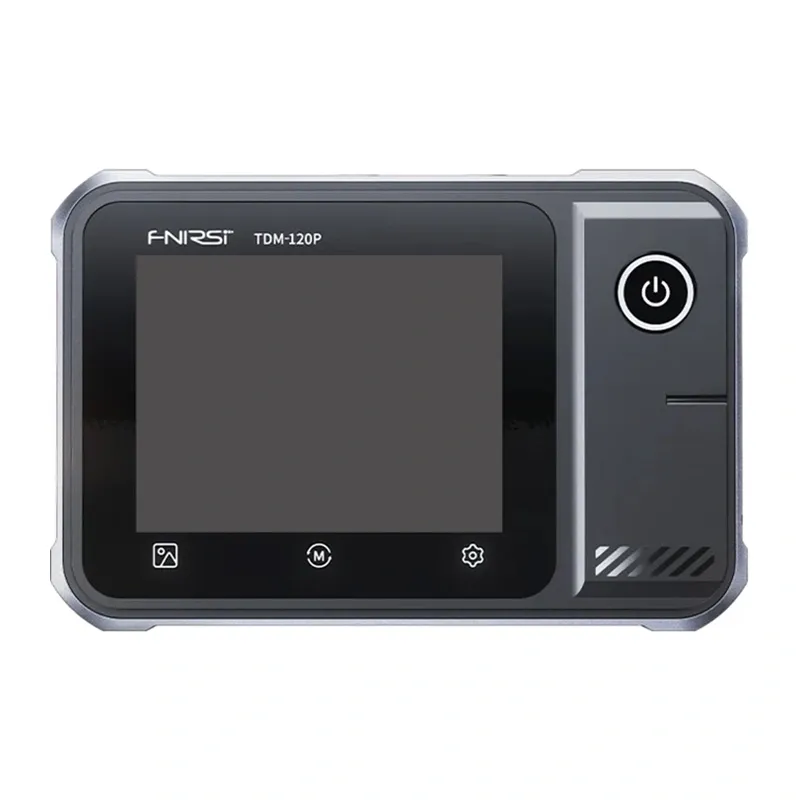

FNIRSI TDM-120 Thermal Imaging Camera
AI ASSISTANT CHAT
Or ask about:
The FNIRSI TDM-120 is a compact thermal imaging camera for inspecting and diagnosing electronic devices, electrical systems and other applications. Its 2.8-inch touchscreen LCD and intuitive controls make it easy to configure and use at a workbench or in the field.
Thermal imaging and temperature measurement
The camera uses a vanadium oxide detector with an infrared resolution of 120 × 90 and a 50° field of view. It measures temperatures from −20°C to 400°C, with an accuracy of ±2°C or ±2% of the maximum measured value. The display can show the centre-point temperature and automatically track the highest and lowest temperatures. High- and low-temperature alarms are supported, and emissivity is adjustable from 0.01 to 1. Temperature units can be set to °C or °F.
Display and operation
The 2.8-inch touchscreen provides a clear view of thermal images and measurement information. The camera supports a refresh rate of up to 25 Hz and offers several colour palettes: Arctic, Red-Hot Iron, Iron Red, Rainbow, Lava, Red-Hot Black and Red-Hot White. The interface is available in Chinese and English. Its compact design makes the camera easy to transport and convenient to use outside the laboratory.
Applications
The FNIRSI TDM-120 is suitable for inspecting electrical panels, heating systems and electronic equipment, as well as for repair work, module testing and research and development. It can be used by electronics and service technicians, engineers, students and electronics enthusiasts.
Specifications
- Manufacturer: FNIRSI
- Model: TDM-120
- Detector type: Vanadium oxide
- Infrared resolution: 120 × 90
- Field of view: 50°
- Screen: 2.8-inch touchscreen LCD
- Refresh rate: ≤25 Hz
- Temperature range: −20°C to 400°C
- Temperature display: Centre point, automatic tracking of highest and lowest temperatures
- Temperature units: °C / °F
- Accuracy: ±2°C or ±2% of the maximum measured value
- High/low temperature alarm: Supported
- Emissivity: 0.01–1, adjustable
- Languages: Chinese / English
- Colour palettes: Arctic / Red-Hot Iron / Iron Red / Rainbow / Lava / Red-Hot Black / Red-Hot White
Included in the set
- TDM-120 thermal imaging camera
- USB data cable
- User manual
