Manfrotto FF3214B Rail Mounting Bracket with M12 Stud

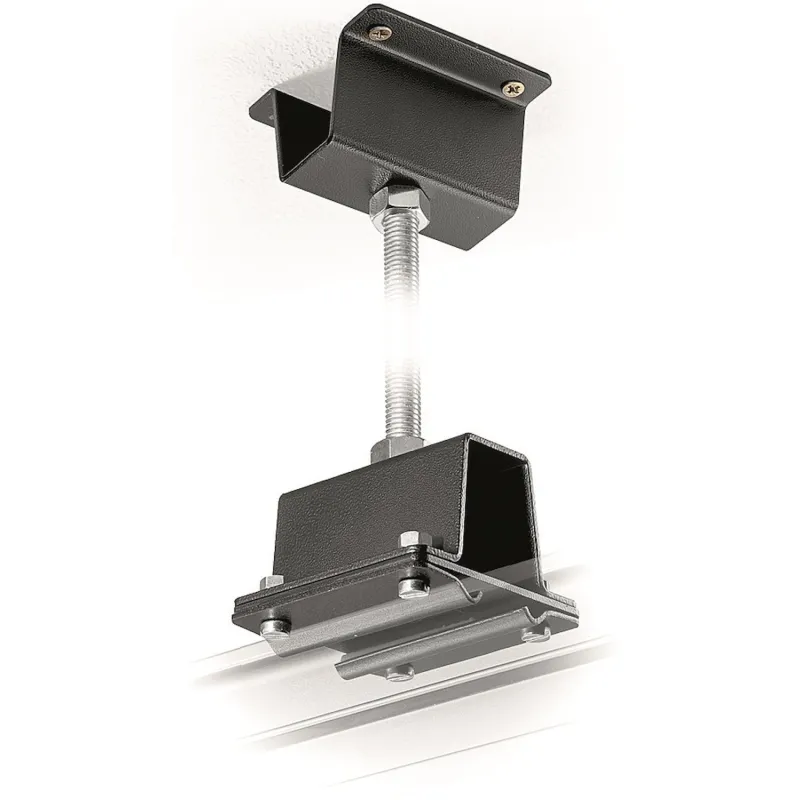

The Manfrotto FF3214B is a complete ceiling mounting kit for the Sky Track / Top System FF6000 overhead rails. It includes a heavy-duty top plate with 4-screw fixing, a 1 m fully-threaded M12 rod that can be cut to any desired drop length, four M12 nuts, and the lower rail bracket. The double-nut system allows for precise leveling of the entire rail run, making it ideal for permanent studio installations.

This ready-to-install ceiling suspension kit securely attaches to joists or concrete, ensuring stability. The 1 m M12 threaded rod can be easily adjusted, and final leveling is achieved by tweaking the nuts at each bracket, which is critical for smooth pantograph and carriage movement. One kit is required approximately every 2 m and at every rail joint when using FF3208 connectors.

Key Features

• Complete ceiling-to-rail suspension kit
• 1 m fully-threaded M12 rod (cut to required drop)
• Heavy-duty top plate with 4-screw fixing
• Double-nut system for precise rail leveling
• Essential for permanent Sky Track / Top System installations
• Supports fixed rails every 2 m and at every joint

• Model: Manfrotto FF3214B
• Compatibility: Sky Track / Top System FF6000 fixed rails
• Rod: 1 m M12 fully threaded (cuttable)
• Fixing: 4-screw top plate + lower rail bracket
• Nuts: 4 M12
• Weight: 1 kg
• Max spacing: 2 m between brackets
