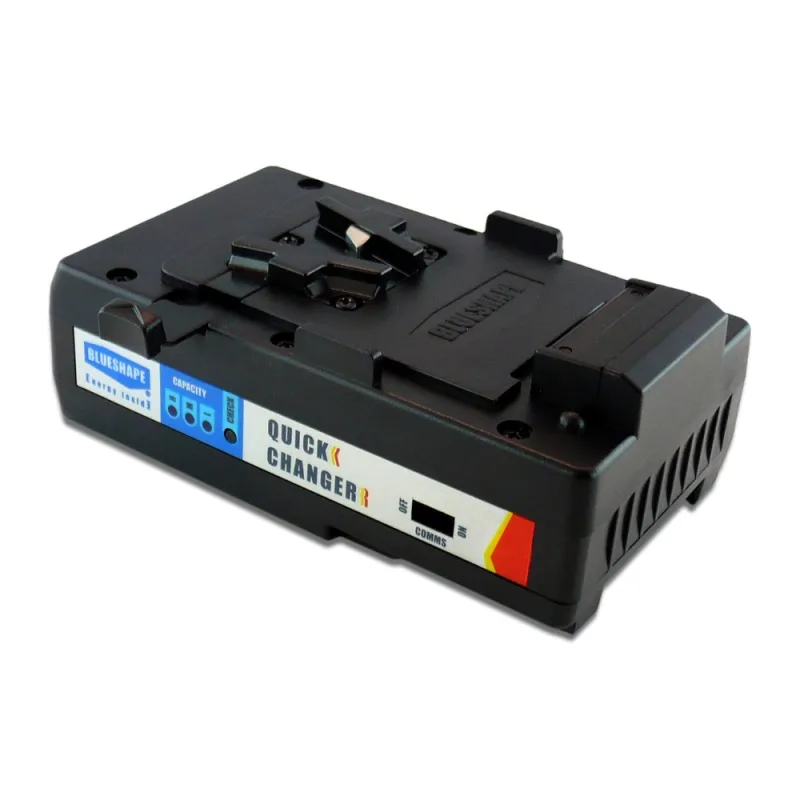

Blueshape MVQUICK HOT-SWAP UPS backup battery NCVQUICK

Rated 3.8/5 based on 1 customer reviews

30995 tax incl.

Pre-order. Delivery time from 3 weeks.

38332
NCVQUICK
8032774985544
Blueshape

New product

possibly after 05.06.2024
Pickup in store
Free
possibly after 05.06.2024
Postbox (Omniva, DPD, Venipak)
Free
possibly after 05.06.2024
Courier (Omniva, DPD)
from 10 €
possibly after 05.06.2024
Bike delivery (in Riga only)
from 7 €
309.95
Leasing calculator
Payment period
3
6
12
24
36
Downpayment,
Monthly,
no

MVQUICK is a hot swap system to be installed as a battery interface between the camera (or any other V-lock compatible device) and the battery pack. The main purpose is to allow camera battery replacement without any power interruption through an automatic detection of the battery removal. See the principles of operation.
Additionally, MVQUICK provides an alternative power source of about 21Wh to be used as UPS in case of a sudden power failure or extended power requirements. The high-load cell technology permits discharging of up to 10A when used as a stand alone power source.


Automatically recovers a part of the energy spent during the hot swap period upon reinstatement of a fresh battery, and due to this features allows several hot swap operations without needing any further charge.
If used as UPS device, it can be charged normally on standard Vlock chargers.
MVQUICK is designed to work perfectly with cameras using BLUESHAPE battery communication protocol.


Blueshape MVQUICK


  • Nominal Voltage: 14.8V
  • Voltage range: 10.8V ~ 16.8V
  • Nominal Capacity: 1.5Ah, 21Wh
  • Max. discharge current: 10A
  • About up to 10~15 minutes runtime when used standalone as an UPS backup battery
  • Installable on any V-Lock enabled device
  • Self charging through the installed battery, can be charged also on any V-Lock chargers
  • Allow data communication from battery to camera
  • Size: 142 x 83 x 50mm (5.59" x 3.27" x 1.97")
  • Weight: 0.49Kg (1.08lbs)
  • NEW: enhanced contact protection for safer air transport
