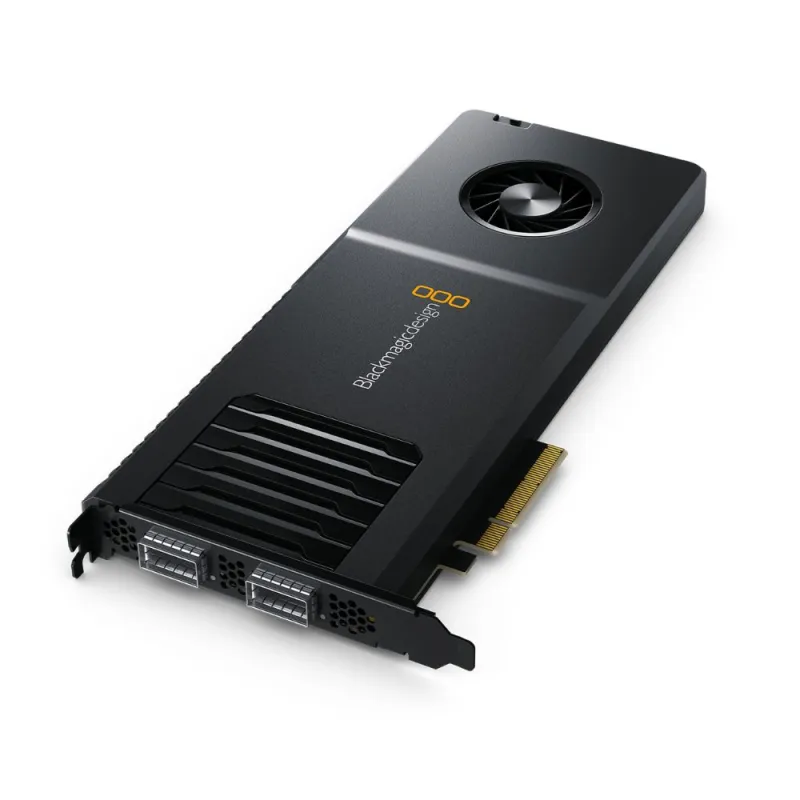

Blackmagic Design DeckLink IP 100G PCIe Video Capture Card BDLKIPHIP/100G
AI ASSISTANT CHAT
Or ask about:
| Type of Product | Blackmagic Design |
| Connector | other |
| Connector | SDI |
- 1. Evaluate your options.
- 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
- 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
Manager will check the availability of the items in the cart and send the loan application link. - 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
- 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
- 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
- 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
- *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
**The sequence of leasing steps is the same for leases offered by InCredit Group.
***In case of doubt, contact our consultants!
When using leasing services, carefully evaluate your options to repay the loan!Lease
DeckLink IP 100G Overview
DeckLink IP 100G is a PCIe Gen 4 card designed for capturing and playing back up to 8 channels of Ultra HD video in SMPTE-2110 IP-based broadcast systems. It features two QSFP28 fiber optic 100G Ethernet ports for full redundancy or connection to separate switches, with availability expected in July 2025.
This card includes built-in cooling and supports GPUDirect RDMA for efficient memory transfer between the DeckLink and GPU, significantly reducing latency. It records and plays back high-quality formats like Apple ProRes and uncompressed 10-bit video, supporting all SD, HD, and Ultra HD standards up to 2160p120.
The IP10 open standard codec minimizes bitrate for TV standards 2160p59.94 and 2160p60 with only 8 samples of latency. This compact codec uses minimal FPGA resources, keeping SMPTE-2110 IP video products affordable.
Compatibility and Software
DeckLink IP 100G is compatible with popular video software, making it ideal for DaVinci Resolve for editing and color correction in SMPTE-2110 systems. It supports simultaneous recording and playback, allowing for live grading. It also works with Final Cut Pro, Media Composer, Premiere Pro, and more.
Connection
- 100G Ethernet ports: 2x 100Gb/s QSFP28 connectors
- PCI Express: 8 lines, generation 4 (compatible with PCIe slots 8x and 16x)
- Power: Auxiliary power connector 6pin (2x3)
Supported Codecs
- AVC-Intra, AVCHD, Canon XF MPEG2, DVCPRO50, DNxHR, Apple ProRes (various formats), Uncompressed 8-bit and 10-bit video
Package Includes
- DeckLink IP 100G
- Welcome pack with QR code for software download
