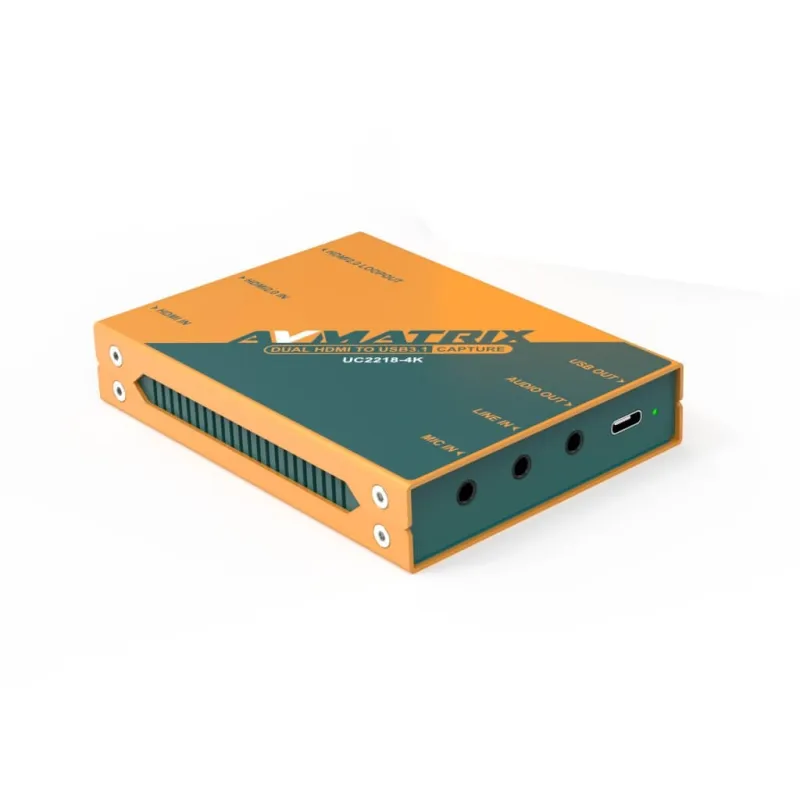

Dual HDMI Input Capture Device with USB 3.1 Type-C Output
The AVMATRIX UC2218-4K is a professional external capture device designed to capture two HDMI video sources simultaneously. It features dual HDMI inputs and a USB 3.1 Gen 1 (USB 3.0) Type-C output for high-speed video transmission to a computer or streaming device.
Key Features
- Inputs: 4K HDMI, HDMI input, and Mic/Line audio input
- Outputs: 4K HDMI loop-out for monitoring, USB 3.1 Gen 1 (USB 3.0) Type-C output, and audio output
- Video Support: Automatic input signal detection supporting up to 4K at 60Hz
- Simultaneous Capture: Capture two HDMI video and audio streams at the same time
- Uncompressed Capture: Supports uncompressed video and audio capture compliant with UVC (USB Video Class) and UAC (USB Audio Class) standards
- Plug-and-Play: Driver-free and power-free operation for easy setup
- Compatibility: Works with Windows, Linux, and macOS operating systems
- Software Support: Compatible with popular streaming and conferencing software such as OBS, Zoom, Microsoft Teams, Twitch, and Vmix
Usage and Applications
This capture device is ideal for streamers, broadcasters, and business professionals who require simultaneous capture of two HDMI video sources with high-quality audio. The 4K HDMI loop-out allows for real-time monitoring on an additional 4K display while streaming or recording. Its plug-and-play design ensures quick setup without the need for additional drivers or power adapters.
Technical Specifications
- Input Signals: 4K HDMI, HDMI, Mic/Line audio
- Output Signals: 4K HDMI loop-out, USB 3.1 Gen 1 Type-C, audio out
- Maximum Resolution: Up to 4K at 60Hz
- Video Capture: Uncompressed video and audio capture compliant with UVC and UAC
- Operating Systems: Windows, Linux, macOS
- Software Compatibility: OBS, Zoom, Teams, Twitch, Vmix, and others
- Power: USB bus powered, no external power supply needed
Additional Information
The device supports automatic detection of input signals and provides high-quality video capture suitable for professional live streaming, video conferencing, and recording applications. Its dual HDMI inputs and loop-through output enable flexible multi-screen monitoring and production workflows.
