RGBlink Mini Edge SDI is a 10-channel video switcher with 4K HDMI, 3G SDI inputs, embedded 5.5-inch monitor, NDI streaming, and PTZ camera control.
RGBlink Mini Edge SDI Video Switcher
Product ID: 25001
SKU: 25001
Model: 230-0008-01-0
Ean: 6976965941112
Condition: New product
Manufacturer: RGBlink
Discover related products
Discover related products
AI ASSISTANT CHAT
This is the beta version of our new assistant chat, capable of answering both standard and advanced questions about product and store operations.
Or ask about:
What are the features? Is this in stock? Actual discounts & offers? Product reviews?
| Type of Product | Video Mixer |
| Accessories for video cameras | iekārtas |
How to buy goods on lease?
- 1. Evaluate your options.
- 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
- 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
Manager will check the availability of the items in the cart and send the loan application link. - 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
- 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
- 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
- 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
- *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
**The sequence of leasing steps is the same for leases offered by InCredit Group.
***In case of doubt, contact our consultants!
When using leasing services, carefully evaluate your options to repay the loan!Lease
Product details

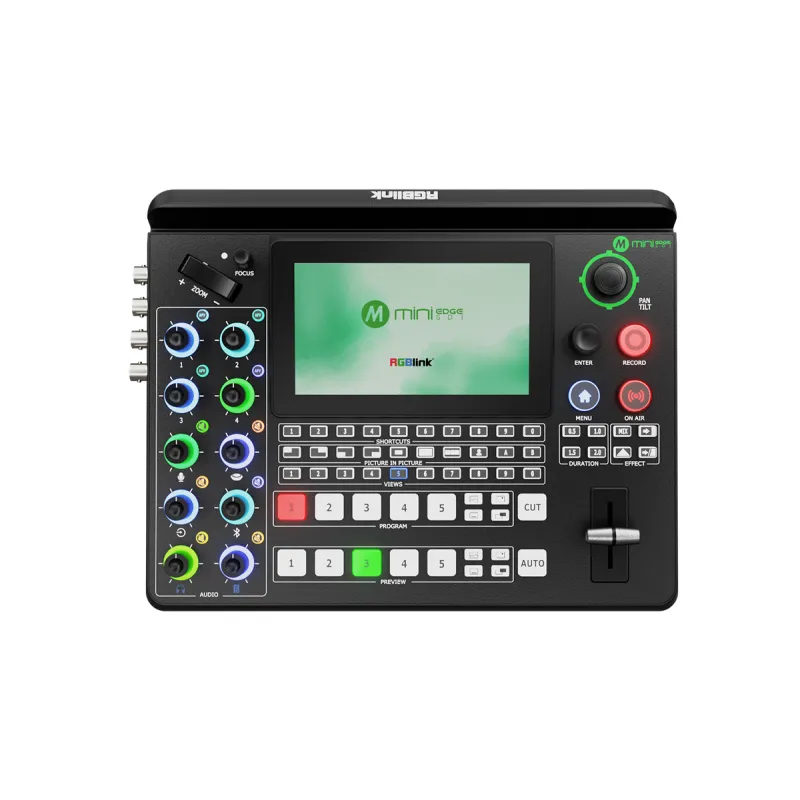

RGBlink Mini Edge SDI Production Mixer
10 Channel All-in-One Switcher
The RGBlink Mini Edge SDI is a compact production mixer featuring four 4K HDMI 2.0 inputs and four 3G SDI inputs, along with one UVC and one NDI bi-directional input and output. It supports digital embedded audio and video signals from PCs, cameras, and other sources. Additionally, it includes analog audio inputs: 1x Phantom power, 1x Line in, 1x Mic, and Bluetooth audio support.
Key Features
- Embedded 5.5-inch TFT monitor for menu operation and multiviewer video display
- 10 input connectors: 4x HDMI 2.0, 4x 3G-SDI, 2K UVC, and 2K NDI
- Supports streaming with NDI | HX2 protocol
- Streaming and management via RGBlink TAO Cloud platform
- 6-channel customizable video inputs
- Manual real-time PTZ camera control (zoom, rotation, focus) via VISCA or NDI
- Maximum 8 channels for audio mixing
- 2-channel independent HD HDMI outputs
- Third-party control and integration through free RGBlink Central Control Protocol
- 2K streaming and live broadcast via IP and UVC
Outputs and Connectivity
- Two separate HDMI outputs for multi-viewer preview, program, or test pattern
- One USB 3.0 output supporting YUY2 and MJPEG capture formats, recognized as a webcam for streaming to platforms like Facebook, YouTube, and Zoom
- UVC bi-directional port for USB disk recording or wireless audio devices such as RGBlink AI mini wireless speaker or microphone
- Ethernet port with NDI license enabled for simultaneous NDI encoding and decoding
Additional Features
- Compared to the Mini Edge model, the Mini Edge SDI adds four more 3G SDI inputs and includes noise reduction for audio inputs
- Features dynamic output control, multi-view preview, picture-in-picture, chroma key, luma key, transitions, and onboard PTZ camera controls
- Web app ready and integrated with TAO Cloud for remote control and simultaneous restreaming to at least four content platforms
Included in the Box
- 1 x Mini Edge SDI device
- 1 x USB-C Cable with Adapter
