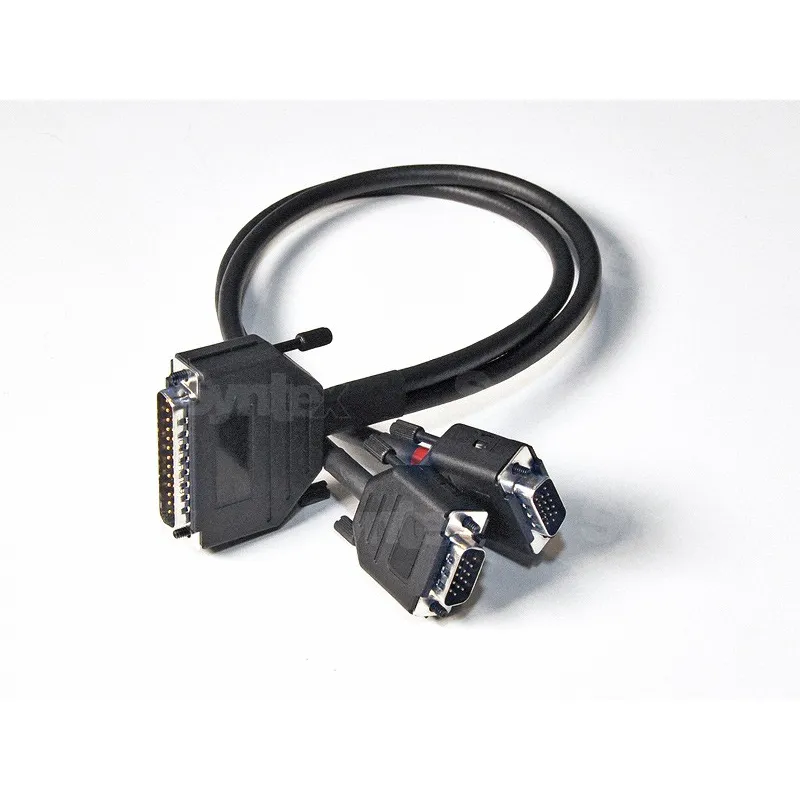

Syntex Blackmagic ATEM to Datavideo ITC-100/300 GPI & Tally Cable, 50cm KAT-3626

Custom Made Connection Y Cable

This custom-made connection Y cable is designed for Blackmagic Design ATEM switchers and Datavideo ITC-100 and ITC-300 intercom systems. With this cable, you can send Tally signals when switching on the Blackmagic ATEM switcher through the ITC-100/300 intercom to connected beltpacks. It is the perfect solution for live events, live streaming shows, local TV broadcasters, and other occasions where Tally lights are needed.

Features

• Flexible Canare RJC5ES-4P-BS cable for easy connection between switcher and intercom.
• Approximate length of the cable is 50cm (20 inches).

Connections

Connection to Blackmagic ATEM switchers is made via the Blackmagic Design GPI & Tally Interface (required unit) using a 25-pin male connector. The connection to the Datavideo ITC-100/300 intercom system is done through two 15-pin connectors

• Connection A (red color) to Tally A Input
• Connection B to Tally B Input
