Canare BCP-A4F 75 Ohm BNC Male Crimp Connector CNRBCPA4F
Product ID: 212
SKU: 212
Model: CNRBCPA4F
Ean: 0000000000000
Manufacturer: Canare
Condition: New product
Discover related products
Discover related products
AI ASSISTANT CHAT
This is the beta version of our new assistant chat, capable of answering both standard and advanced questions about product and store operations.
Or ask about:
What are the features? Is this in stock? Actual discounts & offers?
| Type of Product | Cables |
| Connections | BNC to BNC |
Product details
Canare BCP-A4F

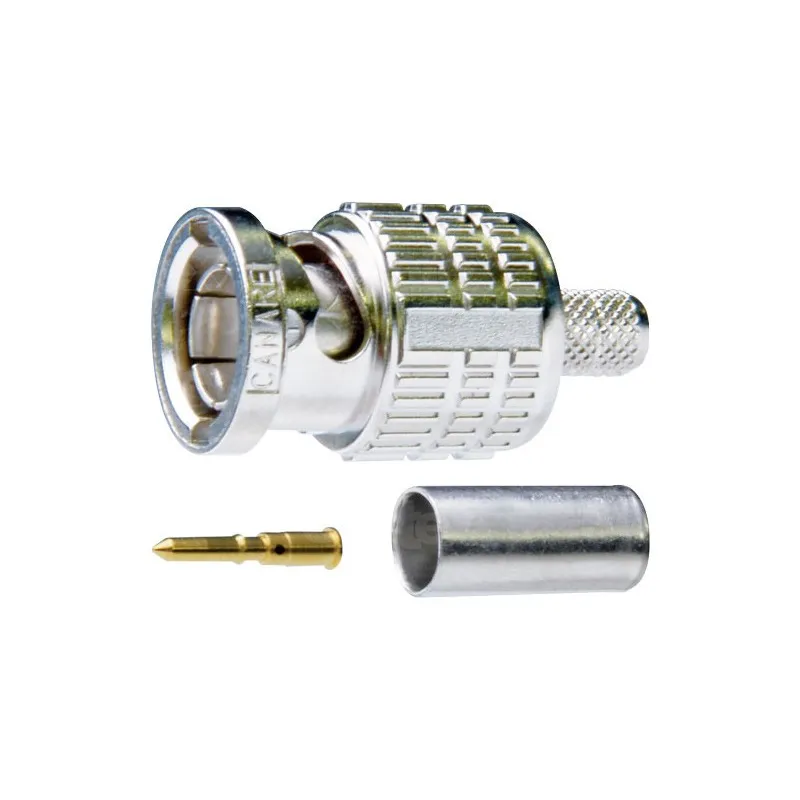

Canare BCP-A4F is a 75 ohm BNC (M) crimp connector (straight type) designed with an extended body for better handling.
Compatibility
Suitable for Canare installation cables:
- L-4CFB
- L-4CHD
- V*-4CFB
Also compatible with other manufacturers cables:
- 1505A
- 1505ANH
- 8212
- 8241F
- 9167
- 9259
- 9659
- VPM2000
- HD PRO 0.8/3.7 AF
Usage
- Compliant with SMPTE 424M & 292M specifications
- HDTV
- HD/SD-SDI video
- PAL & NTSC analog video
- Satellite applications
- TELCO
- Test equipment
Features
- True 75 ohm design with crimp pin and sleeve
- High power 1.1 or less VSWR (Voltage Standing Wave Ratio) up to 3GHz
- Extended body for better handling
- Position mark on the body allows for easy inspection of the connector
- Excellent cable grip
- Gold plated central pin
- Connector body is die-cast, achieving lower cost at high performance
- Easy assembly using the Canare crimp tool
