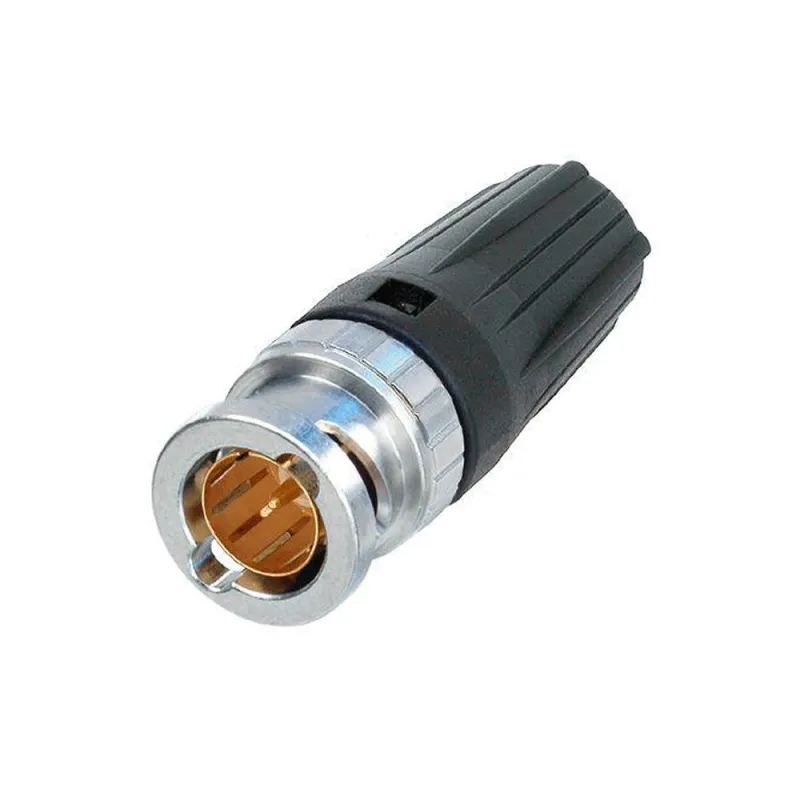

The rearTWIST HD BNC cable connector offers a true 75 Ω design and is perfectly suitable for HD applications.
The patented rearTWIST boot guarantees easy access even in high density applications and offers color coding.

Neutrik NBNC75BWU13 rearTWIST HD BNC connector NBNC75BWU13

Product ID: 49077
€ 8,86 tax incl.

Delivery in 5 - 7 business days

Available from supplier: 18 Items

SKU: 49077
Model: NBNC75BWU13
Ean: 7613187002595
Manufacturer: Neutrik

Condition: New product
