Canare L-4CFB installation coaxial SDI cable, metrage CNRL4CFB

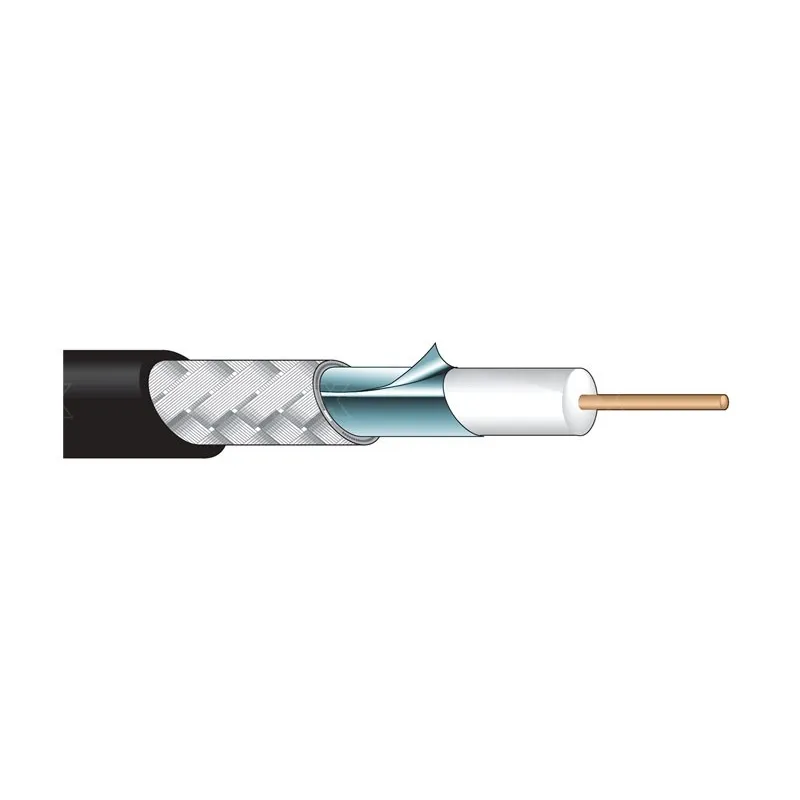

Canare L-4CFB is a 3G/HD/SD-SDI "low loss" 75 ohm coaxial cable with a central copper wire conductor, a tightly woven tinned copper braid and an aluminum foil with excellent shielding capability. The Canare L-4CFB cable is suitable for fixed installations.

Usage:

• HD-Serial Digital Video
• Satellite Technology
• HDTV
• Broadband equipment
• SMPTE 259M, 292M,424M

Features:

• Copper wire central conductor
• PE foam dielectric
• Tinned copper braid + 100% Alu foil
• Dielectric layers separated from conductor
• 100% precision coaxial cable - continuously variable frequency test

Specifications:

• Standard manufactured lengths: 100/200m
• Sheath diameter (overall diameter) in mm: 6.1
• Cable weight in kg/100m: 4.9
• Total diameter of central conductor in mm: 0.8
• Foam dielectric - diameter in mm: 3.7
• Resistance of central conductor in Ω/100m:3.6
• Resistance of outer conductor in Ω/100m:1,0
• Static capacitance in pF/m: 55
• Attenuation in dB/100m: 23,6
• Impedance in Ω: 75
