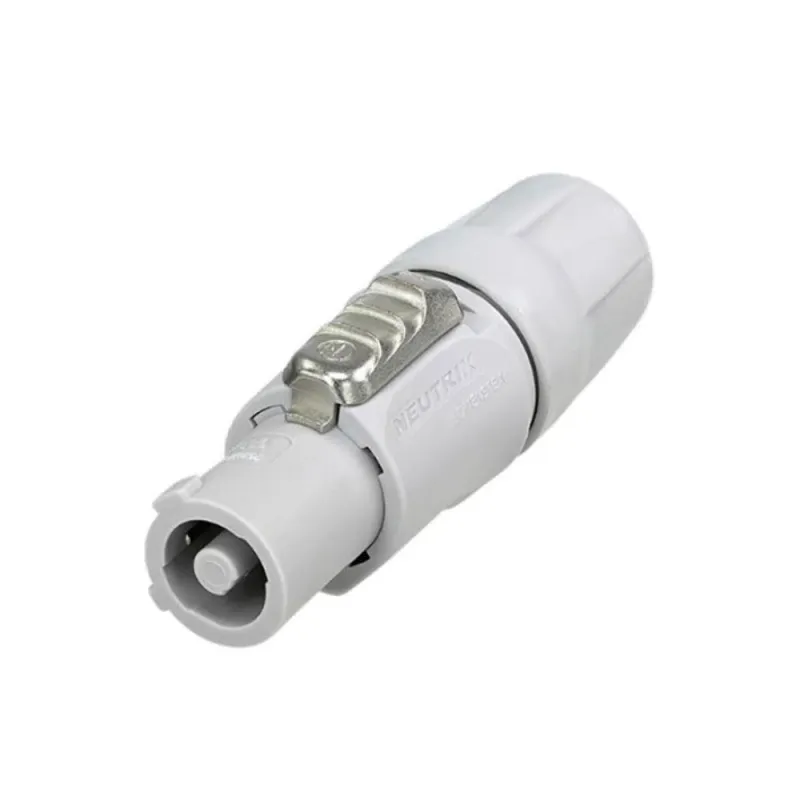

Neutrik NAC3FCB NAC3FCB

Lockable cable connector, power-out, screw terminals, grey

The powerCON is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.

Attention: The powerCON is a connector without breaking capacity, i.e. the powerCON should not be connected or disconnected under load or live!

The Powercon connector is designed for current up to 20A, offers a secure locking connection, compact design, and meets all current safety standards. This series offers a 3-pole connection including neutral and ground, and a compact design (it shares many of the components of the "Speakon" series of twist-lock speaker connectors, although they are of course completely incompatible!) The secure, cable strain-relief outlet design is designed for 5-15 mm diameter cables, and the locking is on the twist-lock principle (metal latch as with conventional "Speakon" connectors).

The cable connectors have screw terminals (max. conductor size 4 mm), the panel connectors have "Faston" 4.8 × 0.5 mm flat terminals. The NAC3MP panel connectors have standard straight mounting holes and are airtight. The -WOT variants are in a non-split insulated terminal design for use with larger insulated connector terminals.

The series has two variants: the A (in - input) and B (out - output) types. Both are similar but have different color coding to avoid confusion. This means that with the correct cable connectors it is impossible to create a short circuit.

Type A is designed for power supply, and its color coding is blue. Type B is for power outlets, and its color coding is gray.

Features

• AC cable connector with 20 A / 250 V latch lock
• 3 contacts, including neutral and ground contact
• Power-in (blue) and power-out (grey) versions with different coding to prevent confusion
• Quick and easy Twist lock locking system
• Extremely robust and reliable
• Ergonomic design
• User-friendly latch for easy handling
• Unique Neutrik type cable strain relief
• UL, cUL recognized components
• VDE certified
• SEV approved
• Unique hologram marking - guarantees a genuine and authentic Neutrik product

Technical specifications

Title: NAC3FCB
Gender: female

Electrical
Contact resistance: ≤ 3 mΩ
Dielectric strength: 4 kVdc / 2.8 kVac
Insulation resistance: > 0.1 GΩ (after damp heat test IEC 68-2-30)
Number of electronical contacts: 2 + PE
Rated current per contact: 20 A rms
Rated voltage: 250 V AC

Mechanical
Cable O.D.: 6 - 15 mm (1)
Lifetime: > 1000 mating cycles
Wiresize: 2,5 mm²
Wiresize: 12 AWG
Locking device: Quick Lock
(1): Cable O.D. range limited to 6 mm - 14 mm acc. VDE

Material
Contact plating: 4 µm Ag
Contacts: Bronze (CuSn6)
Insert: Polyamide (PA 6 30 % GR)
Locking element: Zinc diecast (ZnAl4Cu1)
Shell: Polyamide (PA 6 30 % GR)
Strain relief: Polyacetal (POM)

Environmental
Temperature range: -30 °C to +80 °C
