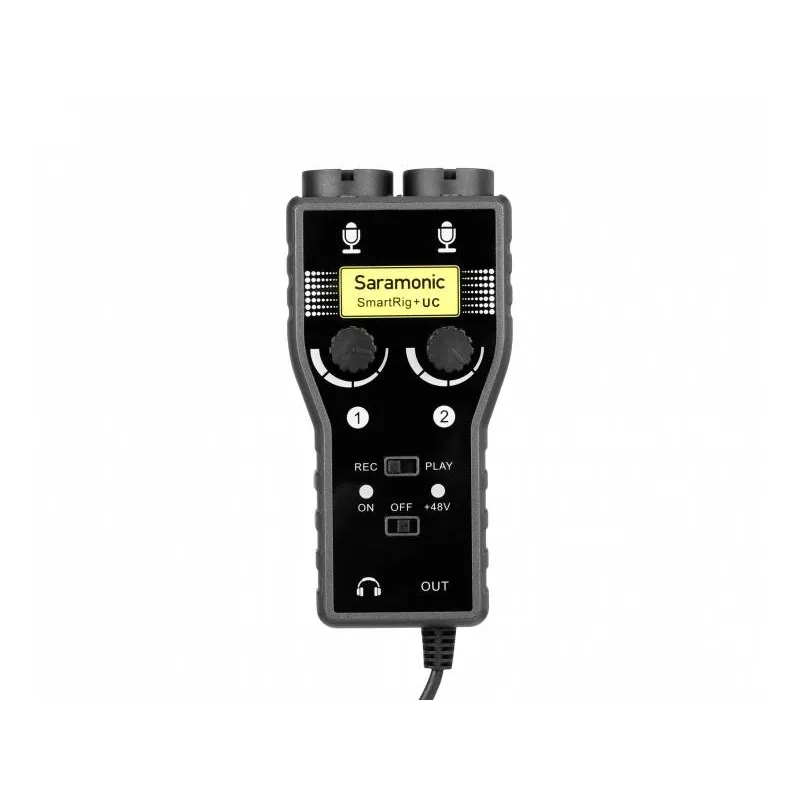

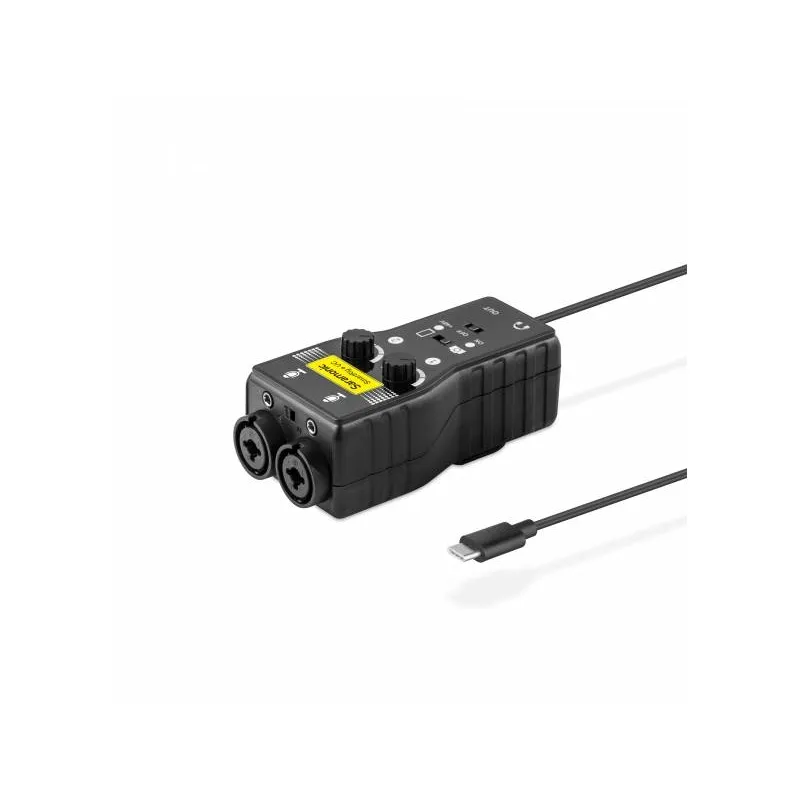

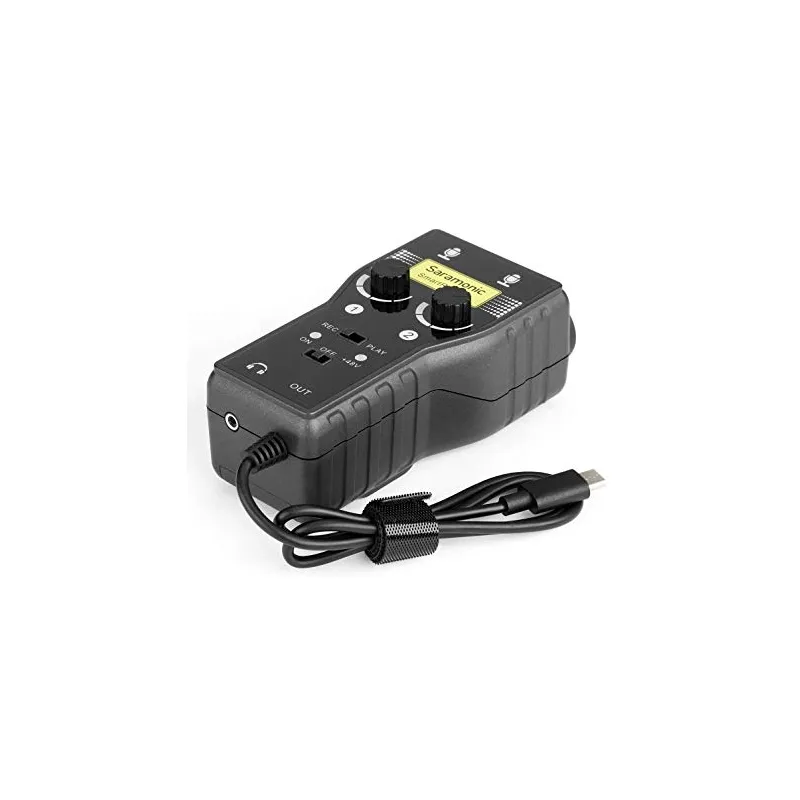

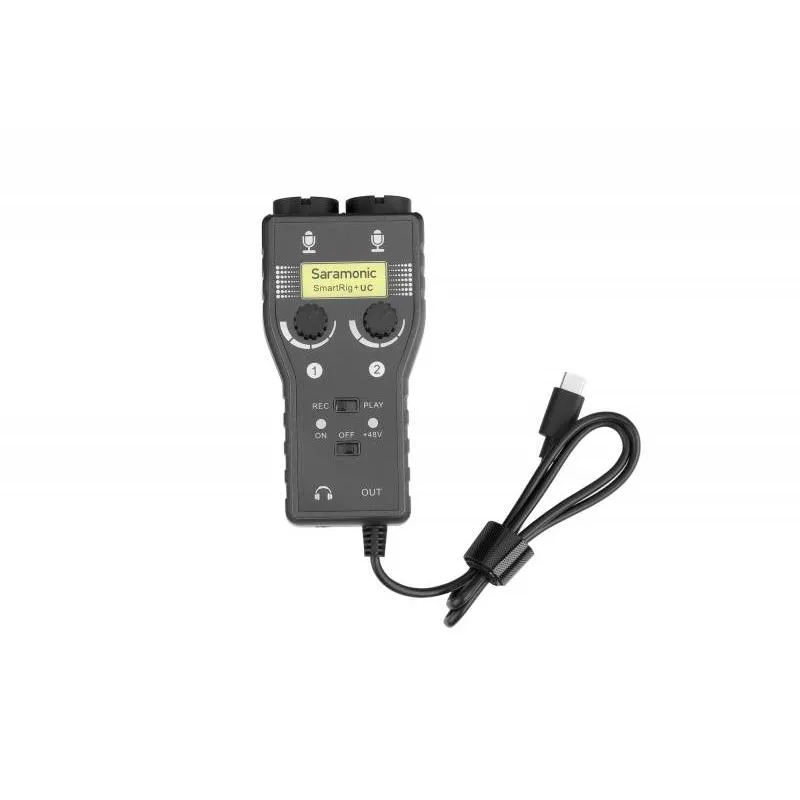

Saramonic SmartRig + UC audio adapter

Saramonic SmartRig UC + is an audio adapter which allows the use of any audio equipment with mobile devices equipped with USB Type C
SmartRig + UC has two inputs mini jack TRS (3.5 mm) and two XLR / TRS jack ( 6.35 mm), which allow you to connect a microphone, guitar or console. Support phantom power supply provides broad compatibility supported microphones. The output signal is transmitted to the smart phone or tablet using a USB cable C.
adapter allows independent control for both levels of channels and switching between stereo and monaural modes. It also has a headphone jack for listening to recorded sound in real time.
The interface device is well suited for situations which simultaneously record two sound sources, eg. the instrument and vocals.
The adapter is compatible with most mobile application stores.
The housing is made of high quality plastic. Tripod mount female (1/4 ") adapter allows installation on any photographic tripod mounts and many others.


Specifications • Power supply: 9 volt battery
• 48V phantom power < br /> • input
2 XLR / TRS jack (6.35 mm)
2 x mini jack TRS (3.5 mm)
• output: USB plug C type of cable, length 50 cm
• headphones: jack is TRS (3.5 mm)
• Frequency range: 20 Hz - 20 kHz (+/- 0.5 dB)

The Saramonic SmartRig+ UC is a two channel audio interface. It allows you to connect professional microphones/guitars to record quality sound or create music with your USB Type-C devices.

The USB Type-C connector allows you to record great stereo sound to your devices.

The SmartRig+ UC makes your recording work much easier. It provides 48V phantom power for microphones and 3.5mm headphone output for real-time monitoring.

The two gain control thumbwheels make it easy to set levels of each channel separately.

Key Features

• Two XLR mic inputs
• Two 1/4″ (6.35mm) guitar inputs
• Two 1/8″ (3.5mm) inputs
• Mono/Stereo switch (M/S)
• REC/PLAY switch
• +48V phantom power
• 3.5mm headphone output for monitoring
• Gain control
• USB Type-C connector for output
