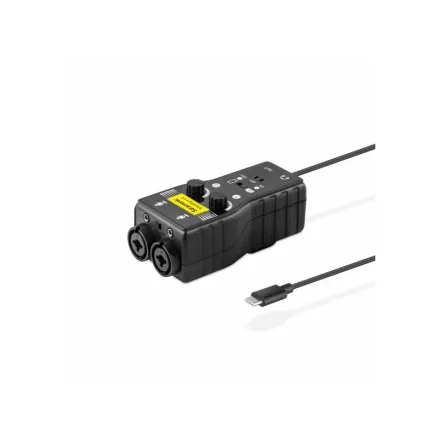

Saramonic SmartRig + UC audio adapter

Description

The Saramonic SmartRig+ UC is an audio adapter that allows you to use any audio equipment with mobile devices equipped with a USB Type C connector.

The SmartRig+ UC features two mini Jack TRS (3.5mm) inputs and two XLR / Jack TRS (6.35mm) inputs that allow you to connect a microphone, console or guitar. Phantom power support ensures wide compatibility of supported microphones. The output signal is transferred to a smartphone or tablet via a USB type C cable.

The adapter allows independent level control for both supported channels as well as switching between mono and stereo modes. It also features a headphone output for listening to recorded audio in real time.

The device’s interface is perfect for situations in which we record two sound sources simultaneously, e.g. an instrument and vocals.

The adapter is compatible with the majority of available applications in mobile shops.

The housing of the device has been made of high quality plastic. Female tripod mounting (1/4″) allows you to mount the adapter on any photographic tripod and many other mounts.

Specification

• power supply: 9 V battery
• power supply: phantom 48V
• signal inputs:
• 2 x XLR / Jack TRS (6.35 mm)
• 2 x mini Jack TRS (3.5 mm)
• signal output: USb type C plug with 50 cm long cable
• headphone output: mini Jack TRS socket (3.5 mm)
• frequency response: 20 Hz – 20 kHz (+/-0.5 dB)
• signal gain: 25 dBu to
• signal-to-noise ratio (SNR): 78 dB @ 1KHz, -30 dBu
• harmonic distortion (THD): less than 0.01% @ 1 kHz, -30 dBu
• sample rate: 44.1 KHz or 48 KHz
• dimensions: 12 x 4 x 4.2 cm
• weight: 130 g

Compatibility

• audio equipment equipped with XLR / Jack TRS (6.35 millimeter)/ mini Jack TRS (3.5 mm)output
• mobile devices equipped with a USB type C socket

Set contents

• SmartRig+ UC adapter
• pouch for the adapter
• velcro attachment
