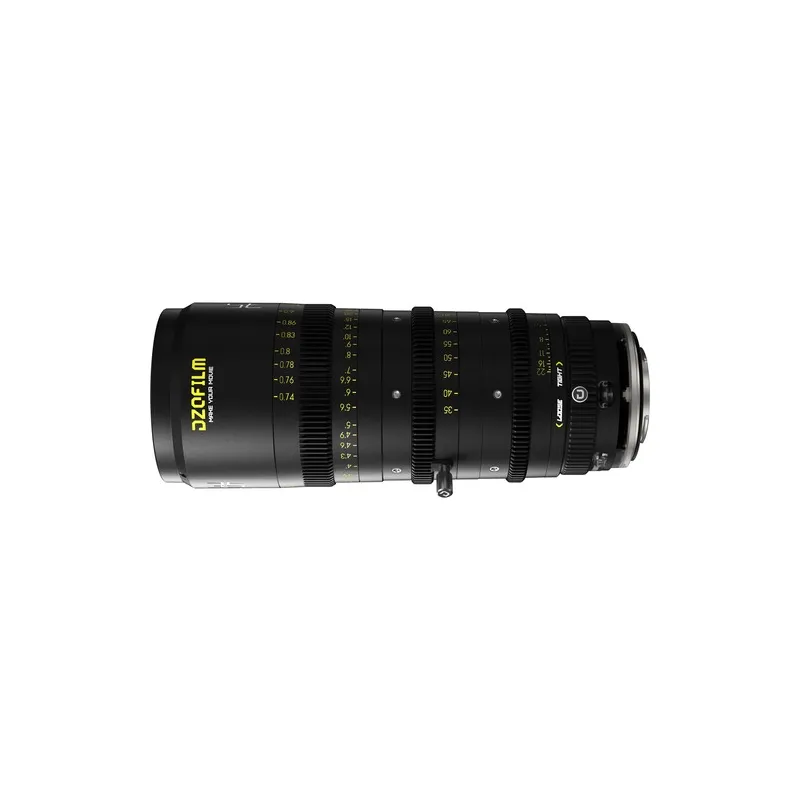

DZO Optics DZOFilm Catta 35-80mm T2.9 E-Mount Cine Zoom Lens (Black) CATTA-ZOOME-35-80-T29

Add a cinema zoom lens to your documentary, broadcast, or online production kit with this black Catta 35-80mm T2.9 E-Mount Cine Zoom Lens from DZOFilm. The cine lens is designed to maintain focus as you smoothly zoom in or out. The Catta line reproduces accurate color and features a smooth focus/defocus transition. It features a wide T2.9 to T22 aperture, a 16-blade iris for a smooth bokeh, and a long 29.1" close focus range.

True to its cine design, it has a focus rotation of 240°, a 100° zoom rotation range, and a 75° iris rotation range. The lens features a Sony E-mount, and it can be easily interchanged with optional RF, L, X, and Z mounts. Multiple accessories are included with the lens, including front and rear lens caps, a shim set, a support base, a support rod, and a filter bracket.

Key Features
- Maintains focus throughout 35 to 80mm zoom range
- Minimal breathing
- 16-blade iris with a soft bokeh
- T2.9 to T22 aperture; 2.3x magnification ratio
- 240° focus rotation; 100° zoom rotation; 75° iris rotation
- 29.1" minimum focus distance
- 80mm front diameter - 0.8 MOD gears

Focal Length 35 to 80mm
Lens Mount Sony E
Lens Format Coverage Full Frame
Image Circle 43.5 mm
Maximum Aperture T2.9
Minimum Aperture T22
Minimum Focus Distance From Unspecified Point in Lens: 29.5" / 75 cm
Diaphragm Blades 16
Gear MOD & Pitch Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch
Zoom: 0.8 MOD / 32 Pitch
Front Diameter 80 mm
Filter Thread 77 mm
Focus Scales Imperial
Focus Rotation 240°
Iris Rotation 75°
Zoom Rotation 100°
Zoom Ratio 2.3x
Electronic Communication No
Image Stabilization No
Dimensions (W x H) 8.4 x 3.1" / 214.4 x 80 mm
Length 8.4" / 214.4 mm
Weight 3.4 lb / 1532 g
