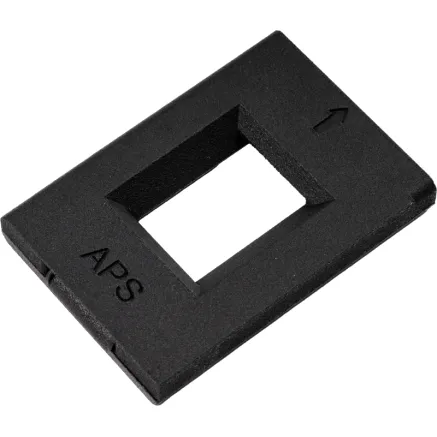

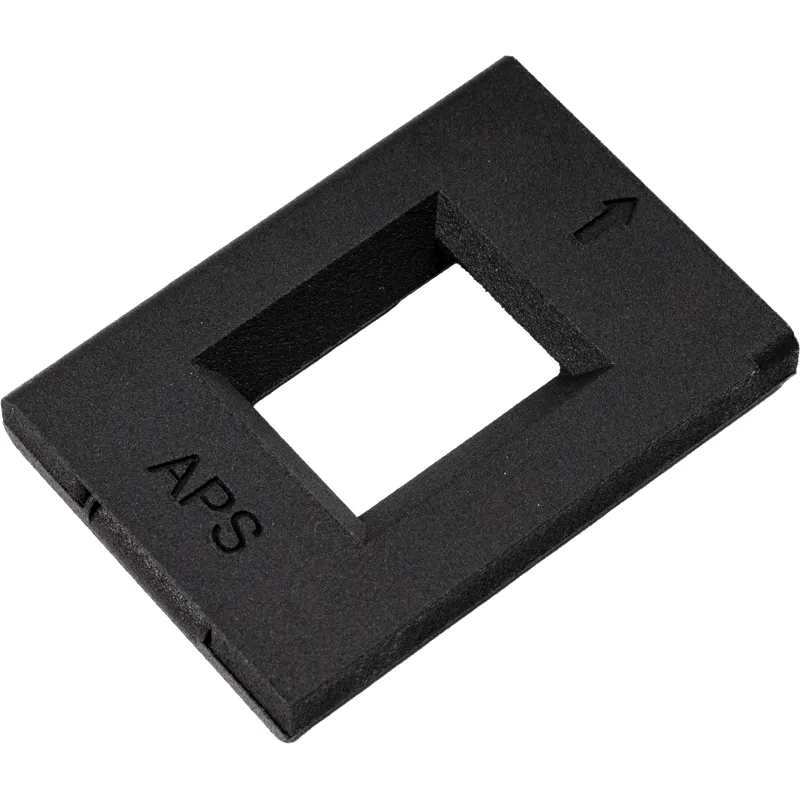

VALOI EASY35 APS HOLDER VLEZ35APSH

Overview

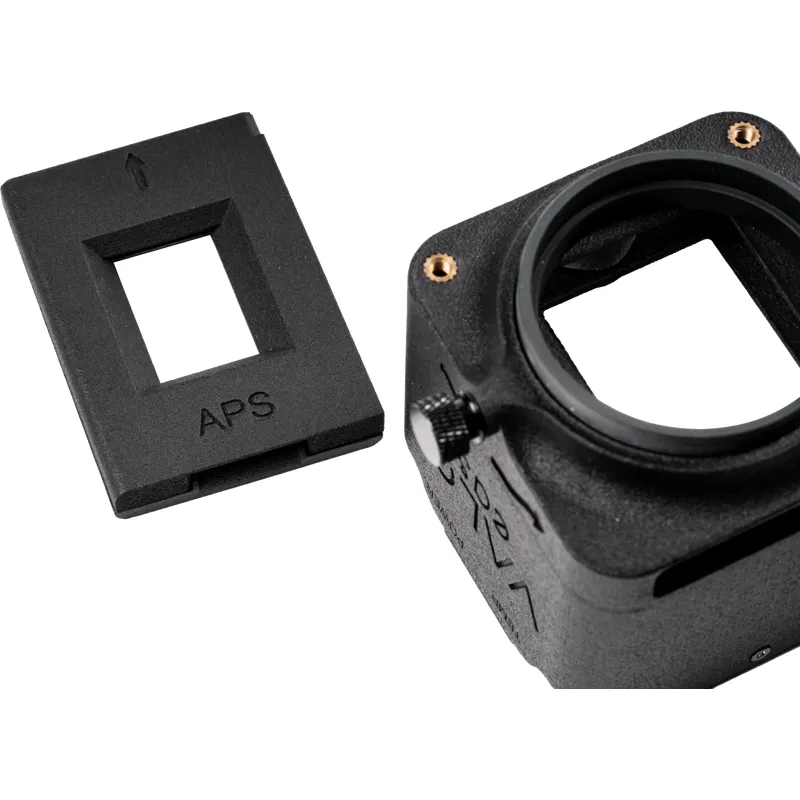

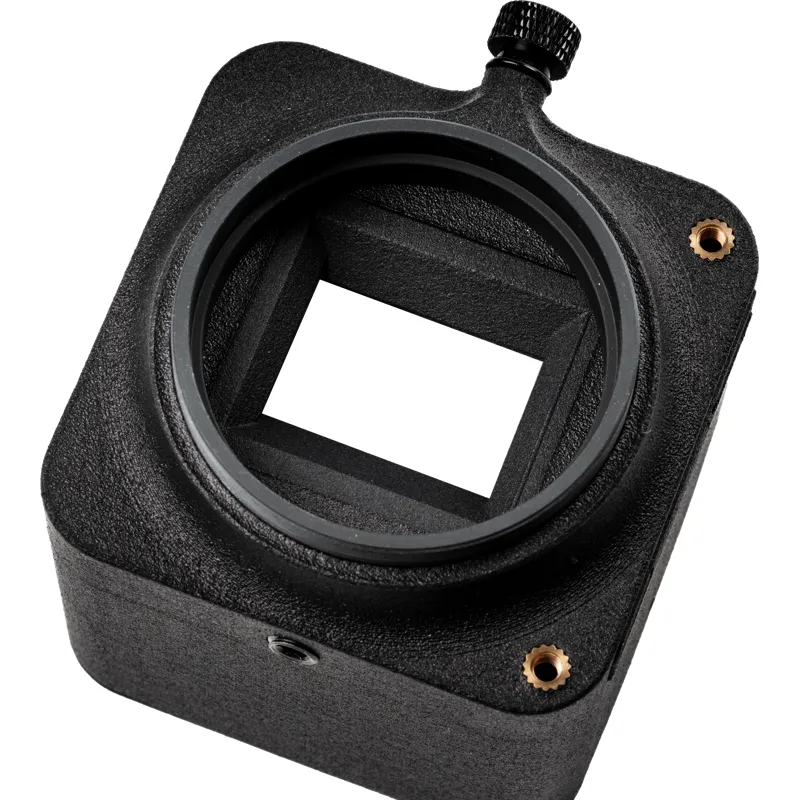

The easy35 APS holder allows you to scan 24 mm wide APS film, with a frame size of 30.2 x 16.9 mm (APS-H format) or smaller. The holder fits into the easy35 system just like any other compatible holder - by removing the existing holder and inserting this new one.

Gate Dimensions

The gate dimensions are approximately as follows: Length 33.2 mm, Width 21.4 mm, which allows you to see the entire frame and part of the surrounding rebate area. VALOI easy35 holders operate by passing the film through a thin slot that runs through the entire holder and exits on the other side. This way, you can easily push or pull the film through, saving your time and effort compared to traditional slide holders.

Design Features

All VALOI holders utilize a double S-curve design, where the film slot is curved before and after the scanning gates. By curving the film in one direction on both sides, greater flatness is achieved than would be possible with a straight slot.

Key Selling Points

• Compatible with APS film
• Excellent film flatness
• Displays the entire frame
• Fits into the easy35 system
• Technical selling points
• Gate width 33.2 mm
• Gate length 21.4 mm
• Double S-curve design for great flatness
• Tight 0.4 mm film guide strip for better flatness

Product Dimensions with Packaging

• Length (mm) 180
• Width (mm) 120
• Height (mm) 5
• Weight (g) 41

Product Dimensions without Packaging

• Length (mm) 80
• Width (mm) 60
• Height (mm) 12
• Weight (g) 24
