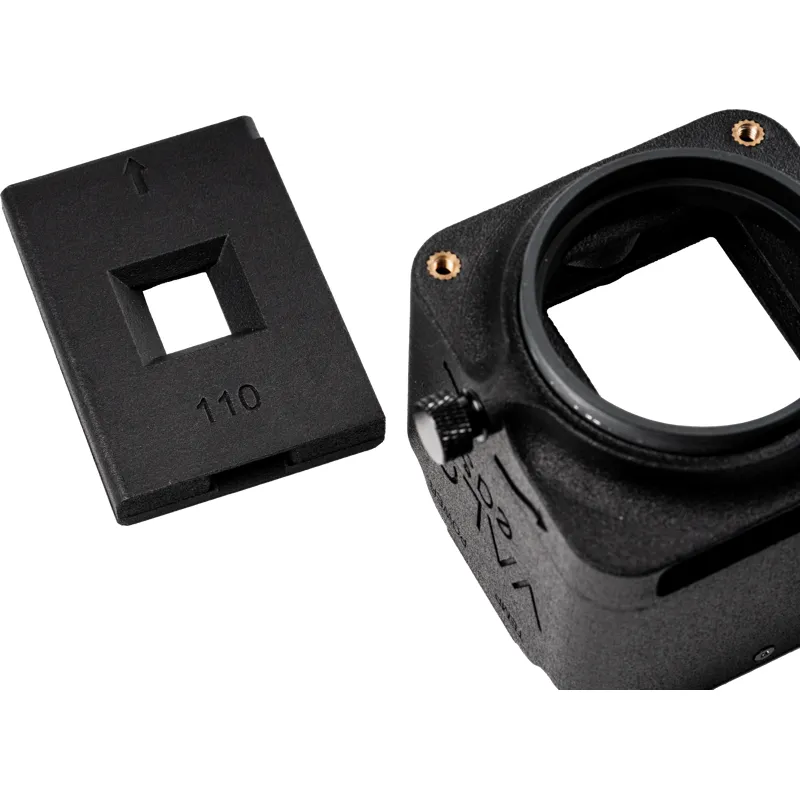

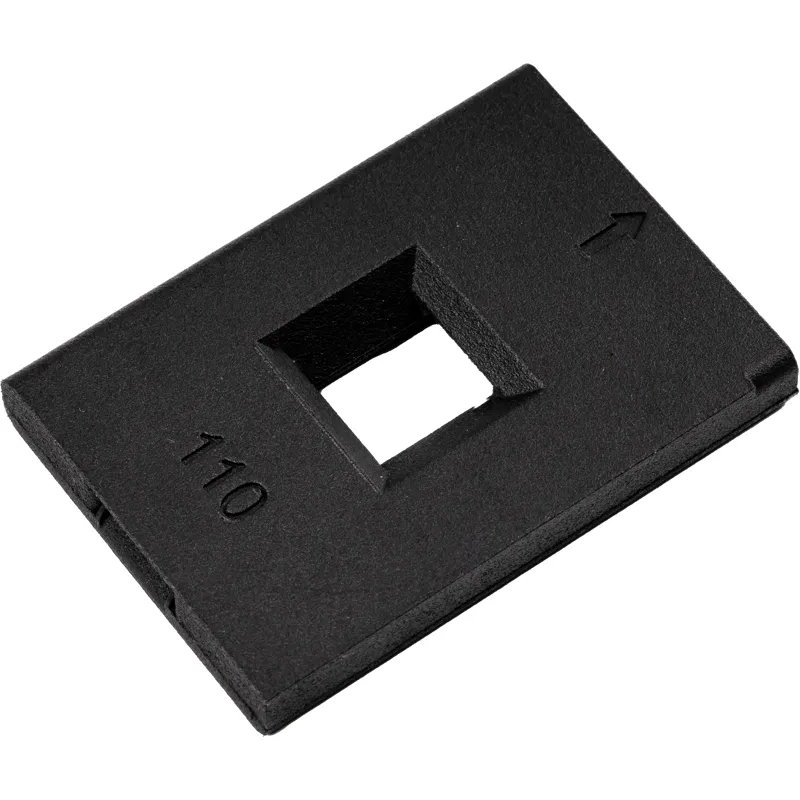

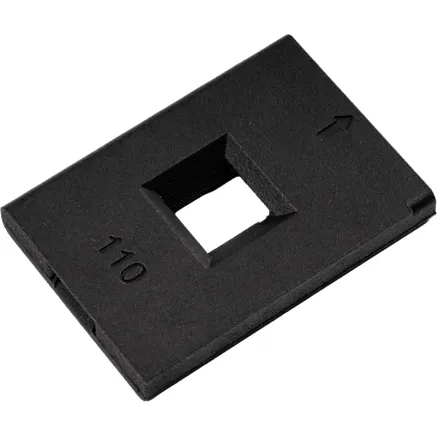

VALOI EASY35 110 HOLDER VLEZ35110H

Overview

The easy35 110 holder can scan 16 mm wide 110 film, with a frame size of 13x17 mm or smaller. This holder is part of the easy35 system, just like any other compatible holder - by removing the existing holder and inserting the new one.

Gate Dimensions

The gate dimensions are approximately as follows: Length 18 mm, Width 14.40 mm, allowing you to see the entire frame. Due to the small size of the frame, we cannot guarantee that the entire frame will be visible, but the holder is designed to show as much of the frame as possible while maintaining good flatness and stability.

Functionality

VALOI easy35 holders operate by passing the film through a thin slot that runs through the entire holder and exits on the other side. This way, you can easily push or pull the film through the entire holder, saving time and effort compared to traditional slide holders.

Design Features

All VALOI holders utilize a double S-curve design, where the film slot is curved before and after the scanning gates. By curving the film in one direction on both sides, greater flatness is achieved than would be possible with a straight slot.

Key Features

• Compatible with all frame sizes of 110 film.
• Excellent film flatness.
• Displays the entire frame.
• Suitable for the easy35 system.
• Technical selling points.
• Gate width: 14.4 mm.
• Gate length: 18 mm.
• Double S-curve design for excellent flatness.
• Close 0.4 mm film guide strip for improved flatness.

Product Dimensions

With Packaging

• Length (mm): 180
• Width (mm): 120
• Height (mm): 2
• Weight (g): 44

Without Packaging

• Length (mm): 80
• Width (mm): 60
• Height (mm): Not specified
• Weight (g): 26
