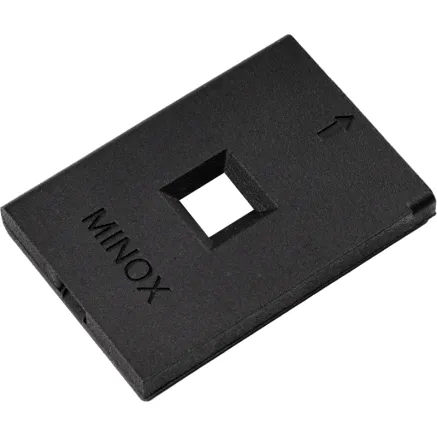

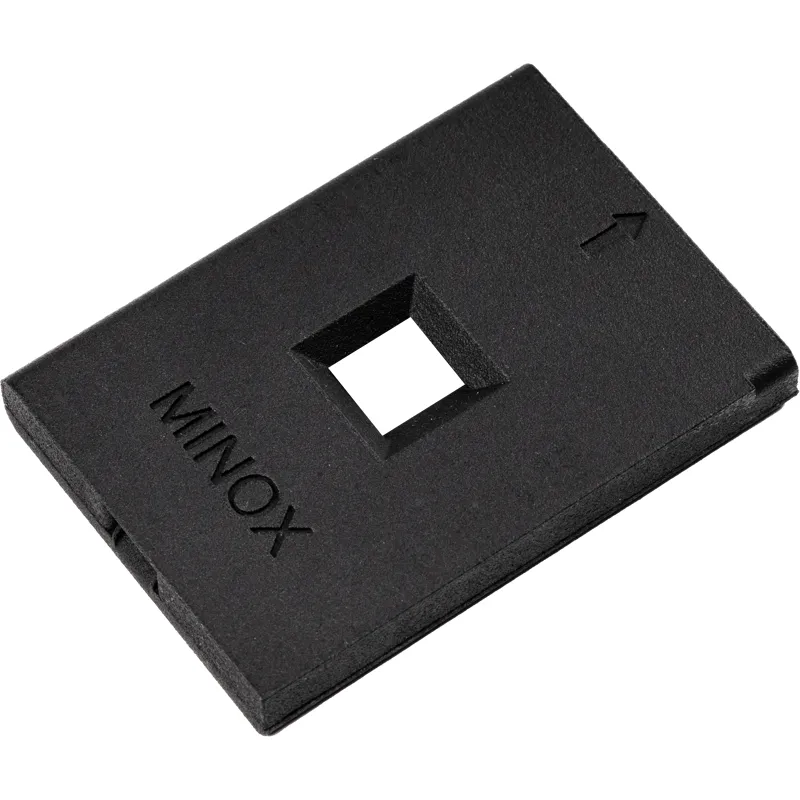

VALOI EASY35 MINOX HOLDER VLEZ35MNXH

Easy35 Minox Holder

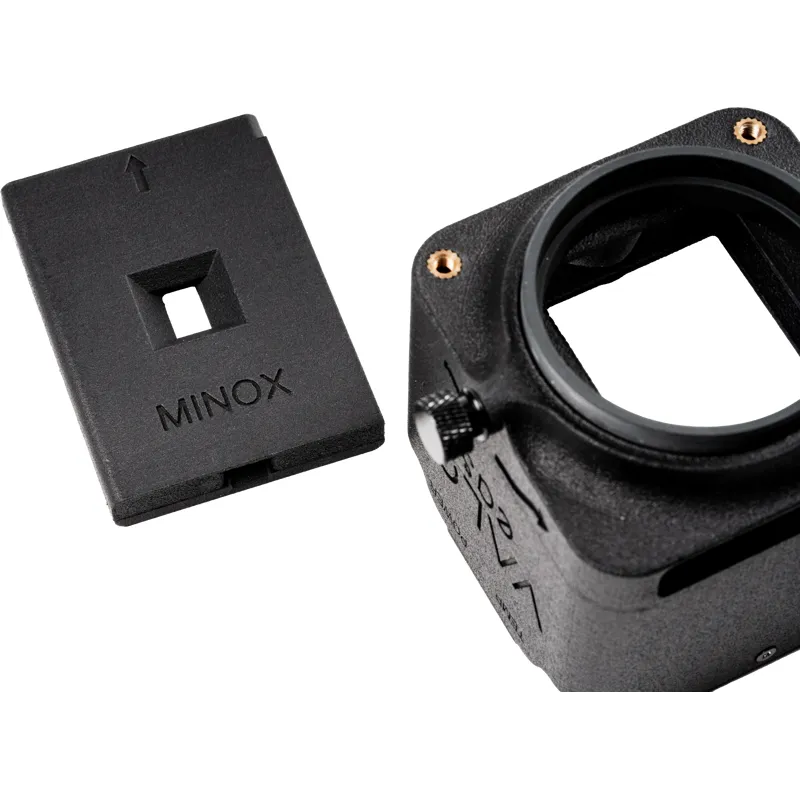

The Easy35 Minox holder allows you to scan Minox films, which are 9.2 mm wide, and the frame size is 8x11 mm. This holder is part of the Easy35 system, just like any other compatible holder - simply remove the existing holder and insert this new one.

Scanning Features

Since the format is so small and there are known variations over the years, we cannot guarantee that the entire frame will be visible. The gate dimensions are approximately as follows: Length 12 mm, Width 8 mm. The VALOI Easy35 holders operate by passing the film through a thin slot that runs through the entire holder and exits on the other side. This way, you can easily push or pull the film through the entire holder, saving time and effort compared to traditional shell holders.

Design and Performance

All VALOI holders utilize a double S-curve design, where the film slot is curved before and after scanning. By curving the film in one direction on both sides, greater flatness is achieved than would be possible with a straight slot.

Key Features

• Compatible with Minox film
• Great film flatness
• Displays the entire frame
• Suitable for the Easy35 system
• Gate width: 8 mm
• Gate length: 12 mm
• Double S-curve design for excellent flatness
• Close 0.4 mm film guide strip for better flatness

Product Dimensions

With Packaging

• Length (mm): 180
• Width (mm): 120
• Height (mm): 2
• Weight (g): 45

Without Packaging

• Length (mm): 80
• Width (mm): 60
• Height (mm): Not specified
• Weight (g): 28
