Shimbol ZO1000-RX Receiver for UVC Livestreaming 1080p60 HDMI/SDI

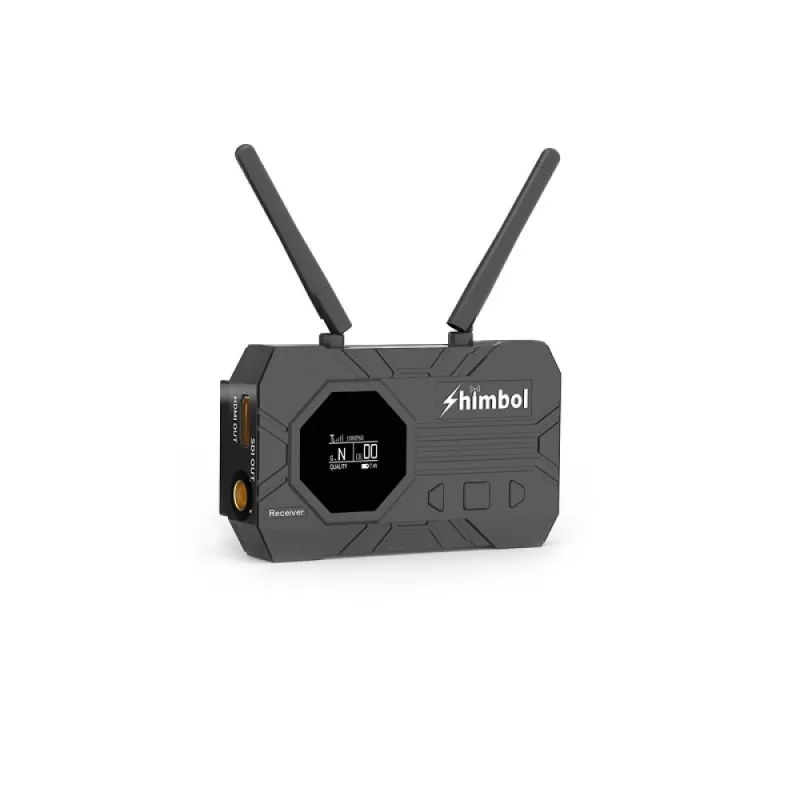

Shimbol ZO1000-RX Receiver

• 1000ft Transmission Distance
• UVC Livestreaming
• Low latency of 80ms
• Lightweight and portable
• 1080p60
• HDMI & SDI Output
• Low power consumption

UVC Transmission Embedded Capture Card
Connected to the ZO1000-receiver and the computer through the UVC output interface, the received video signal can be transmitted to a third-party streaming platform on a computer for live streaming.

1TX to 2RX
When the transmitter and receiver are in a single transmission, the transmitter can send two signals simultaneously, and two recelvers can receive signalssimultaneously.

Group Mode
You do not need to perform complicated steps to enable Group mode and no more encrypted connections.

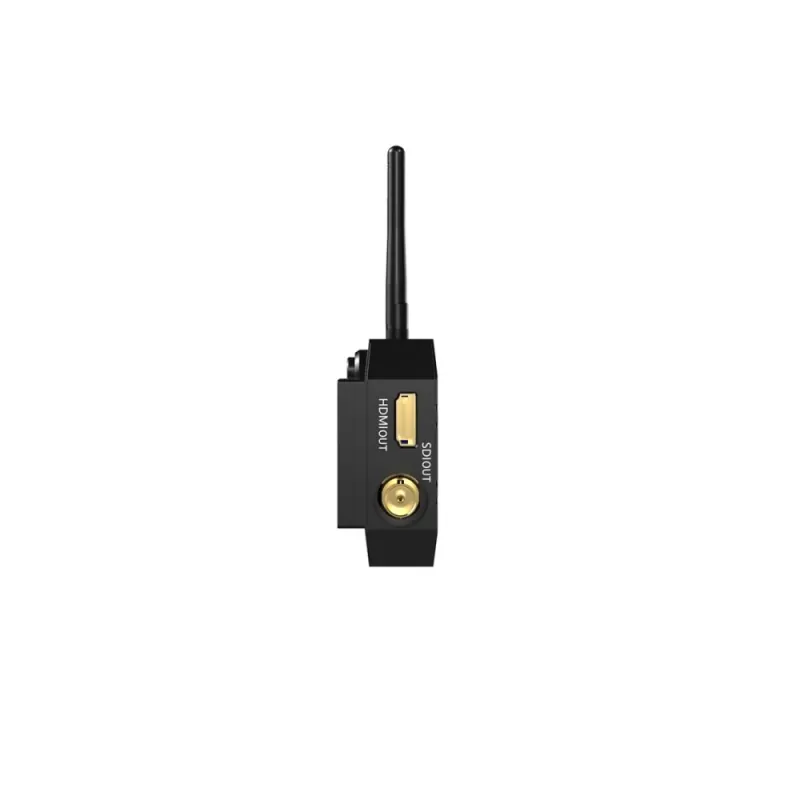

HDMI/SDI Dual Ports
ZO1000 is equipped with HDMI and SDI dual interfaces, support multiple signal formats up to 1080p FHD at 60pfs.

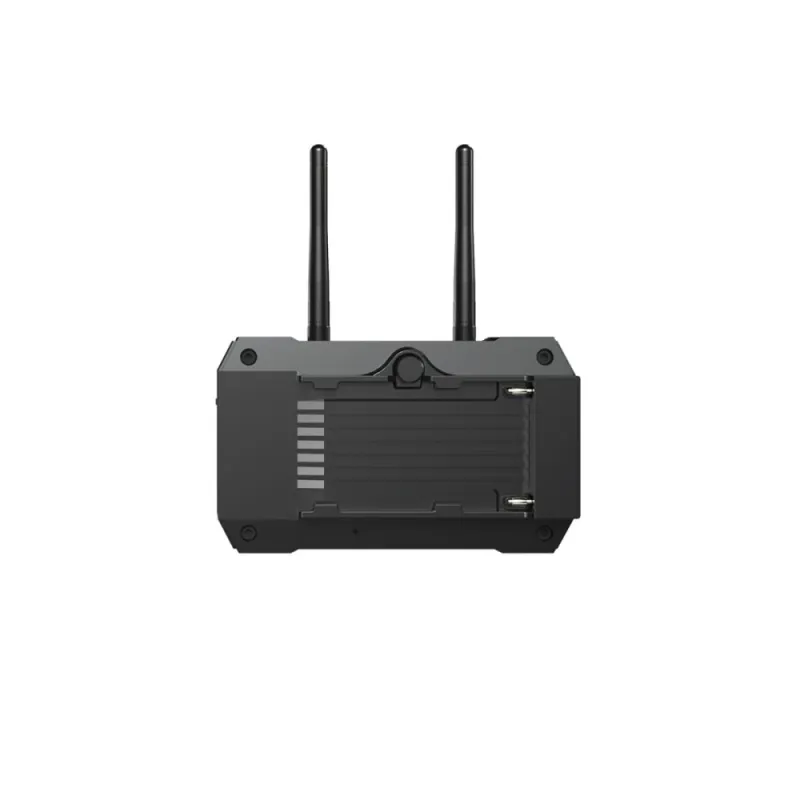

Optional NP-F Batteries Providing Longer Lasting Power
The ZO1000 has an extremely low power consumption of less than 4.5W and is equipped with an NP-F battery plate for longer lasting when powered by NP-F battery, there is no need to worry about continuous use.

Aviation Material
The frame of the ZO1000 is made of a unique aluminium alloy, which makes the product lighter and more durable.

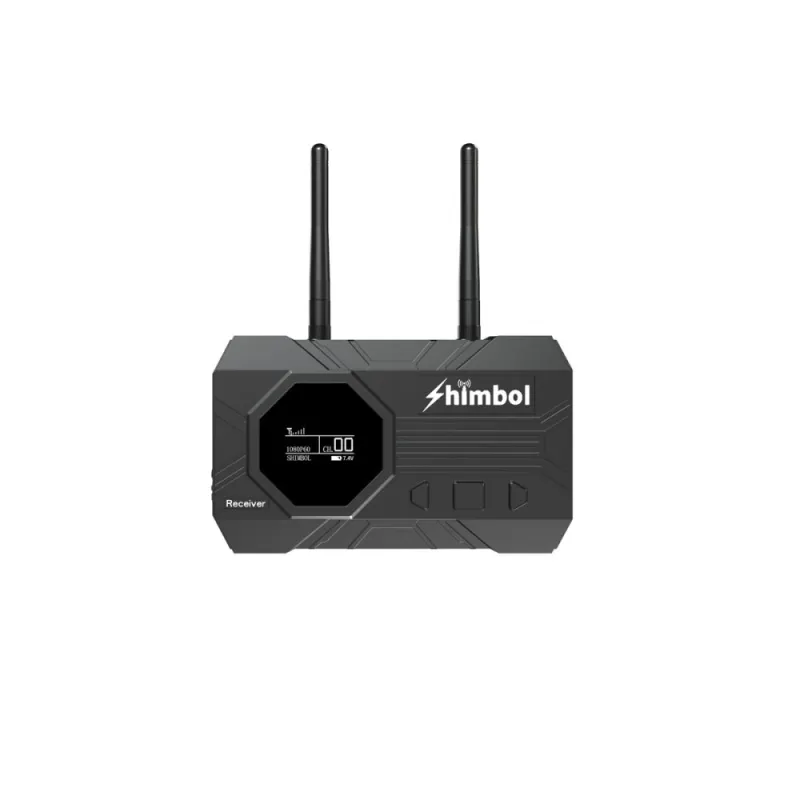

OLED Visual Design
OLED visual display technology quickly presents important information. Delicate picture quality, improve the efficiency of photography and shooting. It can also improve user experience and make the interface more beautiful.

Core Technology with Newly Developed Chip
Equipped with high-end chips to provide users with faster and stable transmission experience. 5.8GHZ frequency transmission enables faster speed, higher energy efficiency and higher performance.

In the Box
• ZO1000 Receiver
• 3× Antennas
• Type-C Power Cable

Specifications

Interface

HDMI Output/SDI Output
Type-C Output

Powered By

5V-2A Type-C/NP-F Battery

Power consumption

<4W

HDMI Output

720P@50/60Hz
1280*1024@60Hz
1080i@50/60Hz
1080p@24/25/30/50/60Hz

SDI Output

720P@50/60Hz
1080i@50/60Hz
1080p@24/25/30/50/60Hz

Type-C Output (UVC)

1080p@24/25/30/50/60Hz

Audio Sample Rate

48kHz

Weight

168g

Size

110×66.5×29.5mm

Frequency

5.1G-5.8G

Transmission delay

80ms, Noisy RF environment 120ms typical

Receiving sensitivity

-80dBm

Distance

1TX to 1RX 300m (LOS)
1TX to 2RX 100m (LOS)
