Shimbol ZO1000-RX Receiver for UVC Livestreaming 1080p60 HDMI/SDI
Condition: New product
AI ASSISTANT CHAT
Or ask about:
| Type of Product | Wireless Video Transmission Systems |
- 1. Evaluate your options.
- 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
- 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
Manager will check the availability of the items in the cart and send the loan application link. - 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
- 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
- 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
- 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
- *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
**The sequence of leasing steps is the same for leases offered by InCredit Group.
***In case of doubt, contact our consultants!
When using leasing services, carefully evaluate your options to repay the loan!Lease

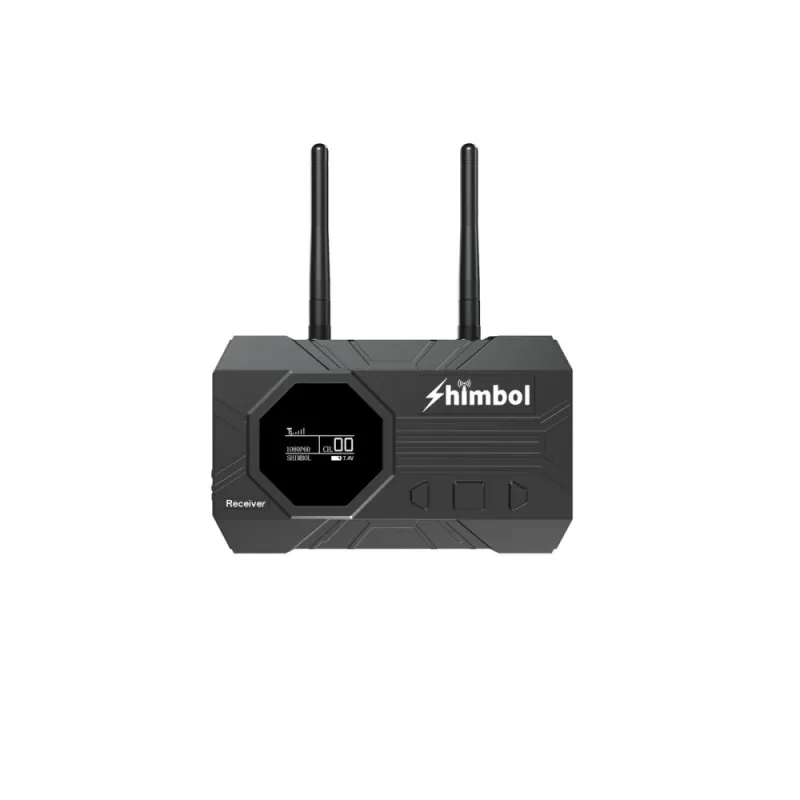

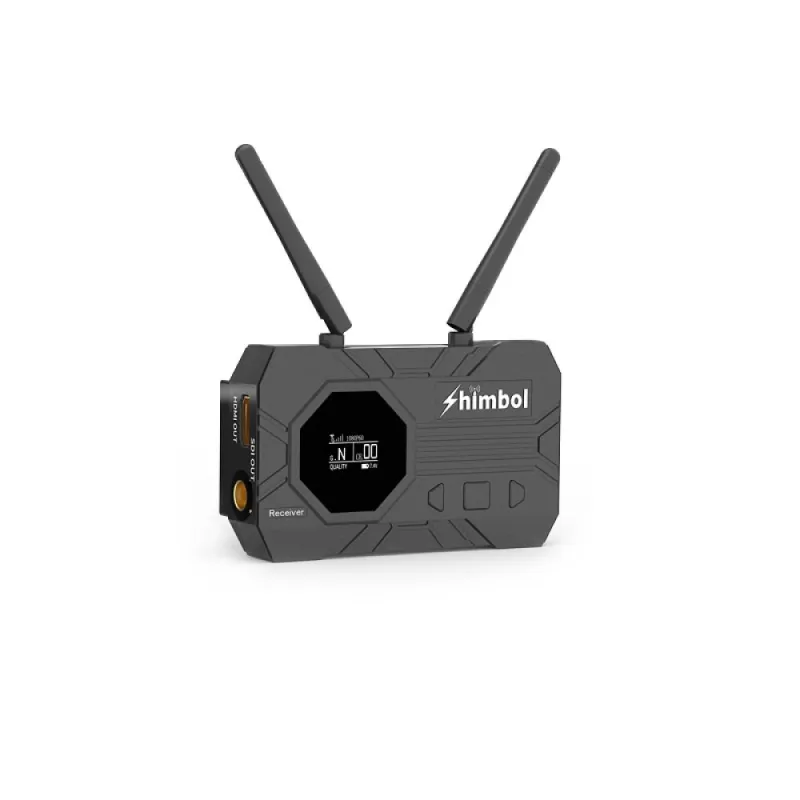

Shimbol ZO1000-RX Receiver
- 1000ft Transmission Distance
- UVC Livestreaming
- Low latency of 80ms
- Lightweight and portable
- 1080p60
- HDMI & SDI Output
- Low power consumption
UVC Transmission Embedded Capture Card
Connected to the ZO1000-receiver and the computer through the UVC output interface, the received video signal can be transmitted to a third-party streaming platform on a computer for live streaming.
1TX to 2RX
When the transmitter and receiver are in a single transmission, the transmitter can send two signals simultaneously, and two recelvers can receive signalssimultaneously.
Group Mode
You do not need to perform complicated steps to enable Group mode and no more encrypted connections.

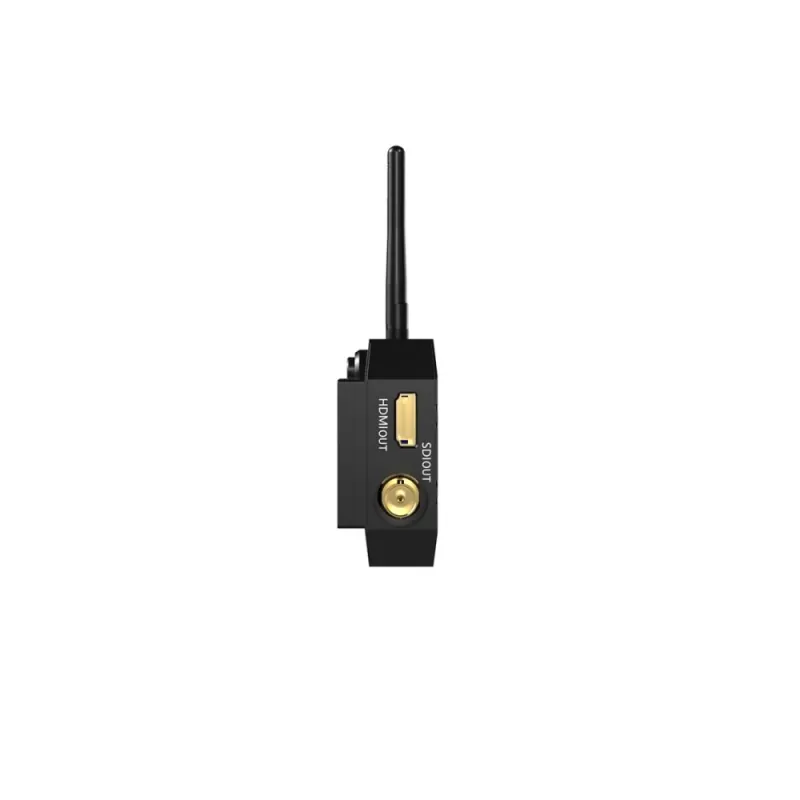

HDMI/SDI Dual Ports
ZO1000 is equipped with HDMI and SDI dual interfaces, support multiple signal formats up to 1080p FHD at 60pfs.

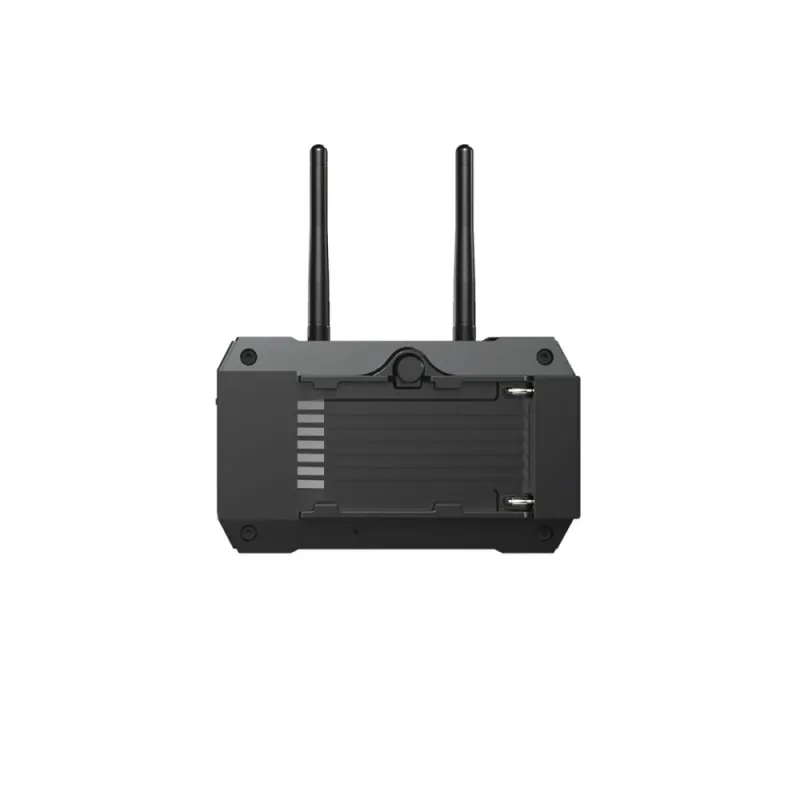

Optional NP-F Batteries Providing Longer Lasting Power
The ZO1000 has an extremely low power consumption of less than 4.5W and is equipped with an NP-F battery plate for longer lasting when powered by NP-F battery, there is no need to worry about continuous use.
Aviation Material
The frame of the ZO1000 is made of a unique aluminium alloy, which makes the product lighter and more durable.
OLED Visual Design
OLED visual display technology quickly presents important information. Delicate picture quality, improve the efficiency of photography and shooting. It can also improve user experience and make the interface more beautiful.
Core Technology with Newly Developed Chip
Equipped with high-end chips to provide users with faster and stable transmission experience. 5.8GHZ frequency transmission enables faster speed, higher energy efficiency and higher performance.
In the Box
• ZO1000 Receiver
• 3× Antennas
• Type-C Power Cable
Specifications
- Interface
- HDMI Output/SDI Output
Type-C Output - Powered By
- 5V-2A Type-C/NP-F Battery
- Power consumption
- <4W
- HDMI Output
- 720P@50/60Hz
1280*1024@60Hz
1080i@50/60Hz
1080p@24/25/30/50/60Hz - SDI Output
- 720P@50/60Hz
1080i@50/60Hz
1080p@24/25/30/50/60Hz - Type-C Output (UVC)
- 1080p@24/25/30/50/60Hz
- Audio Sample Rate
- 48kHz
- Weight
- 168g
- Size
- 110×66.5×29.5mm
- Frequency
- 5.1G-5.8G
- Transmission delay
- 80ms, Noisy RF environment 120ms typical
- Receiving sensitivity
- -80dBm
- Distance
- 1TX to 1RX 300m (LOS)
1TX to 2RX 100m (LOS)
