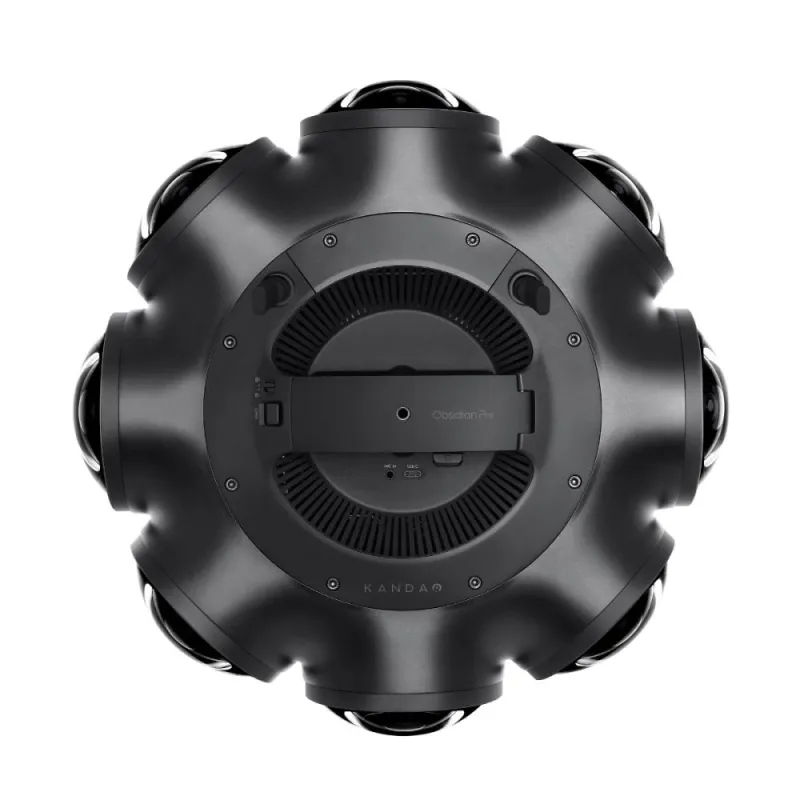

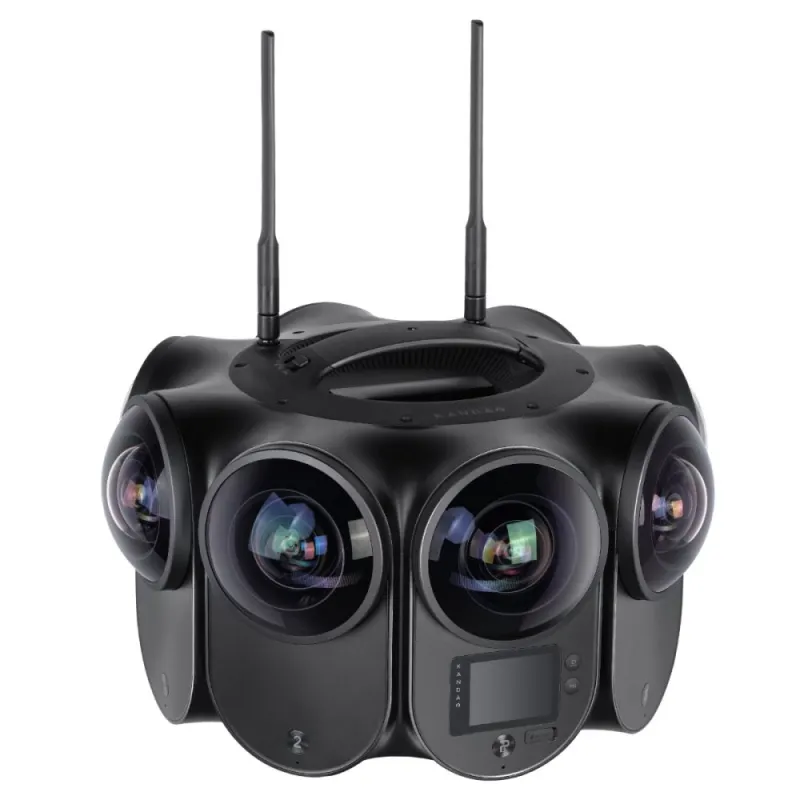

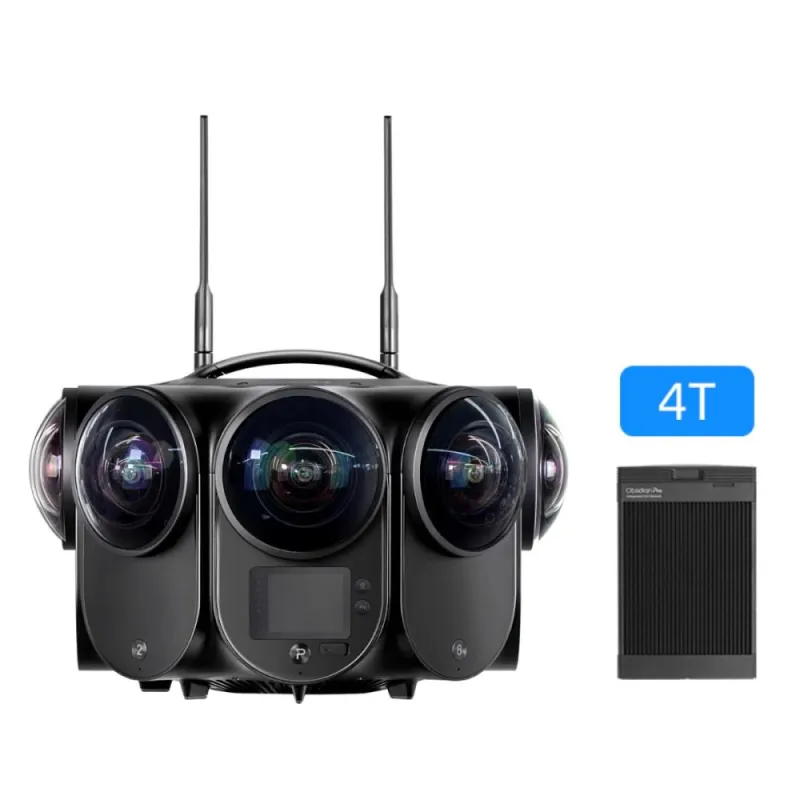

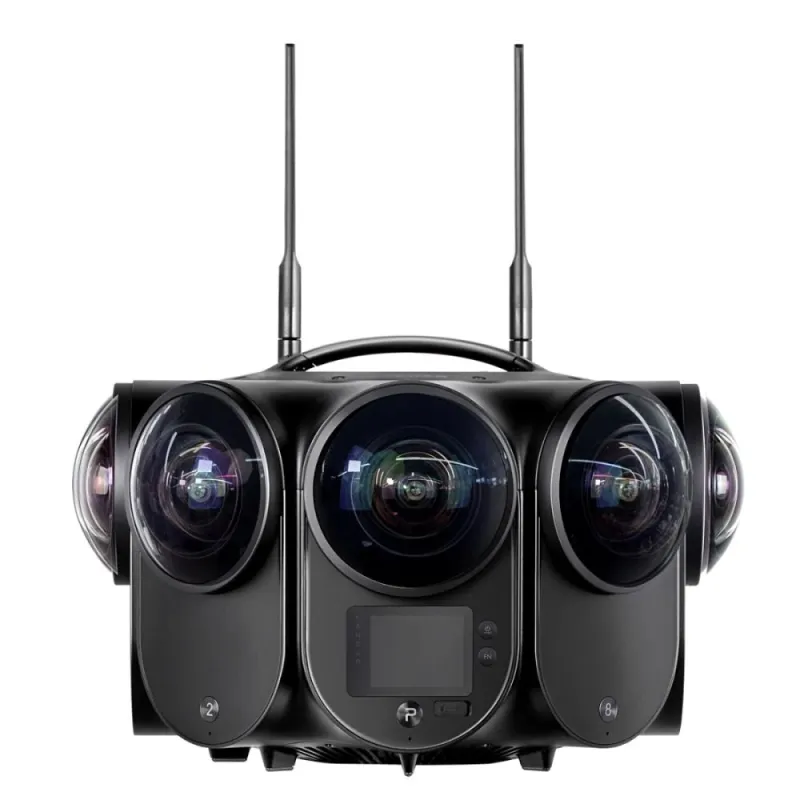

Kandao Obsidian Pro with SSD storage (4TB)
AI ASSISTANT CHAT
Or ask about:
| Type of Product | 360 degree cameras |
- 1. Evaluate your options.
- 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
- 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
Manager will check the availability of the items in the cart and send the loan application link. - 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
- 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
- 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
- 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
- *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
**The sequence of leasing steps is the same for leases offered by InCredit Group.
***In case of doubt, contact our consultants!
When using leasing services, carefully evaluate your options to repay the loan!Lease
Eight APS-C Super Large Sensors
The Kandao Obsidian Pro is the world's first cinematic 360° camera featuring eight APS-C sensors. Each sensor offers 24 million pixels and high photosensitivity, enabling the capture of rich details and excellent image quality.
Adjustable Aperture
Equipped with lenses that have an adjustable aperture ranging from f/2.8 to f/16 (1/3 EV steps), the camera supports up to 16 stops of exposure adjustment. This allows precise control over depth of field and creative capturing with motion blur.
14 Stops Dynamic Range
The camera achieves smooth transitions from shadows to highlights, providing enhanced possibilities for post-processing.
Selectable Focus Distance
Unique selectable focus distances offer two options: "Near" and "Normal," satisfying different focus requirements when using the large aperture.
Eight-Lens Design
Each lens has a 195° field of view (FOV), delivering a 12K panoramic resolution. This design provides full coverage footage ideal for panorama stitching and 3D rendering.
Multi-Format Video Recording Support
- 12-bit RAW video recording (KDRaw)
- 10-bit All-Intra 4:2:2 video recording
- 8-bit / 10-bit H.265 encoding
- Supported frame rates: 23.976, 24, 25, 29.97, 30, 50, 59.94, 60 fps
Video Resolutions
- 11520×11520 @ 30fps (12K 3D)
- 11520×5760 @ 30fps (12K Panorama)
- 5760×5760 @ 60fps (6K 3D)
- 5760×2880 @ 60fps (6K Panorama)
HDMI Output
Maximum HDMI output supports 8K resolution at 30Hz.
Technical Specifications
- Sensor Size: APS-C × 8
- Lens: 195° High-Resolution Fisheye Lens × 8
- F-Stop Range: f/2.8 – f/16, 1/3 EV steps
- Focus Distance Options: Near, Normal (6.6mm)
- ISO Range: 100 - 12800
- Modes: Single Shooting, DNG8, Time Lapse
- Image Formats: 14-bit DNG, 8-bit JPEG, JPEG+DNG
- Video Formats: 12-bit KDRaw, 10-bit All-I 4:2:2, 8-bit / 10-bit H.265
- Wi-Fi: Wi-Fi 6 (802.11ax)
- Bluetooth: Bluetooth 5.0
- Built-in Sensors: Nine-Axis Gyroscope, GPS

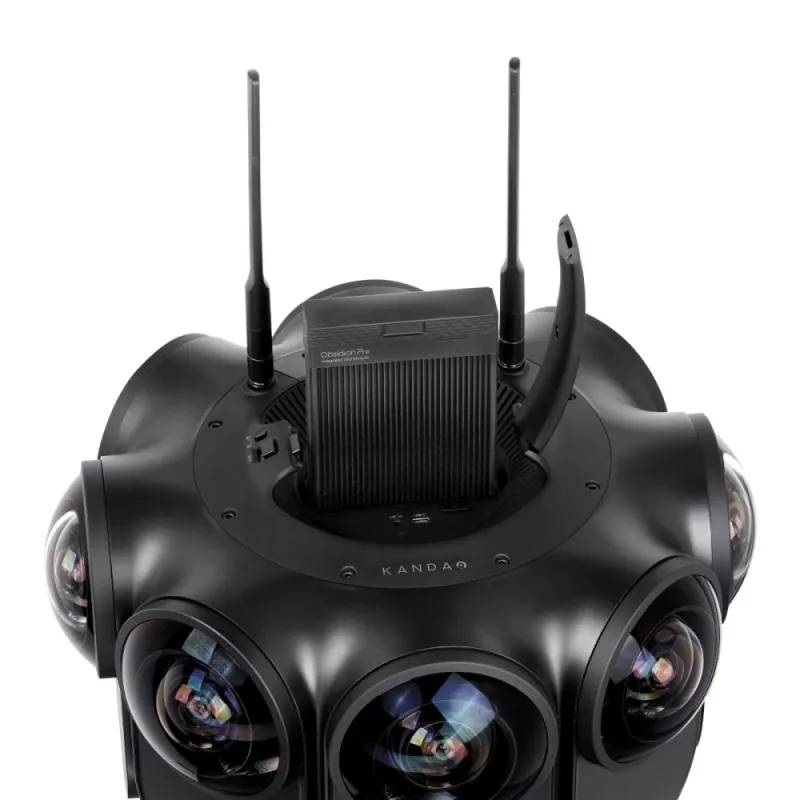

- Storage: 8-in-1 SSD module × 1 (optional), Micro SD × 1 (proxy file storage)

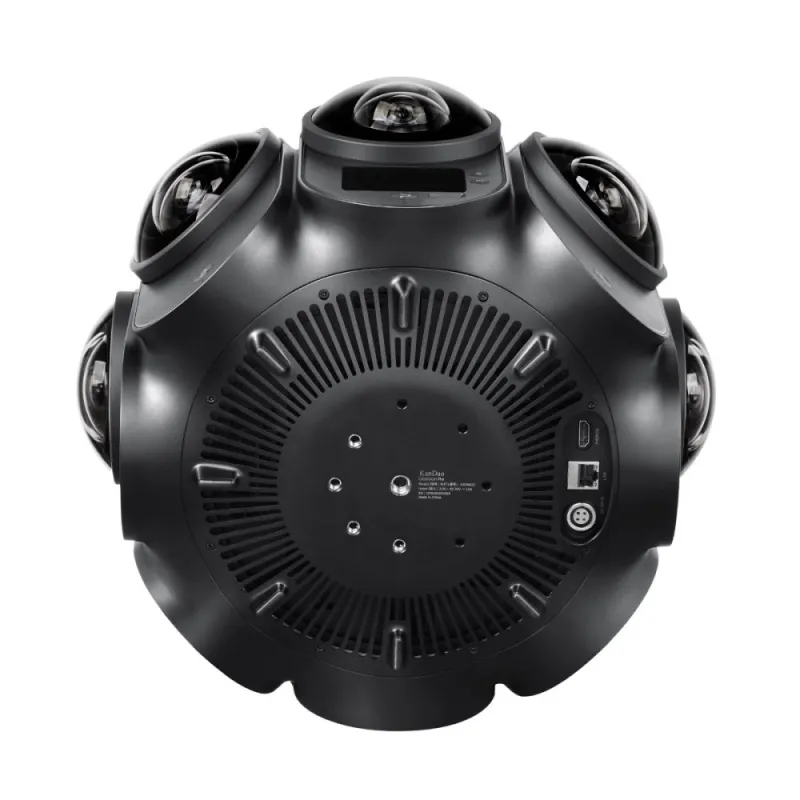

- Connections: 3.5mm Audio Input, USB Type-C, HDMI 2.0 Type-A, 10Gb Ethernet Port
- Power Input: Push-pull self-lock aviation connector plug (2B, 4-pin)
- Maximum Power Input: 160W
- Power Supply: 110-220V AC/DC adapter, 20V input; optional V-mount adapter for mobile power supply (requires 2 V-mount batteries, batteries cannot be charged)
- Screw Holes: 1/4", 3/8", multihole
- Weight: 11.16 kg
- Dimensions: 369.2 mm × 236.8 mm
