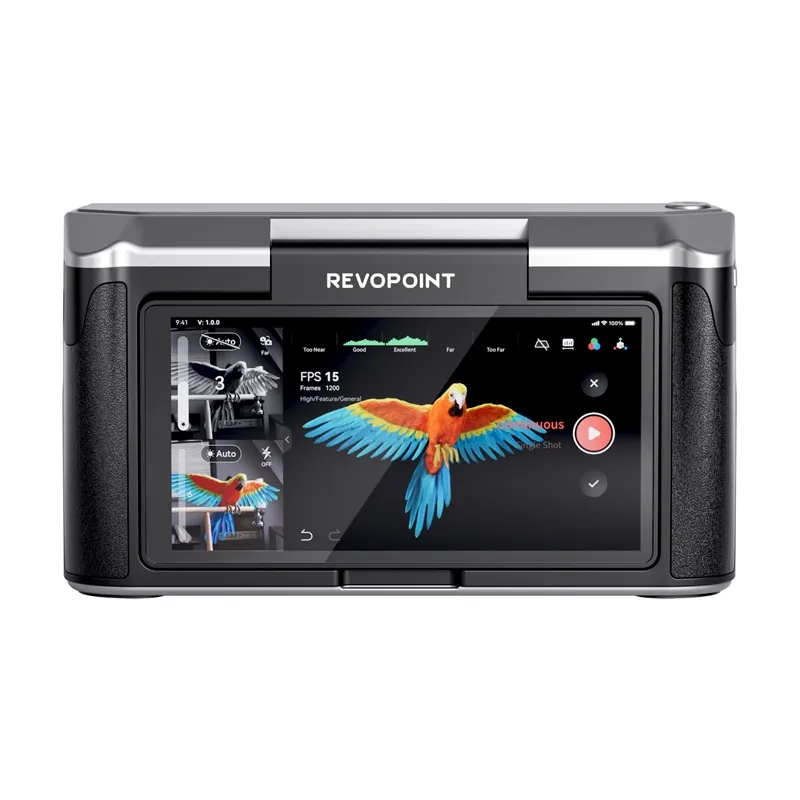

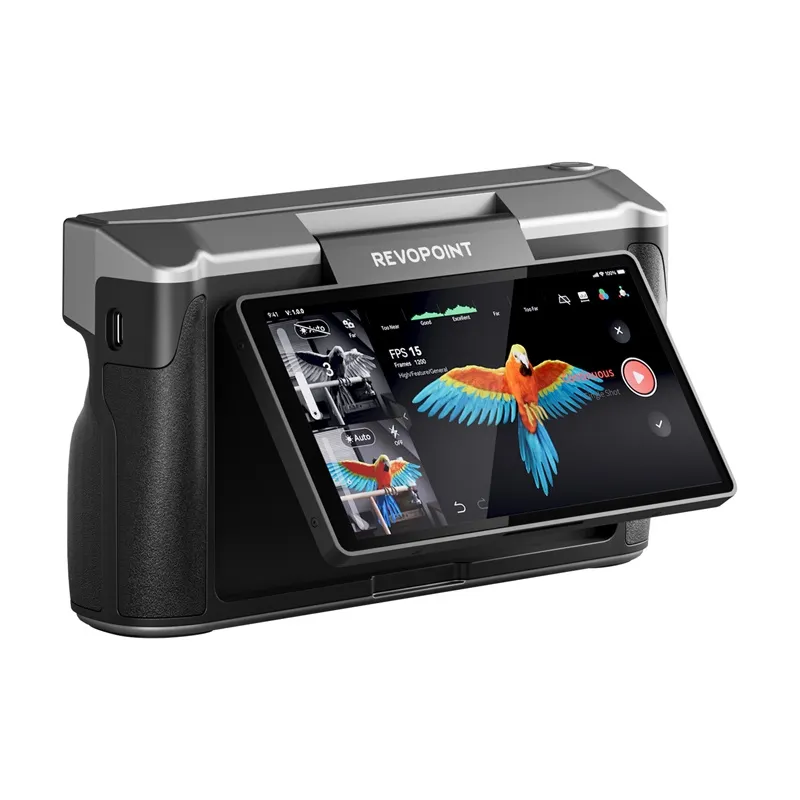

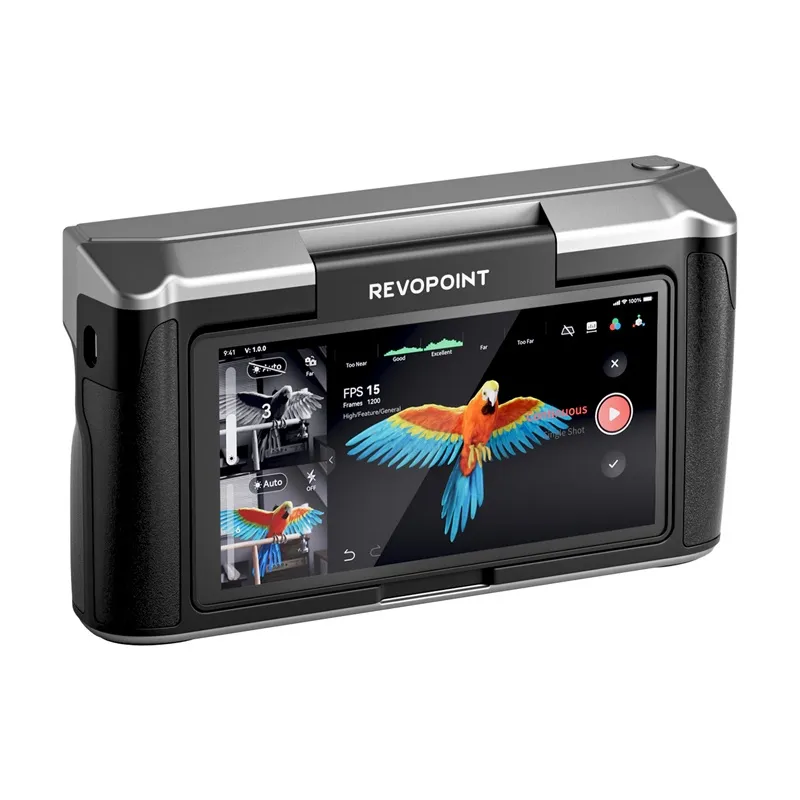

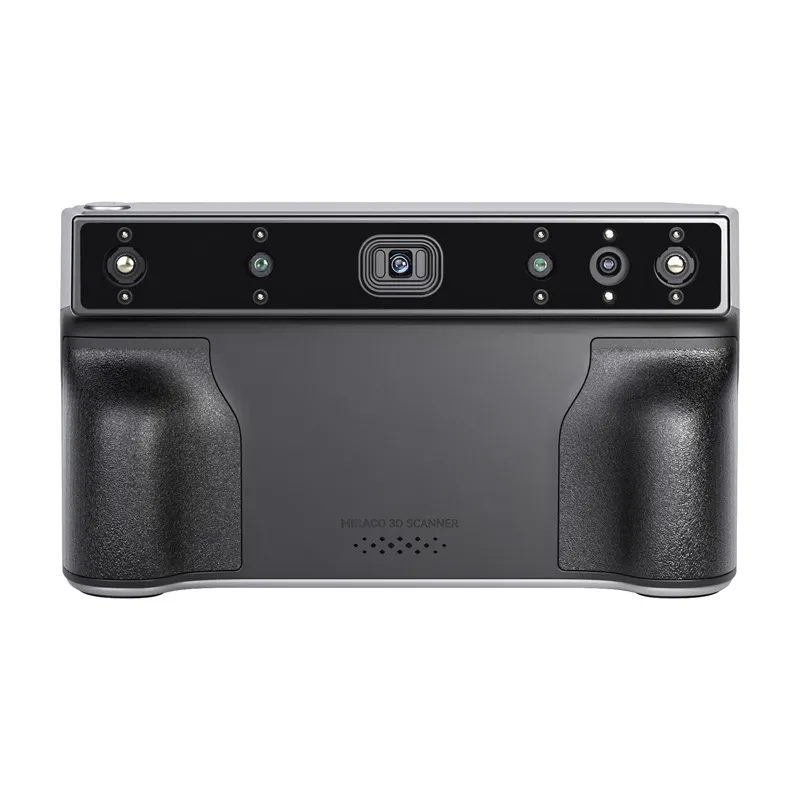

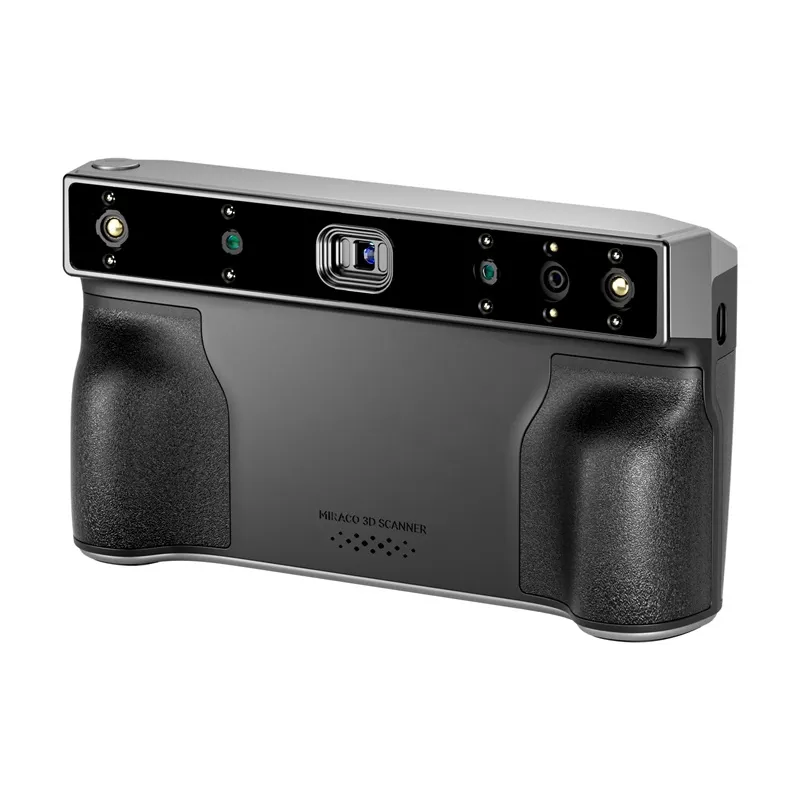

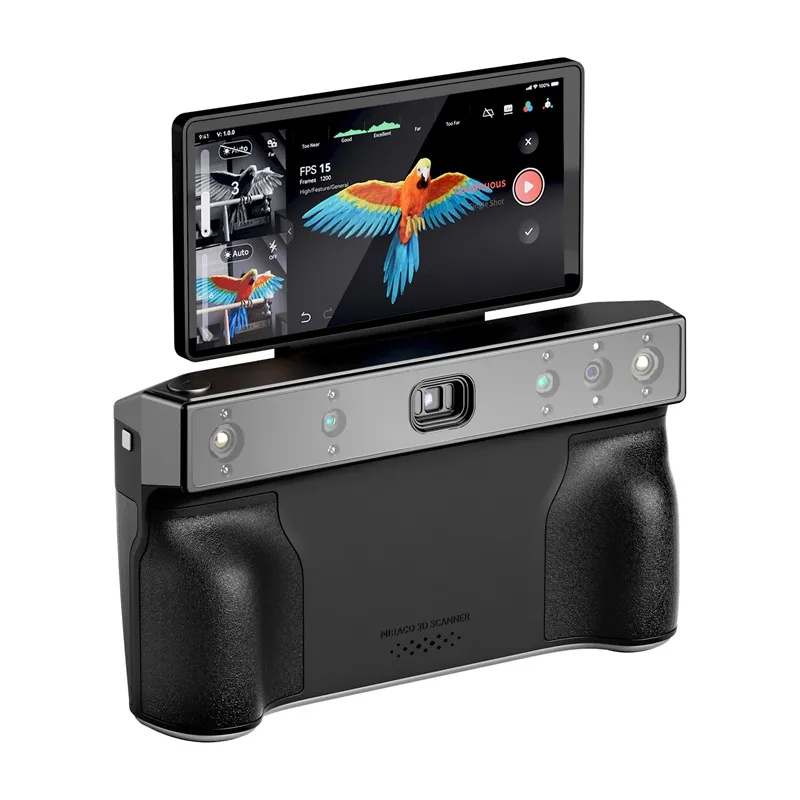

Revopoint Miraco 3D Scanner

Revopoint Miraco 3D Scanner

Immerse yourself in a new era of mobile 3D scanning with the Revopoint Miraco, an ultralight and fully wireless scanner that runs continuously for up to two hours on a single charge. The four-camera depth system allows you to switch seamlessly between fine detail mapping (0.02 mm) and high-speed scanning of large objects (0.2 mm), available in Single Shot and Continuous Shot modes. A powerful 2.8GHz octa-core processor, 16GB of RAM and 256GB of internal storage accommodate up to 10,000 frames, while a 6-inch AMOLED 2K screen with 180 adjustment and advanced post-processing features let you work without a computer. Photorealistic colors are provided by a 48MP RGB camera, while a 9-axis IMU, IP45 certification and Wi-Fi 6 guarantee reliability in all conditions. Discover how easy it is to transfer reality to the digital world!

Wireless freedom and compact design

The Revopoint Miraco revolutionizes the approach to 3D scanning, combining unparalleled mobility with a lightweight body weighing just 750g. With a built-in 5,000mAh battery and 50W fast charging technology, the device runs continuously for about two hours and takes just a moment to renew its power. This means you can completely forget about cables and stationary workstations - scan where you want, without compromise.

Infinite possibilities for detail and scale

With its Quad Depth Camera system, Miraco seamlessly switches between capturing the smallest features (for example, a 33 x 10 x 10 mm screw) and imaging large objects (such as a 600 x 138 x 220 mm muffler). This dynamic combination allows the scanner to maintain surgical precision to as much as 0.02 mm in a single shot, while scanning larger forms to within 0.2 mm, without having to change equipment or prepare different modes.

Dual-mode image capture

In situations requiring detailed mapping of complex surfaces, Single Shot Mode eliminates issues with loss of tracking and difficulties with contrasting textures. When speed is the priority, Continuous Shot Mode allows for operation at up to 15 frames per second, significantly accelerating the process of creating 3D models of both small and large objects.

Independence without compromise

The Miraco features a 2.8GHz octa-core processor, 16GB of RAM and a 256GB disk, allowing up to 10,000 frames to be stored, including 4,000 scans with color. Advanced point cloud processing and model editing functions are available on the device - you don't need a computer to see the scan results. Everything is displayed on a 6-inch AMOLED 2K screen, which you can adjust 180, adapting the frame to any measurement situation.

Photorealistic colors and safety features

The 48MP RGB camera used in the Miraco guarantees vivid, accurate color reproduction in both single shots and continuous mode. Additionally, the nine-axis IMU ensures stable and accurate motion tracking, while the IP45 rating allows operation at temperatures ranging from 10 °C to 40 °C, making the scanner ready for use in extreme conditions. Support for Wi-Fi 6 and the face-scanning feature during selfies expand the device's applications, making it an invaluable tool for engineers, designers, and content creators.

Included in the set

• Miraco scanner
• tripod
• mini turntable
• bust (for scan testing)
• rotator cover
• power cable for the rotator
• storage bag
• calibration plate for close-up scanning
• wrist strap
• dual USB Type-C input adapter
• USB Type-C to C cable (1.8 m)
• cleaning cloth
• stickers
• user manual
