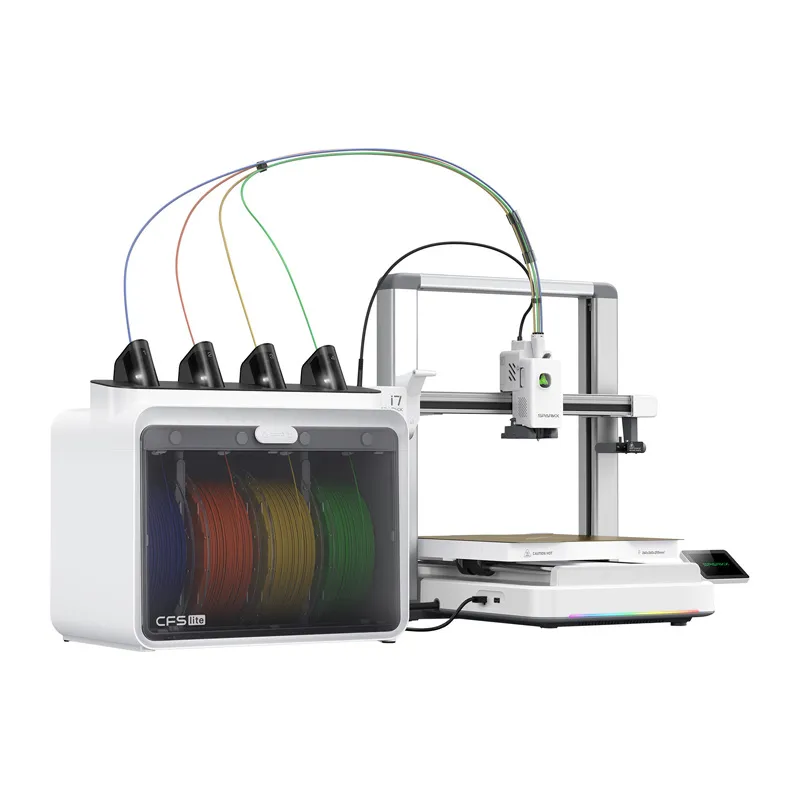

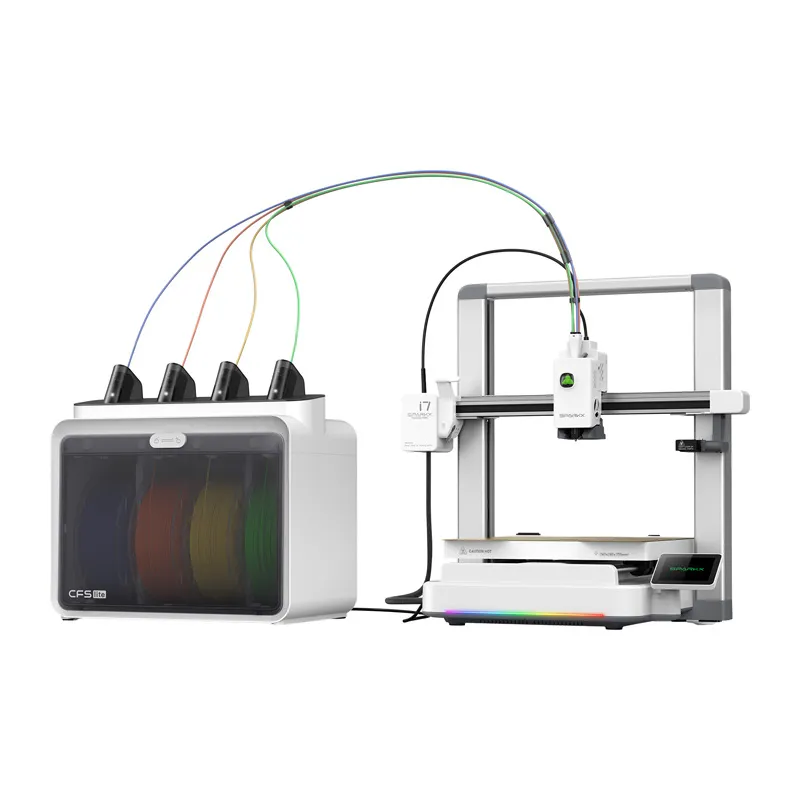

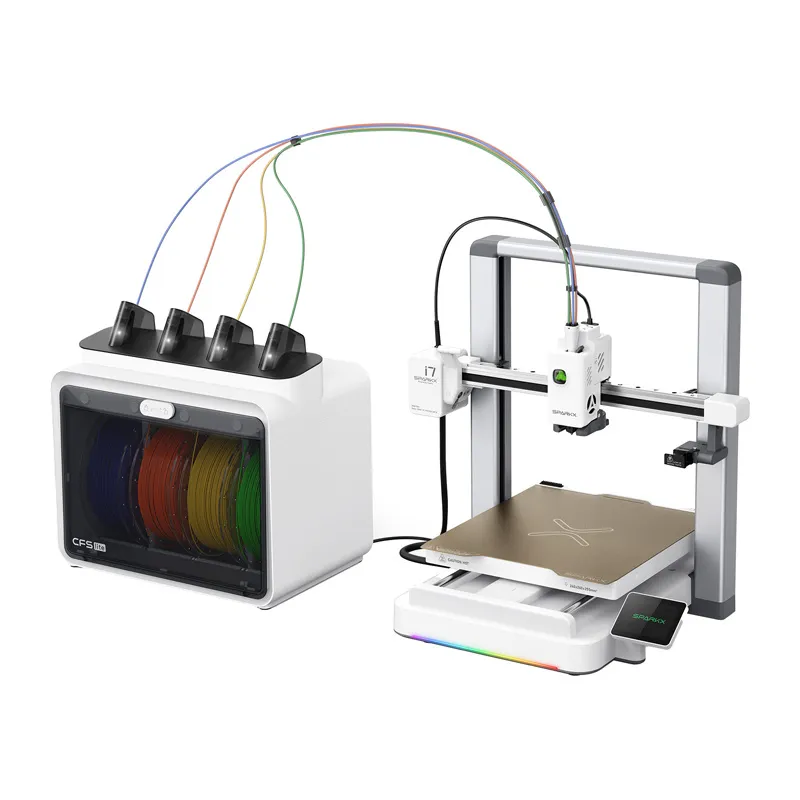

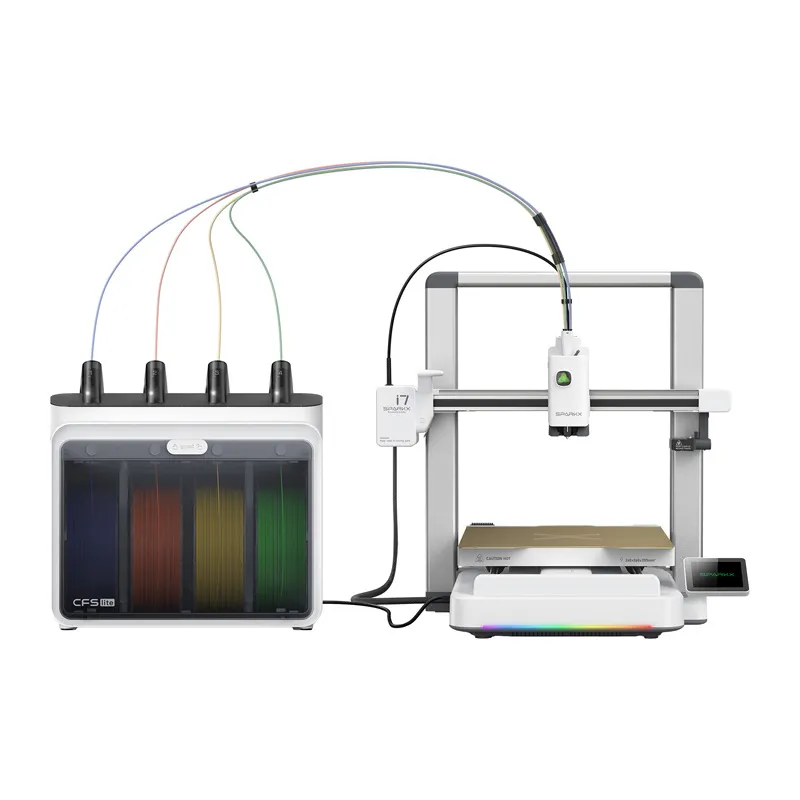

Creality SparkX i7 Combo 3D Printer

Creality SparkX i7 Combo 3D Printer

The Creality SparkX i7 Combo 3D Printer is a state-of-the-art device designed for users who want to print quickly, accurately, and without unnecessary setup. The model uses Fused Filament Fabrication (FFF) technology and combines high print speeds with automation systems that simplify daily operations. The kit also includes the CFS Lite module, which enables multicolor printing and convenient filament management.

High print speed

The Creality SparkX i7 was designed with rapid model creation in mind. A maximum print speed of up to 500 mm/s and acceleration of up to 10,000 mm/s significantly reduce project completion time. In practice, this means faster prototyping and the ability to print more parts in less time. The use of Input Shaping and Pressure Advance stabilizes the print heads movement during operation, ensuring that even at high speeds, the models surface quality remains high.

Automatic setup and user-friendly operation

The printer features fully automatic bed leveling, eliminating the need for manual calibration. This makes getting started easier and faster, especially for those just beginning their journey with 3D printing. Control is handled via a 2.85-inch color touchscreen, which provides quick access to the printers most important functions. The device also supports file transfer via Wi-Fi or USB drive, allowing you to conveniently prepare prints from your computer.

AI camera and print monitoring system

The SparkX i7 features a 720p AI camera with lighting that allows you to monitor the printers operation. The camera analyzes the printing process and detects common errors, such as spaghetti—the uncontrolled formation of filament strands. The system also monitors for filament shortages, tangled material, or printing in mid-air. This allows the device to stop printing and prevent waste of material and time.

Interchangeable hotend and wide filament compatibility

The printer is equipped with a quick-change hotend that can be swapped without tools. This solution simplifies maintenance and allows for faster configuration adjustments for different projects. The standard 0.4 mm nozzle can be replaced with 0.2 / 0.6 / 0.8 mm nozzles, allowing the user to adapt the printer for precise or large models. The SparkX i7 supports PLA, PETG, PLA-CF, and TPU filaments, enabling the printing of both decorative elements and more functional parts.

CFS Lite Module - Multicolor Printing

The Combo kit includes the CFS Lite module, which allows for the use of four filaments simultaneously. This makes it possible to print models in multiple colors without manually changing the material. The system supports automatic recognition of Creality filaments with RFID and an automatic filament refilling function, allowing for a seamless transition to the next spool when printing large models. The module also features its own filament feed motors and a tangling detection system.

Specifications

• Printing technology: Fused Filament Fabrication (FFF)
• Build volume: 260 x 260 x 255 mm
• Print speed: up to 500 mm/s
• Acceleration: up to 10,000 mm/s
• Print accuracy: 100 x 0.1 mm
• Layer height: 0.05 - 0.3 mm
• Filament diameter: 1.75 mm
• Supported materials: PLA, PETG, PLA-CF, TPU (64D or harder)
• Nozzle diameter: 0.4 mm (compatible with 0.2 / 0.6 / 0.8 mm)
• Nozzle temperature: up to 300°C
• Bed temperature: up to 100°C
• Extruder: Direct Drive
• Hotend: quick tool-free replacement
• Build plate: double-sided PEI sheet (gold texture)
• Leveling: Fully automatic
• Camera: AI 720p with lighting
• Error detection: Spaghetti detection, air printing detection, filament run-out, filament tangle detection
• Resume printing after power loss: Yes
• Connectivity: USB Drive / Wi-Fi 2.4 GHz
• Internal memory: 8 GB EMMC
• File formats: G-code / 3MF
• Software: Creality Print 6.3 or newer
• System: Creality OS
• Display: 2.85" color touchscreen
• Power Supply: 100-240 V AC 50/60 Hz
• Rated power: 700 W (220 V) / 400 W (110 V)
• Printer dimensions: 470 x 423 x 456 mm
• Weight: 9.12 kg

CFS Lite

• Compatibility: SparkX i7
• Number of filament slots: 4
• Multicolor printing support: Yes
• Compatible filaments: PLA, PETG, PLA-CF, TPU (64D or harder)
• Filament diameter: 1.75 ± 0.05 mm
• Compatible spools: 1 kg (diameter 195-202 mm, width 42-68 mm)
• Automatic filament identification: Yes (Creality RFID)
• Automatic filament refilling: Yes
• Filament shortage detection: Yes
• Tangle detection: Yes
• Power supply: 24 V DC from the printer via RS-485
• Rated power: 10 W
• Dimensions: 362 x 227 x 364 mm
• Weight: 3.42 kg
