Revopoint POP 4 3D Scanner

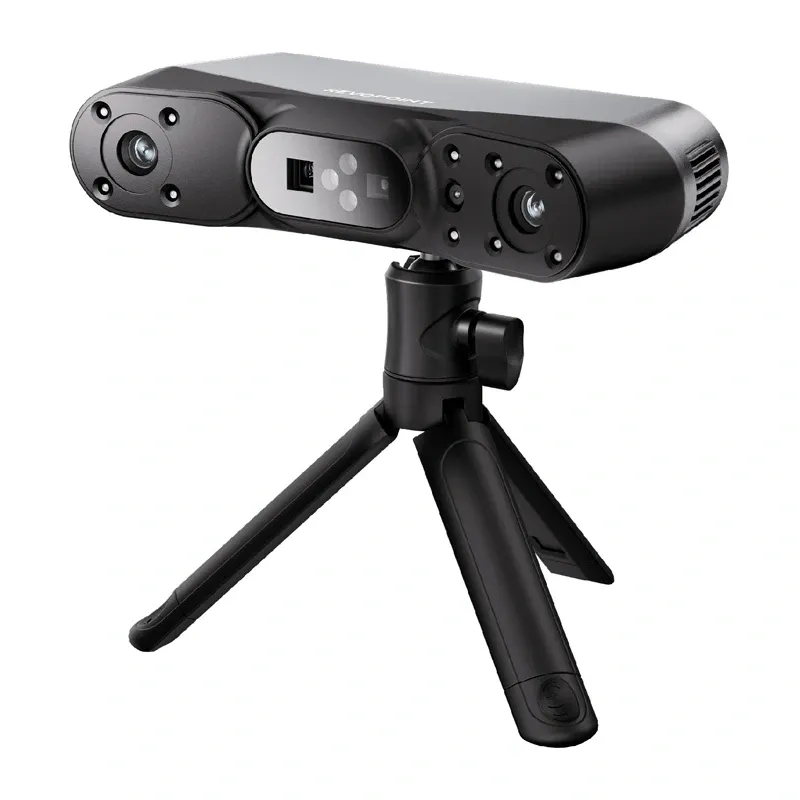

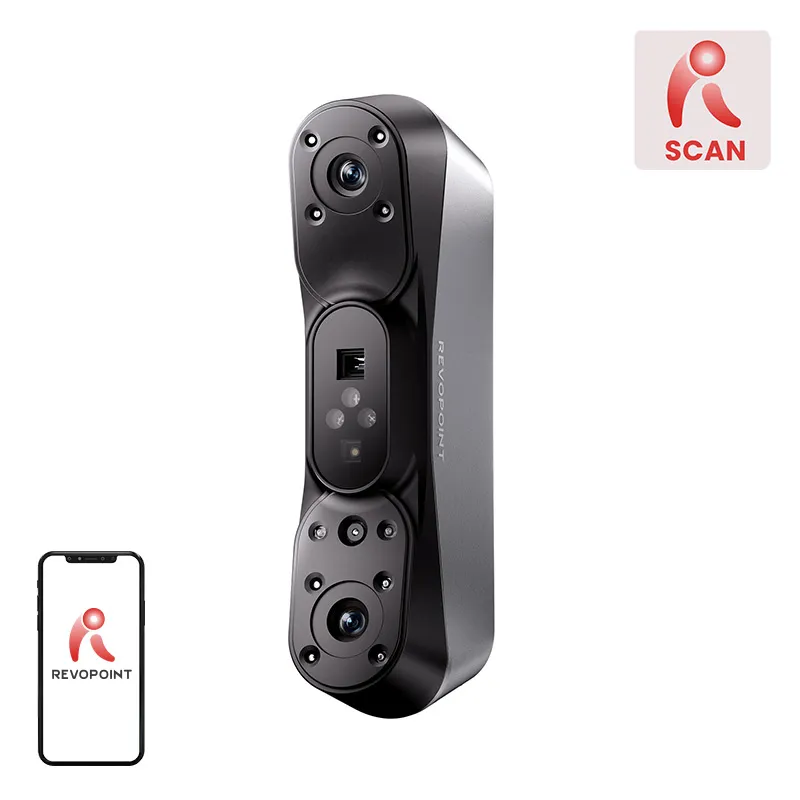

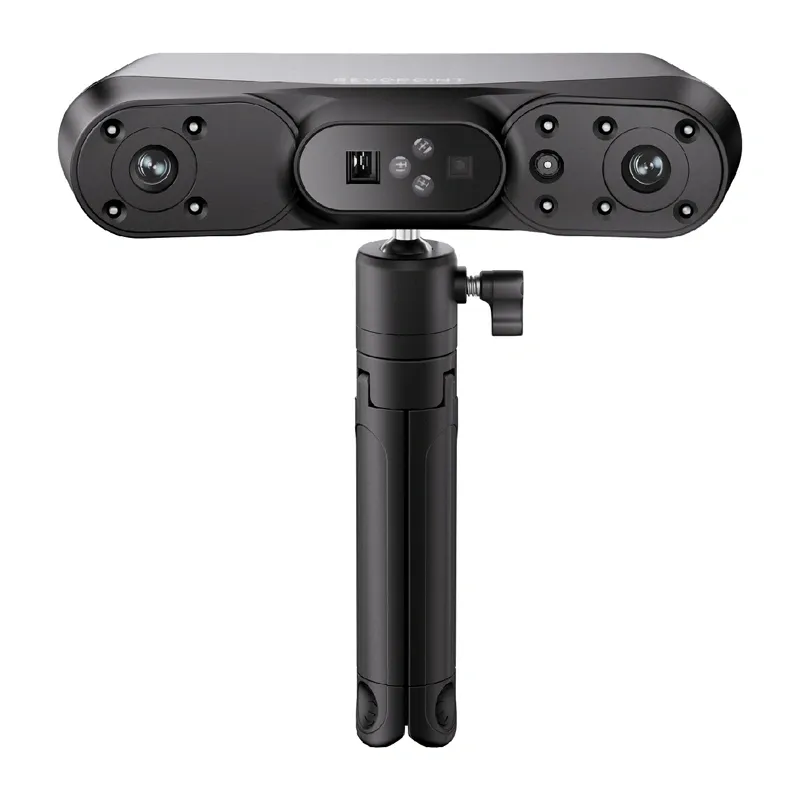

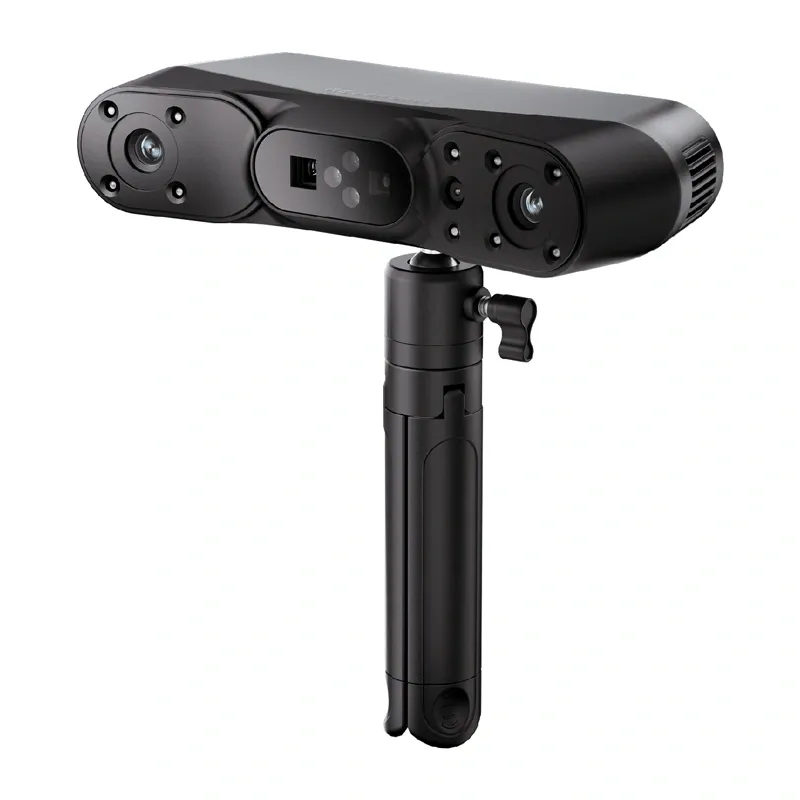

Revopoint POP 4 3D Scanner – Standard Version

The Revopoint POP 4 is an advanced 3D scanner designed for both handheld and desktop use, featuring three data capture technologies: blue multi-line laser, full-field infrared structured light, and VCSEL projection. It offers accuracy up to 0.03 mm in laser mode, RGB color scanning, real-time AI segmentation, and supports Gaussian Splatting models. The scanner can capture objects ranging from 10 × 10 × 10 mm to 2 × 2 × 2 m. Connectivity options include Wi-Fi 6 and USB-C, and it is compatible with Windows, macOS, Android, and iOS platforms. This makes the POP 4 ideal for product design, reverse engineering, quality control, object digitization, and preparing models for 3D printing.

High Accuracy for Demanding Applications

Designed for users requiring high-precision geometric mapping, the POP 4 achieves single-measurement accuracy up to 0.03 mm in multi-line laser mode, capturing fine details in mechanical parts, technical models, or industrial components. It provides a point cloud density of up to 0.05 mm, enabling detailed models suitable for CAD software or 3D printing. Volumetric accuracy of 0.03 mm + 0.05 mm × L(m) is available exclusively in laser modes, supporting applications demanding the highest dimensional precision.

Three Scanning Technologies Tailored to Different Projects

The scanner uses three independent data capture technologies, allowing selection of the appropriate mode for the object type. Multi-line laser mode with 30 crosshairs is designed for scanning technical components and surfaces requiring high accuracy. Full-Field HD uses infrared structured light for convenient scanning of faces, figures, and objects without markers. VCSEL mode is optimized for larger objects and fieldwork, enabling fast data capture from greater distances.

Photorealistic Models with Gaussian Splatting Technology

Supporting Gaussian Splatting technology, the POP 4 creates photorealistic 3D objects with very high visual quality. This technology more accurately replicates light interaction with material surfaces, improving rendering of reflections, translucency, hair, fabrics, and complex textures. Finished models can be exported in SPLAT format for use in VR, AR, animation, product visualization, and digital media projects.

Real-Time AI Segmentation

The POP 4 features Real-Time AI Segmentation, which automatically analyzes the scanned scene during operation. AI algorithms recognize the object and remove background, work surfaces, and other unnecessary elements. The system can detect hands holding the object and remove them from the model without user intervention, resulting in cleaner models and reduced post-processing time.

Fast Scanning and Smooth Object Tracking

Depending on the mode, the POP 4 captures between 15 and 105 frames per second. Laser mode captures up to 2 million points per second, ensuring high accuracy with smooth operation. Full-Field mode captures up to 5 million points per second, accelerating digitization of larger objects. These parameters facilitate scanning of small details and complex structures.

Scanning Dark and Shiny Surfaces

The advanced laser projection system effectively captures many challenging surfaces, including dark objects, mechanical parts, and shiny materials, without requiring matte spray. For transparent or highly reflective surfaces, using a dedicated scanning spray is recommended for optimal results.

Indoor and Outdoor Use

The scanner supports outdoor use in light intensities up to 100,000 lux. VCSEL mode minimizes ambient light impact, enabling operation even in strong sunlight. The stated resistance applies up to 100,000 lux and should not be interpreted as operation under all lighting conditions. Using the optional Outdoor Blue Filter allows detailed laser scans in very bright environments.

Flexible Working Range

The POP 4 allows adjustment of working distance to suit tasks. Multi-line laser mode operates from 200 to 400 mm for fine detail capture. Full-Field HD and Hybrid HD modes operate from 250 to 500 mm. VCSEL technology offers the greatest range, from 300 to 800 mm, facilitating digitization of larger objects and human figures.

Ready-to-Print Models for 3D Printing, CAD, and Reverse Engineering

Included Revo Scan 6 software enables capture, editing, and export of models to popular formats used by professional applications. Supported export formats include STL, OBJ, PLY, FBX, GLTF, 3MF, ASC, and SPLAT, allowing easy integration with CAD programs, design environments, and 3D printing tools. The POP 4 is used in reverse engineering, product design, quality control, animation, digital content creation, and documentation of historical monuments.

Included in the Package

• Revopoint POP 4 3D Scanner
• Tripod
• 2 m USB Type-C to Type-C cable
• Mini turntable
• Calibration plate
• 200 reflective markers

Technical Specifications

• Manufacturer: Revopoint
• Model: POP 4
• Scanning technologies: Blue multi-line laser, Full-Field Structured Light (infrared), VCSEL Structured Light
• Single laser measurement accuracy: up to 0.03 mm
• Single Full-Field measurement accuracy: up to 0.08 mm
• VCSEL single measurement accuracy: up to 0.10 mm (300–500 mm), up to 0.20 mm (500–800 mm)
• Volumetric accuracy: 0.03 mm + 0.05 mm × L(m)
• Working distance for laser mode: 200–400 mm
• Working distance for Full-Field HD / Hybrid HD: 250–500 mm
• Working distance for VCSEL: 300–800 mm
• Minimum scanned object size: 10 × 10 × 10 mm
• Maximum scanned object size: 2 × 2 × 2 m
• Laser scanning speed: up to 105 frames per second
• Full-Field scanning speed: 15–20 frames per second
• VCSEL scanning speed: 20–30 frames per second
• Maximum laser points: up to 2,000,000 points per second
• Maximum Full-Field points: up to 5,000,000 points per second
• RGB camera resolution: 1.3 MP
• Color scanning: Yes
• Outdoor working illumination - VCSEL: up to 100,000 lux
• Outdoor working light - laser: up to 50,000 lux (up to 100,000 lux with Outdoor Blue Filter)
• Connectivity: Wi-Fi 6, Bluetooth 4.1, USB-C 3.0
• Supported systems: Windows 10/11, macOS 11 or later, Android 9.0 or later, iOS 14 or later
• Export formats: PLY, OBJ, STL, ASC, 3MF, GLTF, FBX, SPLAT
• Weight: 286 g
• Dimensions: 160 × 30 × 72 mm
• Power supply: DC 5 V / 2 A
