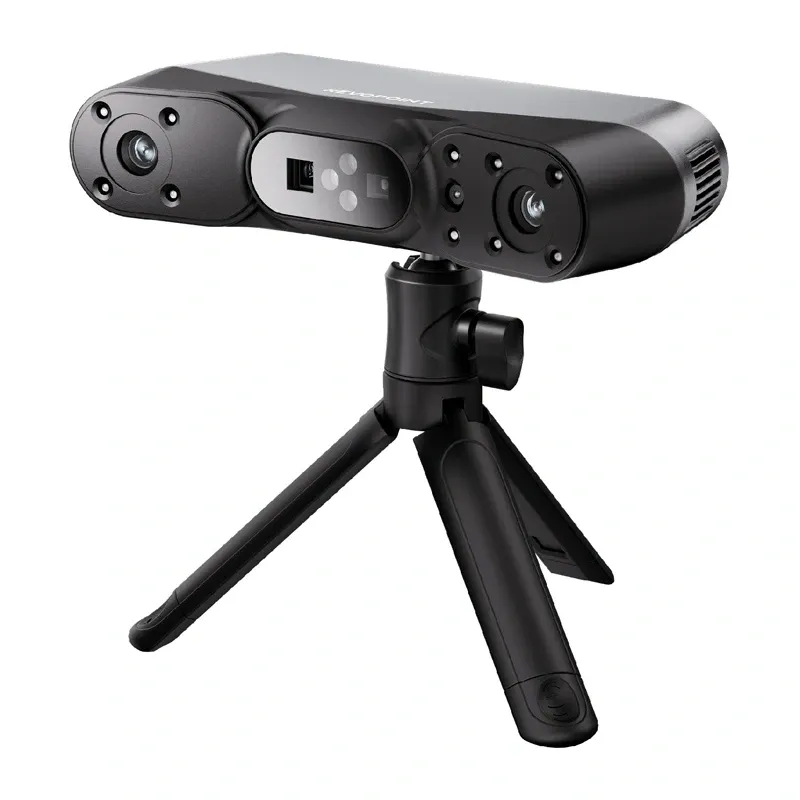

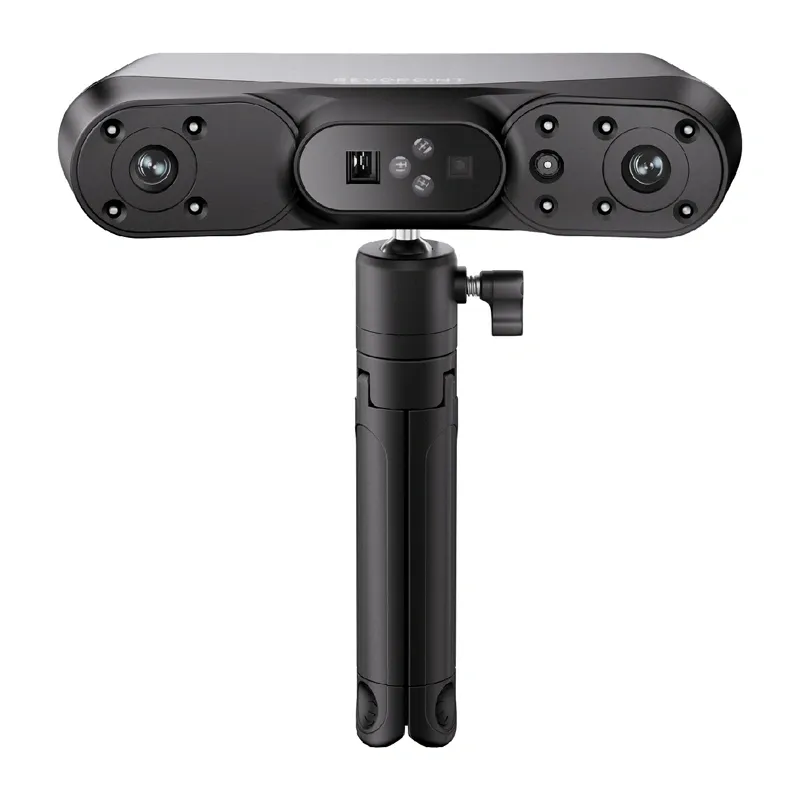

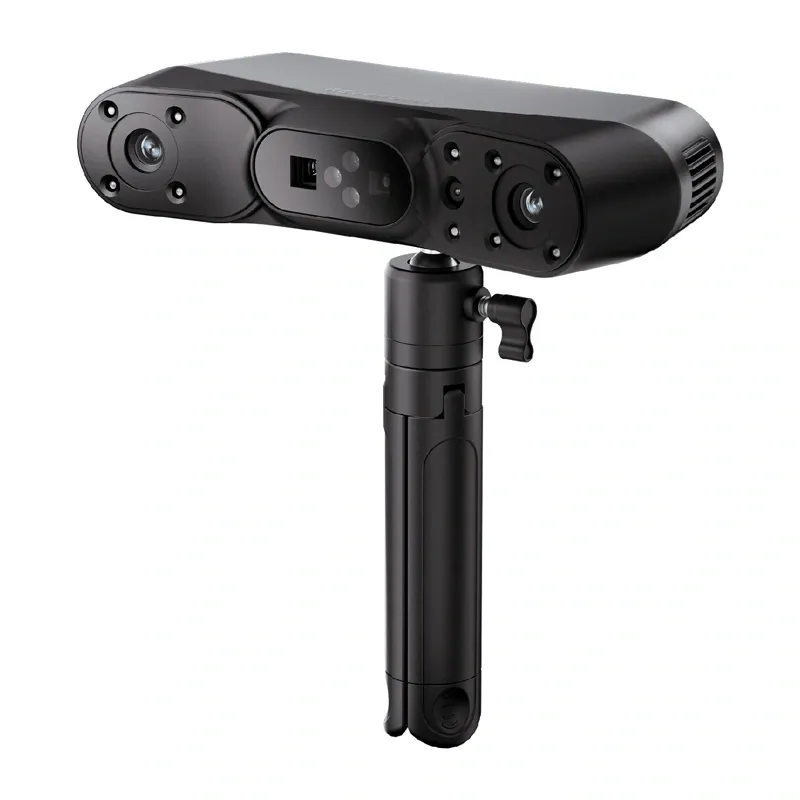

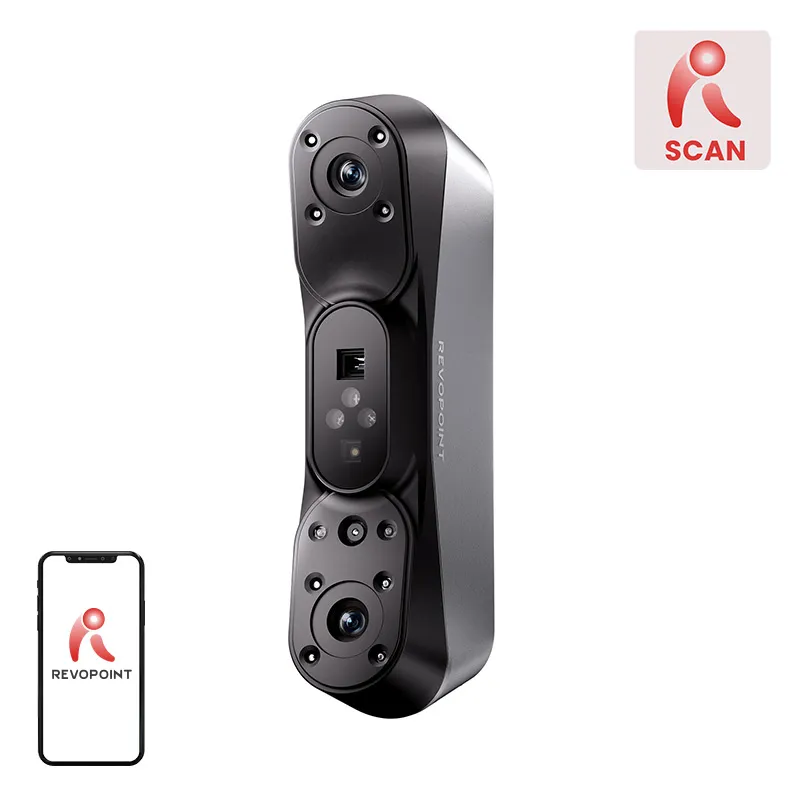

Revopoint POP 4 Premium 3D Scanner

Revopoint POP 4 3D Scanner – Premium Version

The Revopoint POP 4 is an advanced 3D scanner designed for both handheld and desktop use, featuring three data capture technologies: blue multi-line laser, full-field infrared structured light, and VCSEL projection. It offers accuracy up to 0.03 mm in laser mode, RGB color scanning, real-time AI segmentation, and supports Gaussian Splatting models. The scanner can capture objects ranging from 10 × 10 × 10 mm to 2 × 2 × 2 m. Connectivity options include Wi-Fi 6 and USB-C, and it is compatible with Windows, macOS, Android, and iOS platforms. This makes it ideal for product design, reverse engineering, quality control, object digitization, and preparing models for 3D printing.

High Accuracy for Demanding Applications

In multi-line laser mode, the POP 4 achieves a single-measurement accuracy of up to 0.03 mm, enabling the capture of fine details in mechanical parts, technical models, or industrial components. It provides a point cloud density of up to 0.05 mm for detailed models suitable for CAD software or 3D printing. Volumetric accuracy is 0.03 mm + 0.05 mm × L(m) in laser modes, ensuring the highest dimensional precision for demanding applications.

Three Scanning Technologies Tailored to Different Projects

The scanner uses three independent data capture technologies to suit various object types. The multi-line laser mode with 30 crosshairs is optimized for technical components requiring high accuracy. Full-Field HD uses infrared structured light for convenient scanning of faces, figures, and objects without markers. VCSEL mode is designed for larger objects and fieldwork, enabling fast data capture from greater distances.

Photorealistic Models with Gaussian Splatting Technology

Supporting Gaussian Splatting technology, the POP 4 creates photorealistic 3D objects with high visual quality. This technology accurately replicates light interaction with surfaces, improving rendering of reflections, translucency, hair, fabrics, and complex textures. Models can be exported in SPLAT format for use in VR, AR, animation, product visualization, and digital media projects.

Real-Time AI Segmentation

The scanner features Real-Time AI Segmentation that automatically analyzes the scanned scene during operation. AI algorithms recognize the object and remove backgrounds, work surfaces, and other unnecessary elements. It can also detect and remove hands holding the object, resulting in cleaner models and reducing post-processing time.

Fast Scanning and Smooth Object Tracking

The POP 4 captures between 15 and 105 frames per second depending on the mode. Laser mode captures up to 2 million points per second, maintaining high accuracy and smooth operation. Full-Field mode captures up to 5 million points per second, accelerating digitization of larger objects. These capabilities support scanning of small details and complex structures.

Scanning Dark and Shiny Surfaces

The advanced laser projection system effectively scans dark objects, mechanical parts, and many shiny materials without requiring matte spray. For transparent or highly reflective surfaces, using a dedicated scanning spray is recommended for optimal results.

Indoor and Outdoor Use

The scanner operates outdoors in light intensities up to 100,000 lux. VCSEL mode minimizes ambient light impact, enabling operation even in strong sunlight. The optional Outdoor Blue Filter allows detailed laser scans in very bright environments, doubling the laser mode's ambient light resistance from 50,000 to 100,000 lux.

Flexible Working Range

The working distance is adjustable by mode: 200–400 mm for multi-line laser mode, 250–500 mm for Full-Field HD and Hybrid HD modes, and 300–800 mm for VCSEL mode. This flexibility facilitates scanning of fine details, larger objects, and human figures.

Ready-to-Print Models for 3D Printing, CAD, and Reverse Engineering

Included Revo Scan 6 software enables capturing, editing, and exporting models in popular formats such as STL, OBJ, PLY, FBX, GLTF, 3MF, ASC, and SPLAT. This supports integration with CAD programs, design environments, and 3D printing preparation. The POP 4 is suitable for reverse engineering, product design, quality control, animation, digital content creation, and historical monument documentation.

Premium Version Features

The Revopoint POP 4 KS Special Edition expands the standard kit with a handle featuring a 5500 mAh battery, a carrying case, and magnetic Outdoor Blue Filters. These filters enable precise laser scanning in lighting conditions up to 100,000 lux, enhancing field project mobility and accuracy in bright daylight conditions.

Included Accessories

• Revopoint POP 4 3D Scanner
• Tripod
• USB Type-C to Type-C cable (2 m)
• Mini turntable
• Calibration board
• Reflective markers x 500
• Battery holder
• Power cable for battery holder
• Carrying case
• Magnetic Outdoor Blue Filters

Technical Specifications

• Manufacturer: Revopoint
• Model: POP 4
• Scanning technologies: Blue multi-line laser, Full-Field Structured Light (infrared), VCSEL Structured Light
• Accuracy of single laser measurement: up to 0.03 mm
• Accuracy of single Full-Field measurement: up to 0.08 mm
• Accuracy of single VCSEL measurement: up to 0.10 mm (300–500 mm), up to 0.20 mm (500–800 mm)
• Volumetric accuracy: 0.03 mm + 0.05 mm × L(m)
• Working distance for laser mode: 200–400 mm
• Working distance for Full-Field HD / Hybrid HD: 250–500 mm
• Working distance for VCSEL: 300–800 mm
• Minimum scanned object size: 10 × 10 × 10 mm
• Maximum scanned object size: 2 × 2 × 2 m
• Laser scanning speed: up to 105 fps
• Full-Field scanning speed: 15–20 fps
• VCSEL scanning speed: 20–30 fps
• Maximum laser points: up to 2,000,000 points/s
• Maximum Full-Field points: up to 5,000,000 points/s
• RGB camera: 1.3 MP
• Color scanning: Yes
• Outdoor working light - VCSEL: up to 100,000 lux
• Outdoor working light - laser: up to 50,000 lux (up to 100,000 lux with Outdoor Blue Filter)
• Connectivity: Wi-Fi 6, Bluetooth 4.1, USB-C 3.0
• Supported systems: Windows 10/11, macOS 11 or later, Android 9.0 or later, iOS 14 or later
• Export formats: PLY, OBJ, STL, ASC, 3MF, GLTF, FBX, SPLAT
• Weight: 286 g
• Dimensions: 160 × 30 × 72 mm
• Power supply: DC 5 V / 2 A
