Creality Space Pi Plus V2 Filament Dryer

Creality Space Pi Plus V2 Filament Dryer

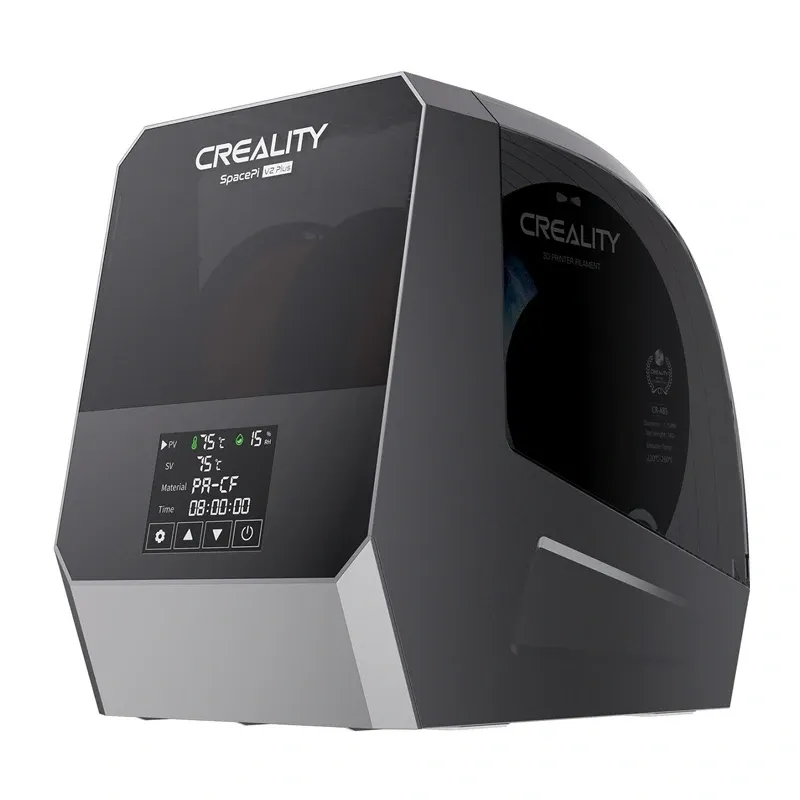

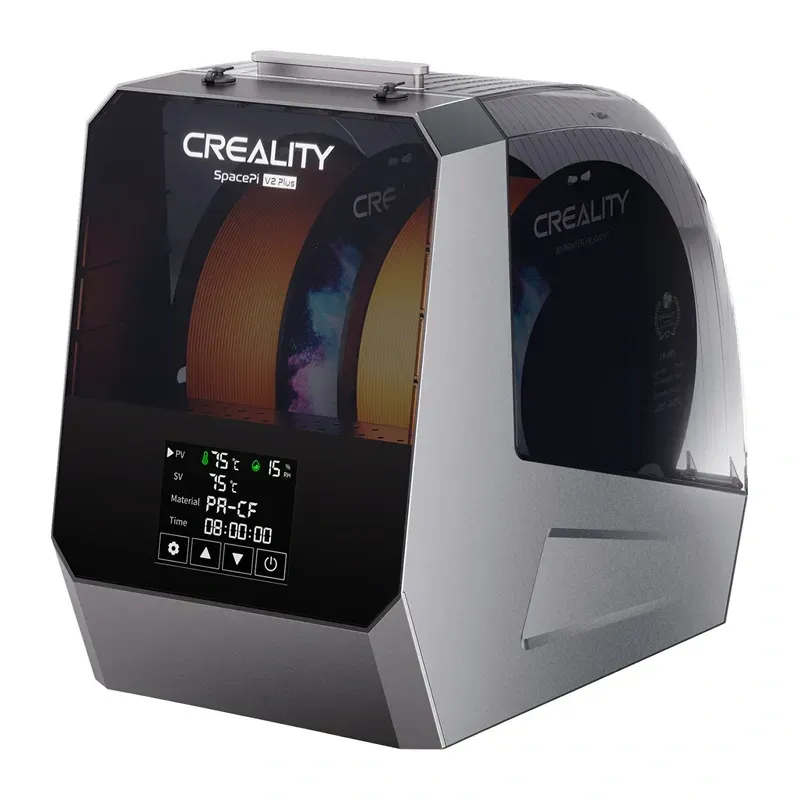

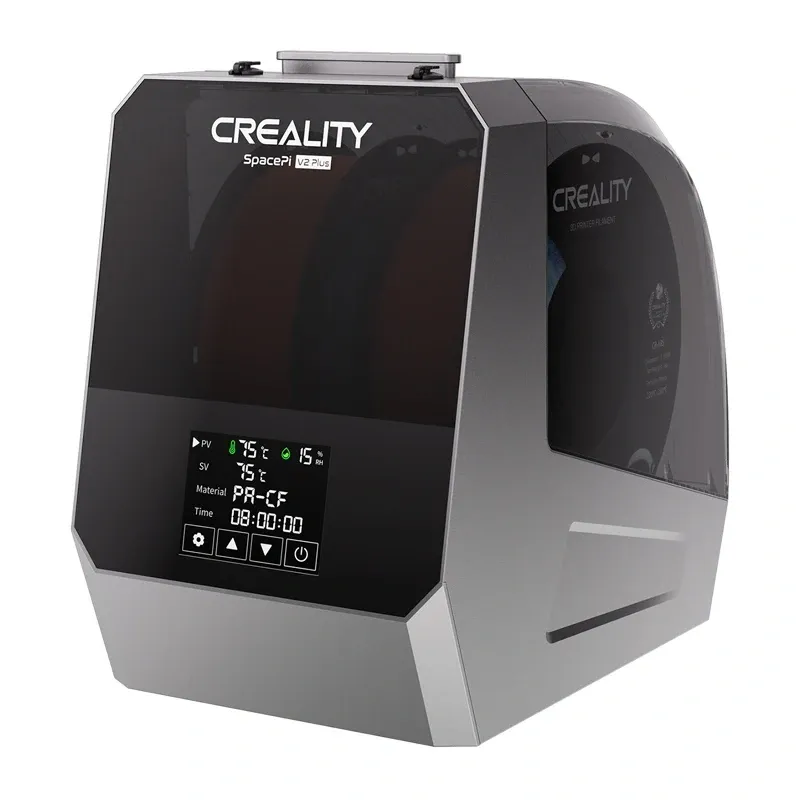

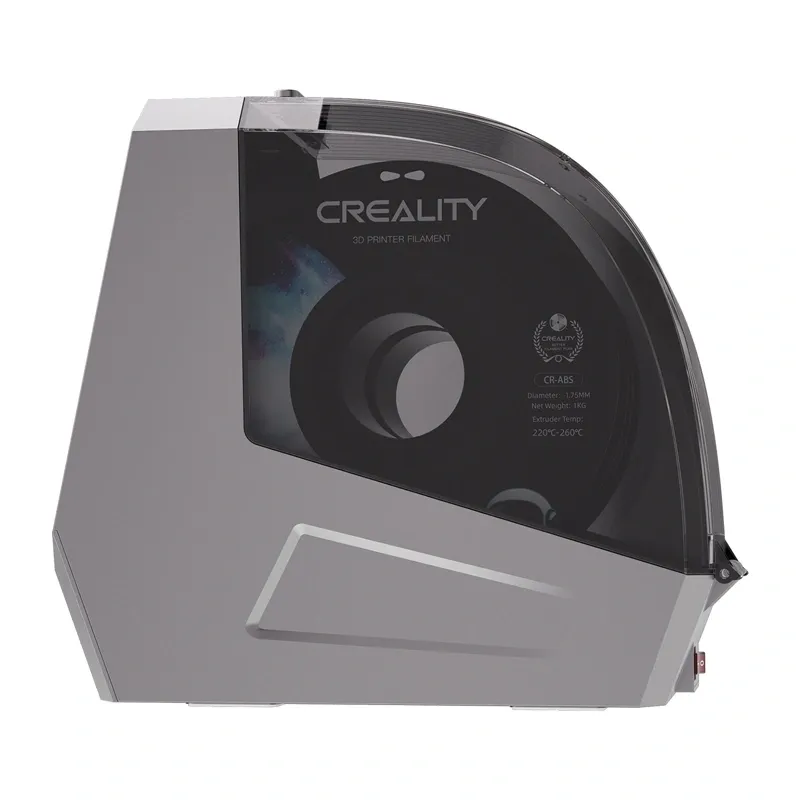

The Creality Space Pi Plus V2 is a 3D filament dryer designed to dry two spools simultaneously. It supports filament diameters of 1.75 mm and 2.85 mm and offers a temperature range of 45–75°C, preset drying programmes, a touchscreen, temperature and relative humidity (RH) monitoring, and 360° hot-air circulation. These features help keep filament in suitable condition before and during printing. Its compact design accommodates most spools up to 190 mm in diameter and 68 mm in width, making it suitable for home workshops and more demanding applications.

Drying Two Spools Simultaneously

The Space Pi Plus V2 can dry two filament spools at the same time, allowing you to prepare more material without running the process in multiple stages. The chamber accommodates spools up to 190 mm in diameter, making it compatible with many commonly available filaments. This saves time and helps streamline workflows during long prints and frequent material changes.

Temperature Control and Monitoring

The adjustable temperature range of 45–75°C lets you set drying conditions according to the filament being used. A built-in sensor monitors the temperature and humidity level (RH%) inside the chamber in real time, with current readings shown on the display. This makes it possible to follow the drying process and assess the material before printing.

360° Air Circulation and Air Duct Design

The dryer uses 360° hot-air circulation to distribute heat throughout the chamber. Its redesigned air duct speeds up heating and helps reduce cooler zones, promoting more even drying across the filament. A second-generation smart sensor helps maintain stable operating conditions while the dryer is running.

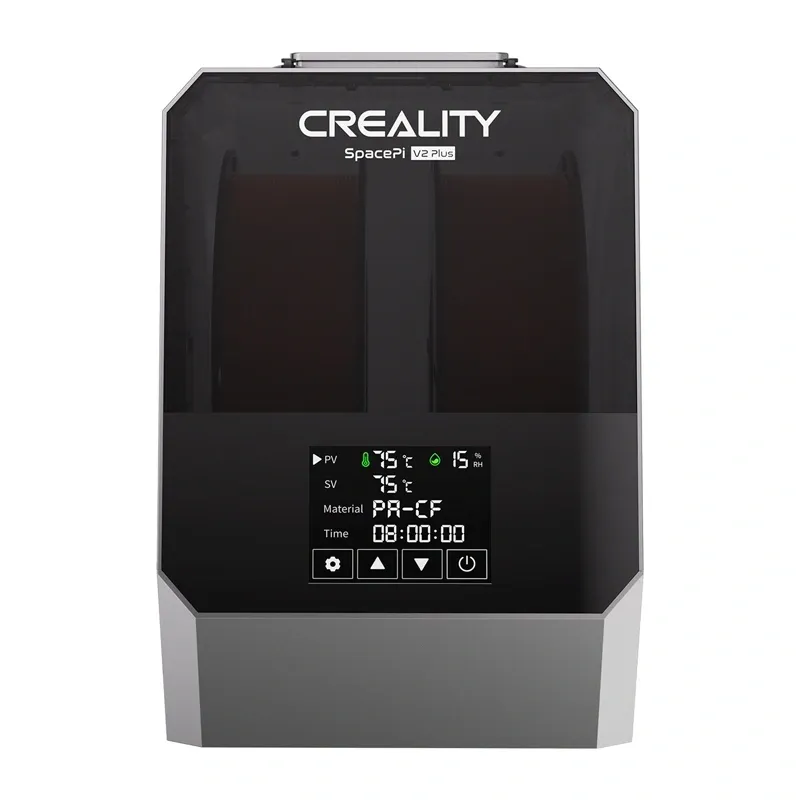

Touchscreen and Preset Programmes

The front-panel touchscreen lets you set the temperature and operating time and select a programme for the chosen material. Preset programmes simplify setup. Drying time can be adjusted from 1 to 48 hours to suit the filament’s moisture level.

Versatile Use

The Creality Space Pi Plus V2 is suitable for home 3D printing setups, design studios, schools, workshops and 3D printer farms. Its housing is made from ABS, PA and PC, and its 160 W rated power supports efficient heating. Compatibility with 1.75 mm and 2.85 mm filament makes it a practical addition for users working with different 3D printers and materials.

Specifications

• Manufacturer: Creality
• Model: Space Pi Plus V2 (DB-04S)
• Product type: 3D filament dryer
• Number of supported spools: 2
• Supported filament diameters: 1.75 mm and 2.85 mm
• Maximum spool diameter: 190 mm
• Maximum spool width: 68 mm
• Temperature range: 45–75°C
• Drying time: 1–48 hours
• Air circulation: 360°
• Display: Touchscreen displaying temperature and relative humidity (RH%)
• Rated power: 160 W
• Housing material: ABS / PA / PC
• Device dimensions: 186 × 301 × 278 mm
• Net weight: 1.9 kg
• Power supply: 100–120 V / 220–240 V, 50/60 Hz
