VariZoom VZ-SNAPCRANE9 3m camera crane
AI ASSISTANT CHAT
Or ask about:
| Type of Product | Video Rails |
| Type of Product | Tripod |
| Maximum load capacity, kg | 13.6 kg |
- 1. Evaluate your options.
- 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
- 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
Manager will check the availability of the items in the cart and send the loan application link. - 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
- 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
- 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
- 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
- *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
**The sequence of leasing steps is the same for leases offered by InCredit Group.
***In case of doubt, contact our consultants!
When using leasing services, carefully evaluate your options to repay the loan!Lease

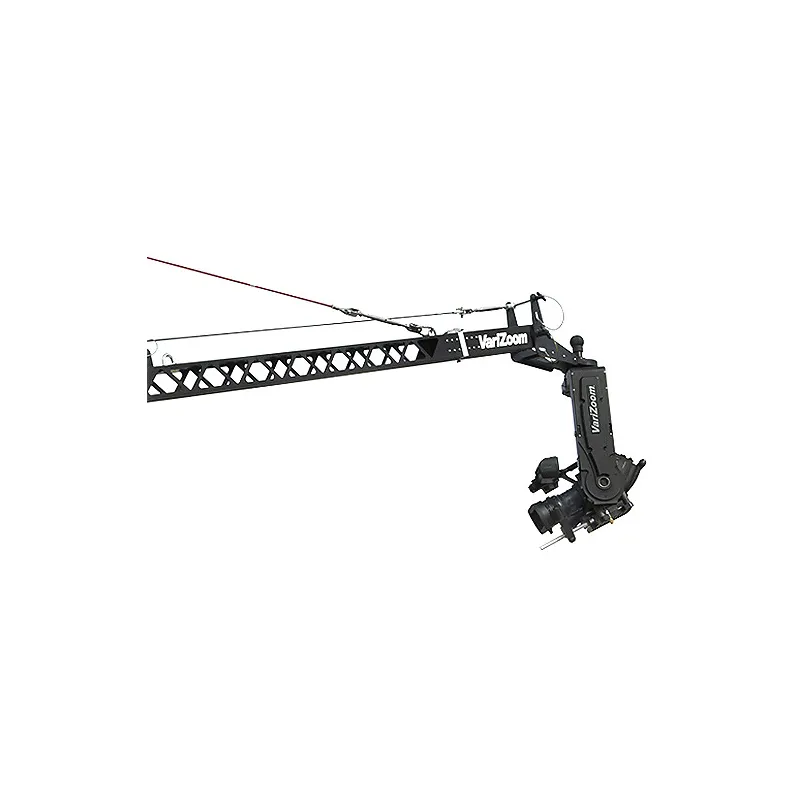

The VariZoom VZ-SNAPCRANE9 is a 9-foot (3-meter) modular camera crane and pan/tilt system that combines compact portability with professional strength, precision machining, and smooth cinematic movement, supporting camera payloads up to 30 lbs.
The VariZoom SnapCrane9 is a turnkey camera crane, jib, and pan/tilt system engineered for professional filmmakers who need maximum flexibility without sacrificing stability or build quality. Featuring a compact, modular design, the SnapCrane9 can be configured in up to four different length setups, making it suitable for tight spaces, studio work, or expansive cinematic moves.
Precision-machined aluminum and steel components form a rigid, cable-tensioned jib arm capable of reaching 10'9" (3.28m) horizontally and 9' (2.74m) vertically. A micro-adjust counterweight system with over 20 inches of sliding adjustment allows rapid and precise balancing without constantly adding or removing plates. (Counterweights sold separately.)
The tilting camera platform mounts via deluxe quick-release pins riding on sealed radial ball bearings for silent, smooth motion and includes a built-in spirit level. The pan/tilt base is engineered with sealed bearings, oversized fasteners, and a heavy-duty variable drag brake system that adds resistance without dangerous hard locks enhancing safety during operation.

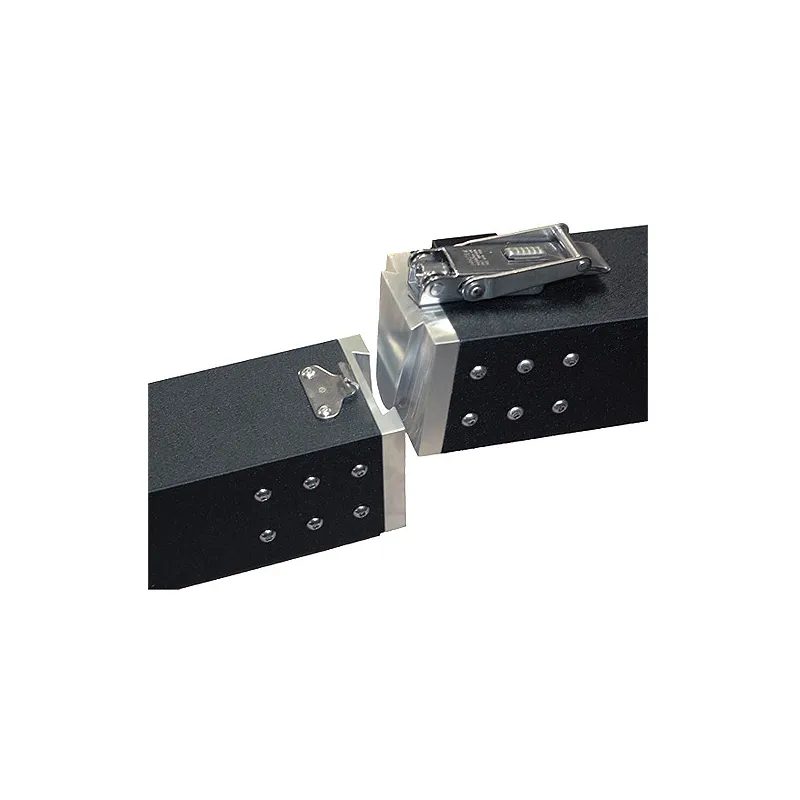

Each crane section connects via machined dovetail joints with redundant safety locks, while stainless aircraft-grade quick-release pins ensure fast, tool-free assembly. The modular cable tensioning system increases rigidity while keeping overall weight manageable.
The SnapCrane9 ships with a heavy-duty padded soft case, individual protective sleeves for each arm section, and includes the DCR100 dolly and TCR100 crane tripod, providing a complete, production-ready crane solution designed for long-term reliability and safe operation.
Key Features- 9' (3m) professional camera crane & pan/tilt system
- Compact, modular design with multiple length configurations
- Precision-machined aluminum and steel construction
- Supports cameras up to 30 lbs
- 10'9" horizontal reach, 9' vertical movement
- Micro-adjust sliding counterweight system (weights sold separately)
- Silent, smooth tilting camera platform with built-in level
- Cable-tensioned jib arm for maximum rigidity
- Machined dovetail joints with redundant safety locks
- Stainless steel aircraft-grade quick-release pins
- Heavy-duty pan/tilt base with variable drag brake system
- Includes TCR100 crane tripod and DCR100 dolly
- Ships in padded soft carrying case (optional rolling hard case available)
- VariZoom SnapCrane9 modular jib/crane arm sections
- Tilting camera platform with quick-release pins
- Pan/tilt base with brake system
- Modular cable tensioning system
- TCR100 Crane Tripod
- DCR100 Dolly with padded carrying case
- Padded soft crane case with shoulder strap
- Individual padded sleeves for crane arm sections
Crane System
- Horizontal Reach 10'9" (3.28m)
- Vertical Movement 9' (2.74m)
- Assembled Length 9'3" (2.82m)
- Tripod to Camera Distance 6'7" (2m)
- Folded Length 55" (139.7cm)
- Payload Capacity Up to 30 lbs (13.6kg)
- Mid-Size Setup Capacity 50 lbs (22.7kg)
- System Weight (Mid-Size) 49.9 lbs (22.6kg)
Pan / Tilt
- Pan Range 360°
- Tilt Drag One setting
- Tilt Lock No
- Pan Lock No
- Spring-Loaded Counterbalance One setting
- Head Arm Leveling Manual
- Leveling Indicators None
Construction
- Materials Steel and Aluminum
- Counterbalance System Round weights (purchased separately)
- Tripod Attachment VariZoom specific
- Head Attachment VariZoom specific
