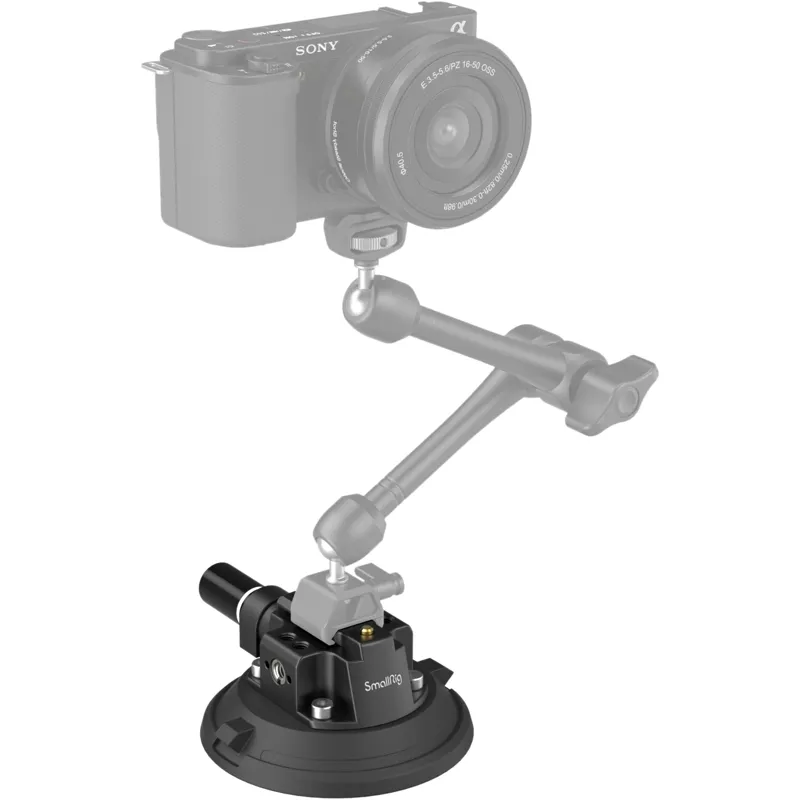

SmallRig 4122 4" Suction Cup Camera Mount

Product Composition and Materials

• Includes a 4" suction cup mount, hand pump, and dust cover.
• Constructed mainly from robust and wear-resistant NBR, aluminum alloy, ABS, and stainless steel.
• Designed to operate in temperatures ranging from -20°C to 60°C.

Suction Performance and Load Capacity

• Powerful suction force with maximum horizontal suction capacity of 50 kg and maximum vertical suction capacity of 35 kg.
• Recommended maximum load capacity between 2 to 4 kg depending on application.
• Maintains suction force for up to 24 hours; suction force should be checked regularly.

Mounting and Compatibility

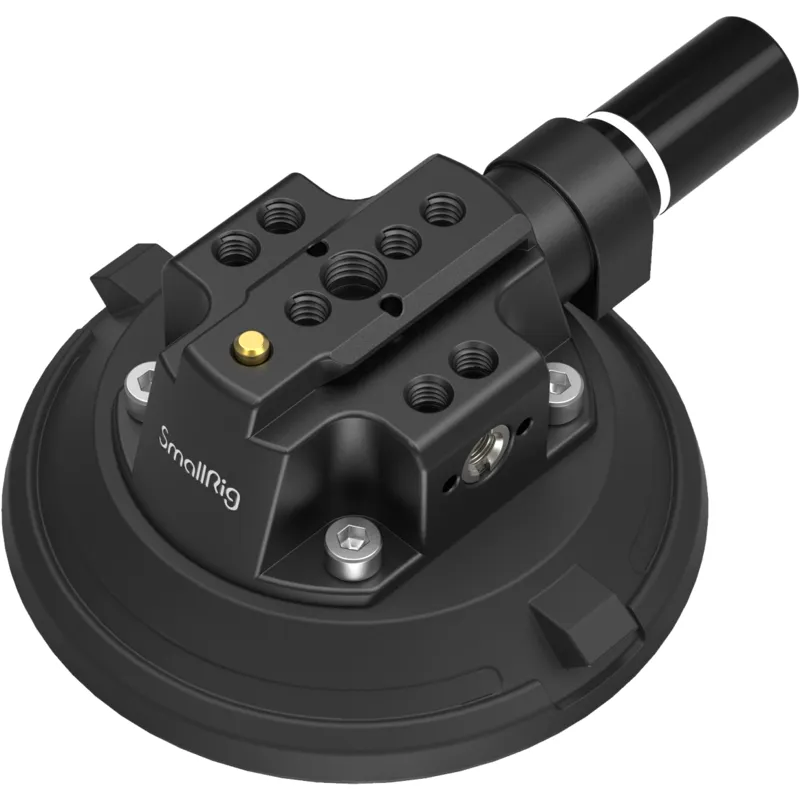

• Equipped with multiple accessory mounting points: 1/4"-20 threaded holes, 3/8"-16 threaded holes, and ARRI 3/8"-16 locating holes.
• Compatible with various SmallRig accessories such as models 3757, 3873, 3874, 3875, 2906, 2070, 2115, and others.

Operation and Safety Features

• Manually pumped and locked with a safety-line indicator to ensure vacuum integrity and reliability.
• When the safety-line indicator shows vacuum loss, the plunger should be pumped until 100% vacuum pressure is restored.
• Includes a dust cover to protect the suction cup when not in use, extending service life.

Usage Recommendations and Warnings

• Suitable only for clean, dry, smooth, and glossy surfaces; not suitable for rough, wet, uneven, dirty, fragile, painted, or porous surfaces.
• Not recommended for surfaces such as natural marble, old tiles, breathable wallpaper, diatom mud walls, unpainted wood, frosted glass, or other rough or breathable materials.
• When used on vehicles, it is advised to use a cable tether and limit load to no more than 2 kg; vehicle speed should remain below 80 km/h with suction force checked every 2 hours.
• Always keep the suction cup and filter cotton intact and clean.
• Improper use or mounting on unsuitable surfaces may cause damage and void after-sales service.

Dimensions and Weight

• Product dimensions: 139.6 x 105.8 x 50.2 mm
• Package dimensions: 162 x 121 x 71 mm
• Product weight: approximately 264 g ±5 g
• Package weight: approximately 378 g ±5 g

Disclaimer

Please mount the suction cup camera mount only on recommended surfaces and check suction force at least every four hours to ensure safety.
