SmallRig 6" Suction Cup Camera Mount 4114

SmallRig 6" Suction Cup Camera Mount 4114

The SmallRig 6" Suction Cup Camera Mount 4114 includes a suction cup mount, sucker, hand pump, and dust cover. The suction cup mount is made from robust and wear-resistant NBR material, capable of operating in temperatures ranging from -20°C to 60°C. It maintains excellent airtightness and resists deformation, making it suitable for clean, dry, and smooth surfaces.

Key Features

• Industrial-grade suction cup mount secured by a hand pump for safety and reliability.
• Constructed from unique materials offering excellent airtightness and wear resistance for continuous, stable, and high-strength suction force.
• Powerful suction force lasting up to 24 hours with a maximum horizontal load capacity of 80 kg and vertical load capacity of 60 kg.

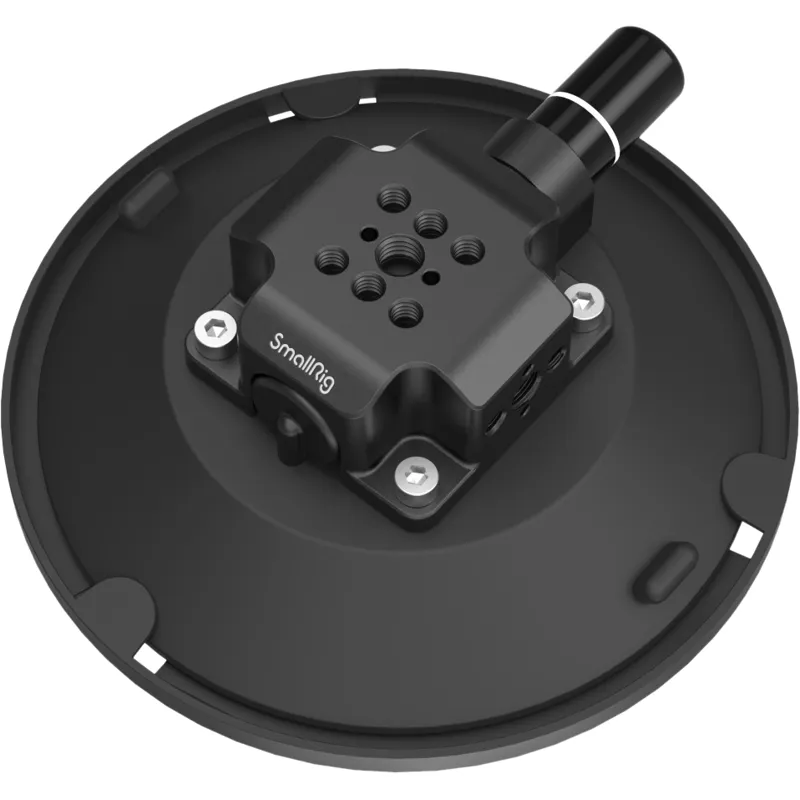

• Multiple accessory mounting points including 1/4"-20 threaded holes, 3/8"-16 threaded holes, and ARRI 3/8"-16 locating holes.

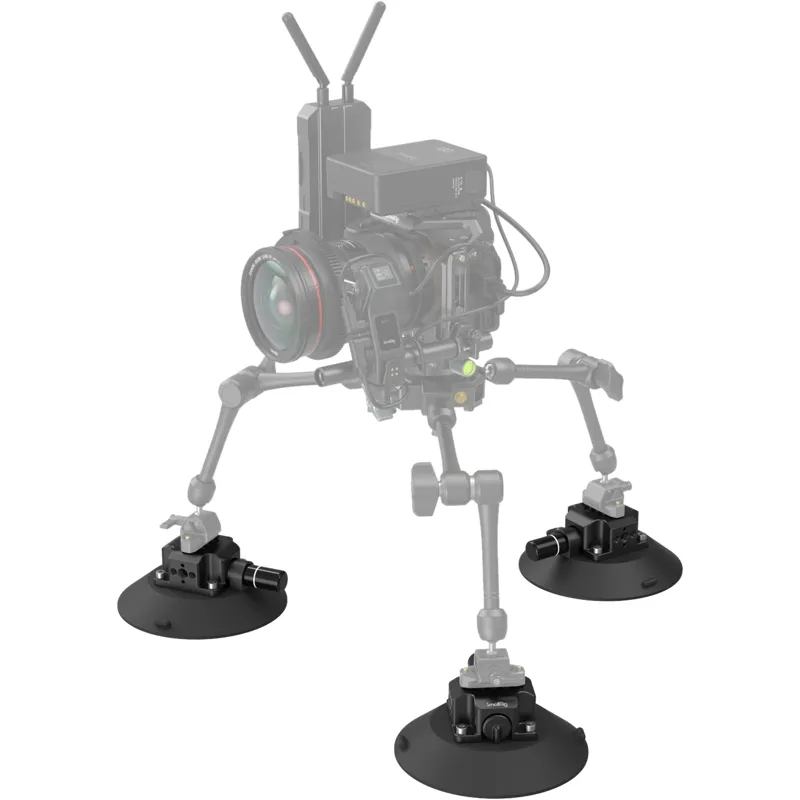

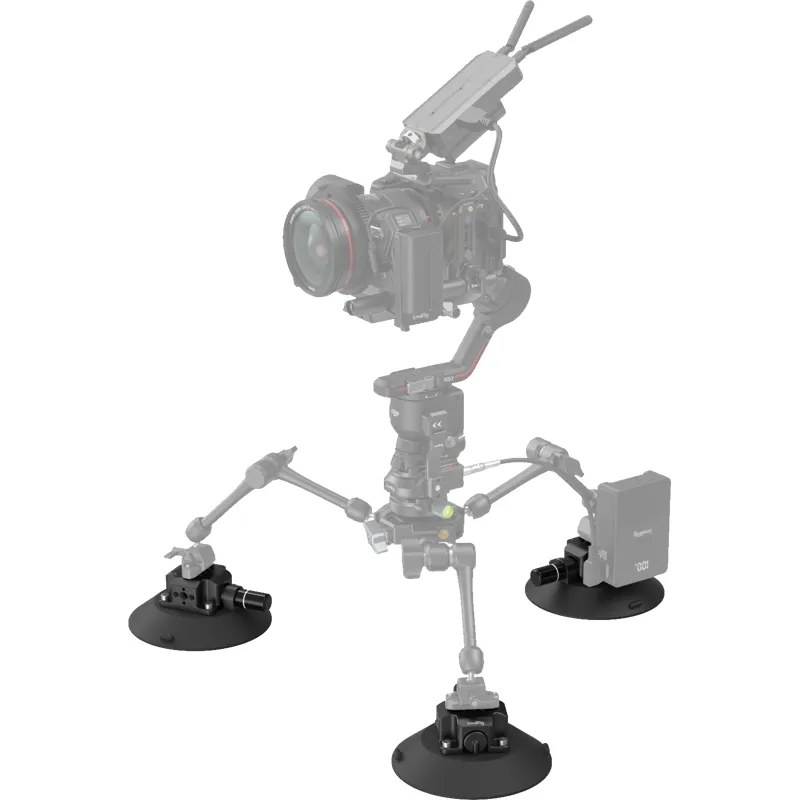

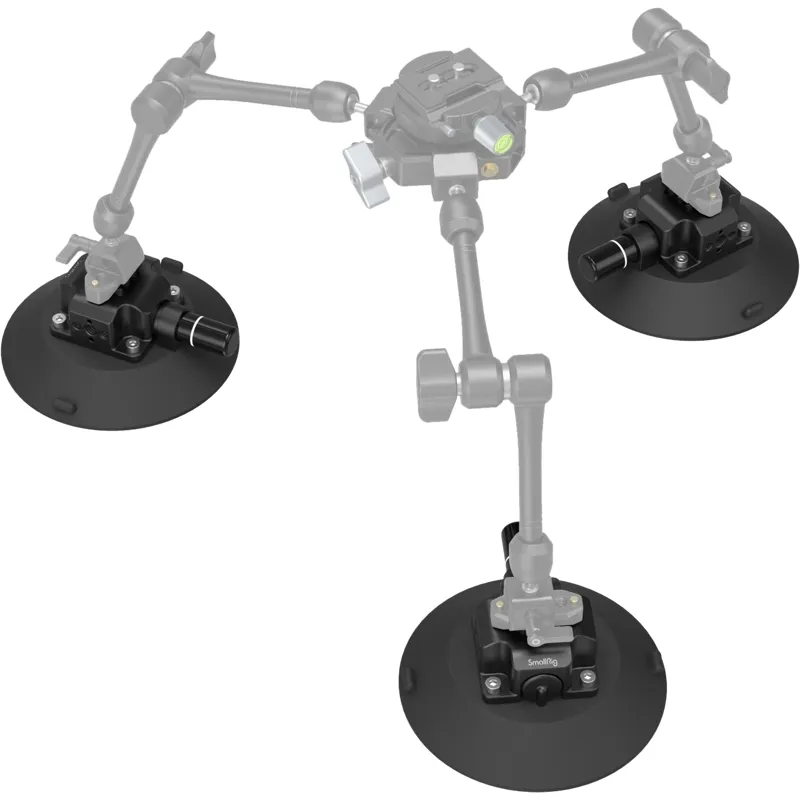

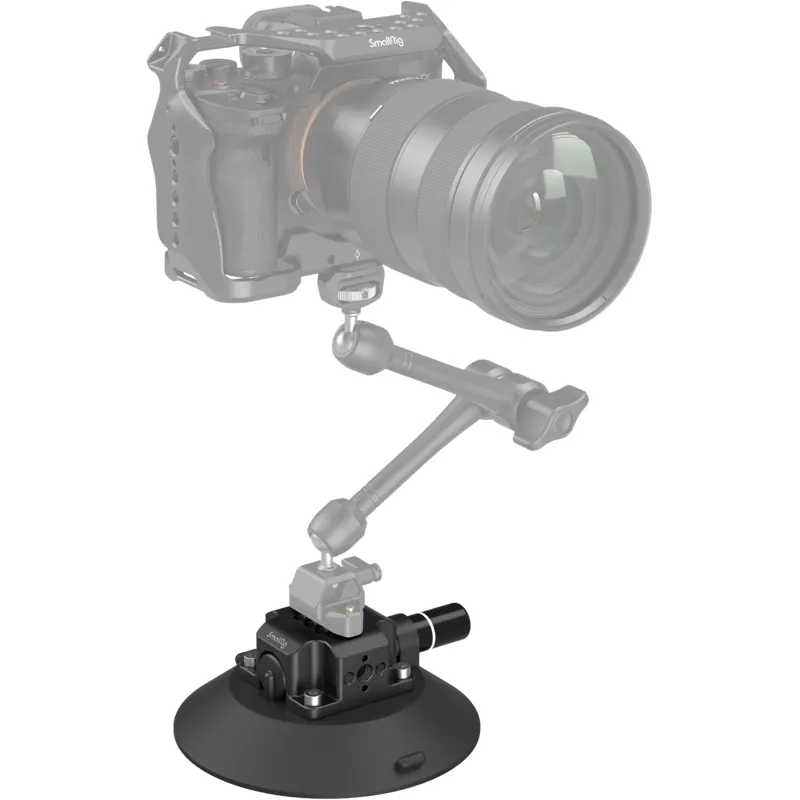

• Supports attachment of various magic arms (models 3873, 3874, 2906B, 2070B, 2115C, etc.) for enhanced expandability.
• Includes a dust cover to protect the suction cup when not in use, extending service life.

Specifications

• Product Dimensions: 159.0 x 159.0 x 60.9 mm
• Package Dimensions: 184 x 178 x 80 mm
• Product Weight: 482 g ± 5 g
• Package Weight: 680 g ± 5 g
• Materials: Aluminum Alloy, NBR, ABS, Stainless Steel

Usage Notes and Warnings

• Suitable only for clean, dry, and smooth surfaces; not recommended for rough, wet, uneven, dirty, fragile, painted, or porous surfaces such as natural marble, old tiles, breathable wallpaper, diatom mud walls, unpainted wood, or frosted glass.
• Always keep the sucker and filter cotton intact and clean.
• Apply carefully on coated surfaces.
• When the safety-line indicator shows vacuum loss, pump the plunger until 100% vacuum pressure is restored.
• When mounted on a stationary object, maximum horizontal suction is 80 kg and vertical suction is 60 kg; check suction force every 24 hours.
• When used on vehicles, use with a cable tether, limit load to 8 kg, drive smoothly below 80 km/h, and check suction force every 2 hours.
• Improper use may cause damage not covered by after-sales service.

Additional Information

Indoor experiments indicate a vertical load capacity of up to 8 kg when used with a 14" lever arm. Laboratory data is for reference only; actual product performance may vary due to enhancements.

Package Contents

• 1 x 6" Suction Cup Camera Mount
