Tentacle Sync TRACK E Pocket Audio Recorder Basic Box (TR1-B)
This Basic Box is stripped down to its essentials. It contains one TRACK E Pocket Audio Recorder, a belt clip, and a charging cable. Nothing else.
The TRACK E Basic Box is for those who already have all the accessories and high-quality microphones but need more TRACK E audio recorders for more multitrack possibilities.
Key Features
- 32-bit Float Recording / 24-Bit Recording
- Control Multiple Devices via Bluetooth (iOS & Android)
- Wireless Timecode Sync (Bluetooth) / Jam-Sync via Cable
- Up to 10 hours Operating Time
- 2 Year Limited Warranty
- Designed and Manufactured in Germany
The TRACK E Timecode Audio Recorder is nearly as small as the Timecode Sync Generator SYNC E, making it portable for on-the-go recording. It allows mobile operation as a recorder for a clip-on microphone, eliminating the need for a radio link. It offers timecode synchronization over Bluetooth based on the established Tentacle Sync technology, functioning in environments where regular wireless transmitters fail.
Controllable through the Setup App for iOS or Android, it integrates seamlessly into the SYNC E synchronization network via Bluetooth. The TRACK E can also operate as a stand-alone device and can be jam-synced via cable.
In addition to 24-bit recording, TRACK E features 32-bit floating point technology for an extended dynamic range, preventing digital clipping. Users can treat audio similarly to RAW camera photo formats, allowing for adjustments in post-production.
The TRACK E uses a changeable microSD Card for audio recording, with an input limiter and high-pass filter ensuring pristine quality. A screwable mini jack connector provides secure microphone connections, and it supports a wide range of microphones with 5V plugin power. A free license of Tentacle Sync Studio (Mac) is included with every TRACK E purchase.

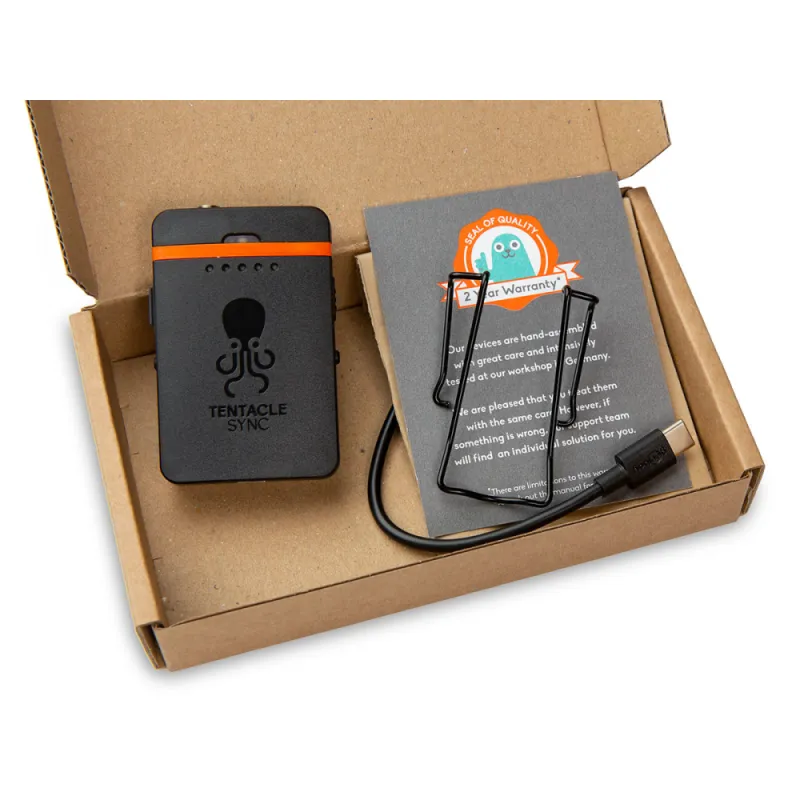

In the Box
- 1x Tentacle Sync TRACK E Timecode Audio Recorder
- 1x Belt clip made of powder-coated stainless steel in black
- 1x USB-A to USB-C Charge cable (USB 2.0)
- 1x Software license for Tentacle Sync Studio (macOS)
Specifications
Recording
- Recording tracks: 1 (mono)
- Sampling Rate: 48kHz
- Recording Bit-Depth: 32-bit Float / 24-bit
- File Formats: WAV (BWF)
- Recording time: 30hrs (24-bit) / 23hrs (32-bit) with 16GB card
- Storage Media: microSDHC Card up to 32GB (Recommended Class 10)
- Signal Processing: Low Cut Filter, Limiter (24-bit only)
Connectivity
- Microphone Input: 3.5mm Jack (lockable)
- Microphone Plug-in Power: 5V (switchable)
- Headphone Output: 3.5mm Jack (dual mono)
- USB Connection: USB-C (USB 2.0)
- USB Modes: Charging, Card Reader, Firmware Update
Performance
- Frequency Response: 20Hz - 20kHz
- Gain Range: +6 to +46 dB
- Dynamic Range: 110 dB typ
- THD+N: -85 dB (0.05)
Control & Synchronization
- Bluetooth: 5 (Low Energy)
- Remote Control & Monitoring: Tentacle Setup App (iOS/Android)
- Synchronization: Via Bluetooth or Jam-Sync via Cable
- Timecode Input: LTC via Microphone Input
- Timecode Output: N/A
- Frame Rates: SMPTE 12M / 23.98, 24, 25, 29.97, 29.97DF and 30fps
Power
- Power Source: Built-in rechargeable Lithium Polymer Battery
- Battery Capacity: 900 mAh
- Battery Operating Time: Up to 10 hours
- Battery Charging Time: max. 2 Hours
Size & Weight
- Dimensions: 47mm x 68mm x 19mm (1.85 x 2.67 x 0.74 inches)
- Weight: 58g (2.0 oz)
