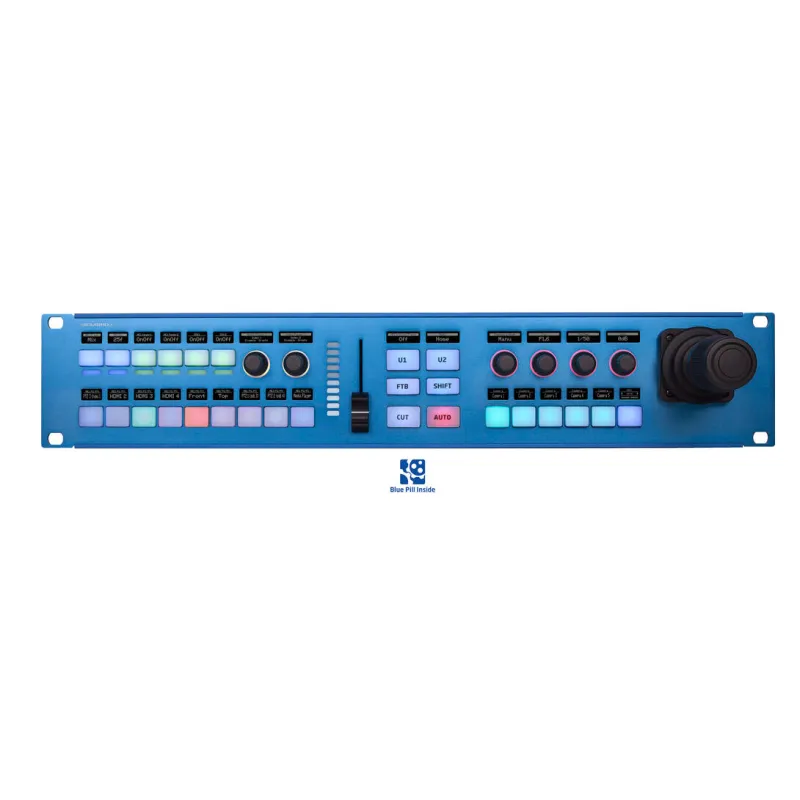

The SKAARHOJ Rack Fusion Live with Hall Effect Joystick and Blue Pill Inside is a rack-mountable PTZ camera switcher and control surface featuring a Hall-effect joystick, OLED-labeled controls, and integrated skaarOS for advanced IP-based live production workflows.
This professional rack-mounted PTZ camera switcher is designed for broadcast control rooms, OB vans, and live production environments. Built on SKAARHOJ's Blue Pill Inside architecture with skaarOS, it provides powerful IP-based control over multiple PTZ camera systems from different manufacturers, including seamless integration with platforms like vMix, Blackmagic Design ATEM, and TriCaster workflows.
At its core, the unit features a high-precision Hall-effect 3-axis joystick that minimizes drift and ensures smooth, accurate camera movement. This is complemented by a transition fader with RGB LED position feedback, a dedicated M/E (Mix Effects) control section, and a custom 9-key bus row for fast switching and routing operations.
The control surface includes four-way programmable buttons with OLED legends, backlit encoder knobs with OLED labeling, and RGB multi-level LED indicators. These provide clear visual feedback for camera selection, presets, and live production status, allowing operators to manage complex multi-camera setups efficiently.
Designed for flexibility, the Rack Fusion Live can be used either as a 19" rack-mounted unit or as a desktop controller. It supports both Power over Ethernet (PoE) and 12V DC power input, enabling simple installation in both fixed and mobile production environments.
Key Features
- Blue Pill Inside with skaarOS integrated system
- Rack-mounted PTZ camera switcher and controller
- Hall-effect 3-axis joystick with low drift precision
- Transition fader with RGB LED metering bar
- 4-way programmable buttons with OLED legends
- Backlit encoder knobs with OLED displays
- Custom 9-key bus row for fast switching
- M/E (Mix Effects) control section
- RGB LED multi-level metering indicators
- IP-based PTZ camera control and configuration
- Rack or desktop mounting flexibility
- PoE and 12V DC power support
Controls & Interface
- Hall-effect 3-axis joystick
- Transition fader with RGB LED bar
- 4-way programmable OLED buttons
- Backlit encoder knobs with OLED labels
- 9-key custom bus row
- M/E section with user/shift controls
Connectivity
- 1 RJ45 Ethernet (IP control, PoE supported)
- 1 Micro-USB input
Power
- PoE supported
- 12V DC input
- Power consumption 5.76 W
- Includes 12V power adapter
Physical
- Dimensions 482 x 88 x 46 mm (19 x 3.5 x 1.8 in)
- Cable length (power supply) 1.5 m
- Rack-mountable form factor
