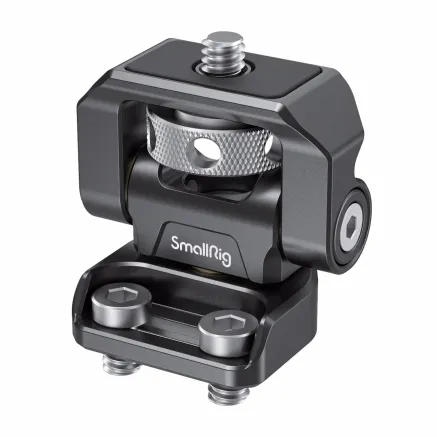

SmallRig 2904B Swivel & Tilt Adjustable Monitor Mount

SmallRig 2904B Swivel and Tilt Adjustable Monitor Mount

The SmallRig 2904B is a robust swivel and tilt adjustable monitor mount designed to securely attach your monitor to a camera cage or other mounting systems using two captive 1/4"-20 screws. It features a 1/4"-20 screw on the top to mount a monitor, light, or microphone, providing versatile mounting options.

Key Features

• Supports 5" and 7" onboard monitors weighing up to 1.5 kg
• Enables 360° sideways swivel and 170° tilt with free stop at any position
• Adjustable tightness on each axis via included Allen wrench for precise positioning
• Thumbscrews with slots for easy tightening and secure mounting
• Secures firmly to cage or handle through two captive 1/4"-20 screws
• Protective rubber padding on top to prevent damage to mounted devices
• Bottom includes two additional 1/4"-20 threaded holes for further DIY customization

Compatibility

• SmallHD Focus Series
• SmallHD Focus OLED Series
• SmallHD UltraBright Series
• SmallHD 500 Series and 700 Series
• Atomos Ninja Series
• Atomos Shogun Flame
• Blackmagic Video Assist 5" and 4K 7"
• Other accessories weighing less than 1.5 kg

Specifications

• Product Dimensions: 42 x 39.8 x 30 mm
• Package Dimensions: 76 x 63 x 40 mm
• Net Weight: 69 g ± 5 g
• Package Weight: 95 g ± 5 g
• Material: CNC-machined aluminum alloy and stainless steel

Package Contents

• 1 x Monitor Mount
• 2 x Allen Wrenches
