SmallRig 3158 Manfrotto Quick Release Plate for DJI RS 2 / RSC 2 / Ronin S Gimbal

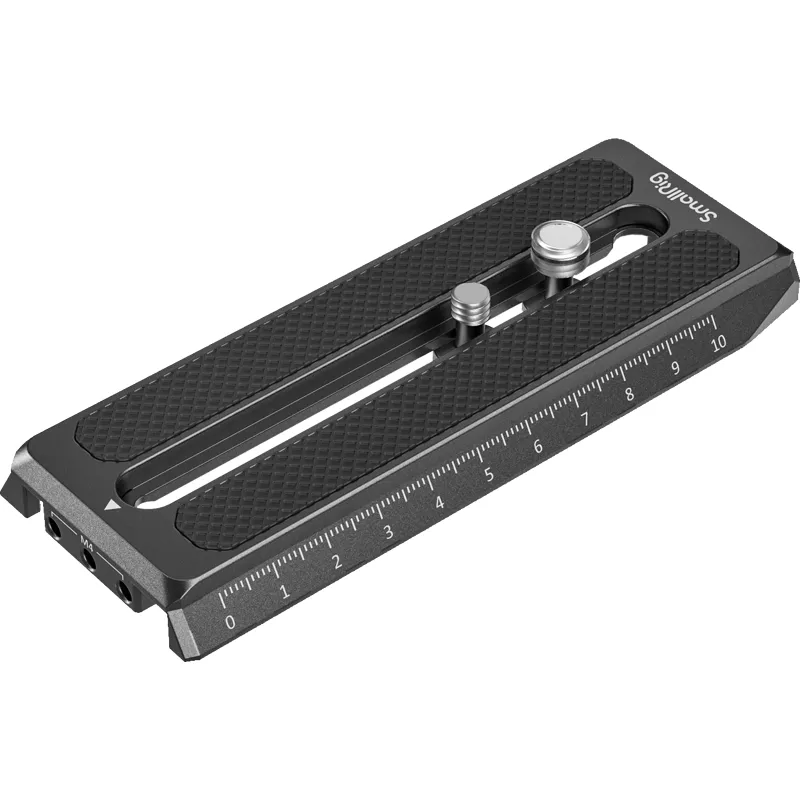

SmallRig 3158 Manfrotto Quick Release Plate

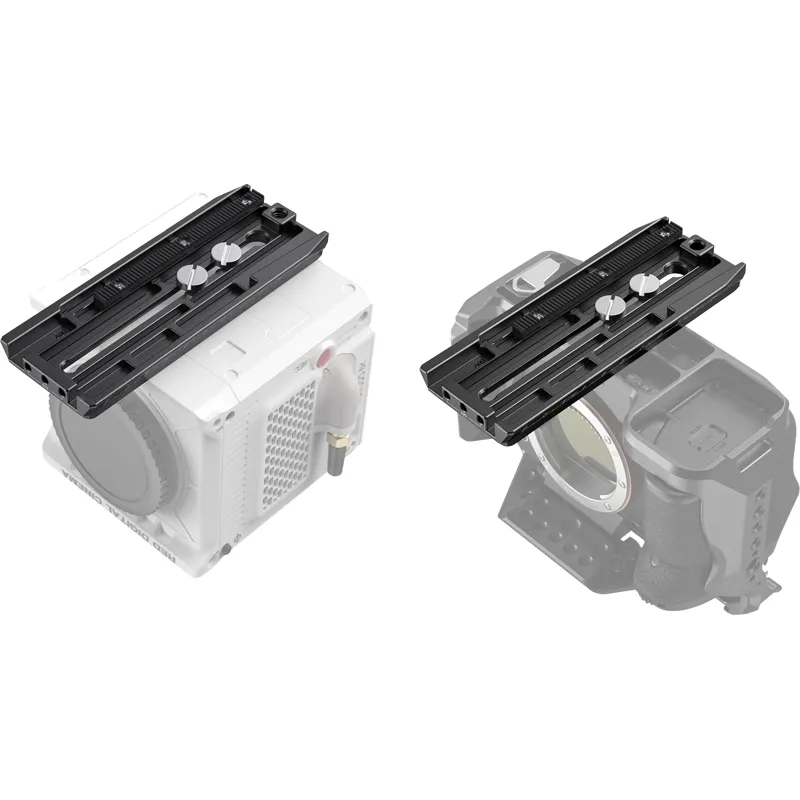

The SmallRig 3158 is designed to facilitate quick switching of cameras between Manfrotto tripods, shoulder rigs, gimbals, and other shooting setups. It integrates a Manfrotto quick release plate that securely attaches to the bottom of the camera or camcorder using two screws, effectively preventing twisting during use.

Key Features

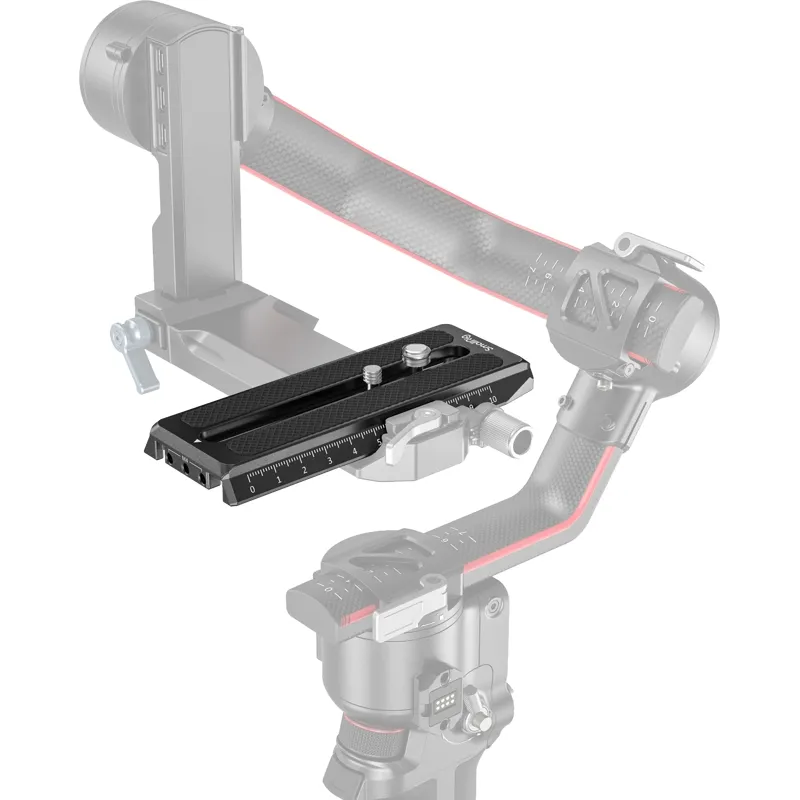

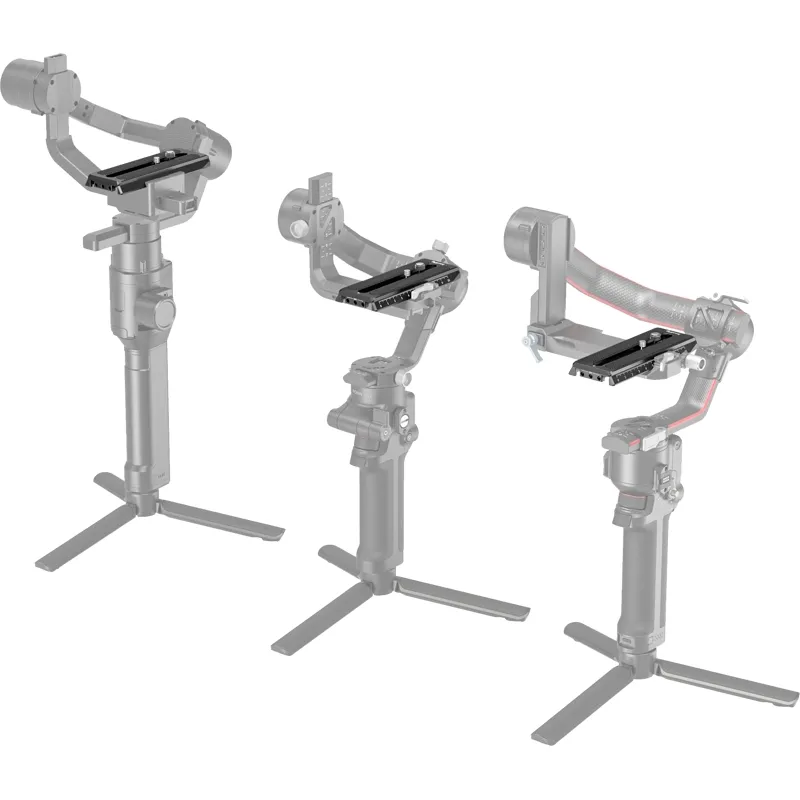

• Compatible with DJI RS 2, RSC 2, RS 3, and Ronin-S gimbals.
• Enables rapid camera switching between gimbal, Manfrotto tripod, and shoulder shooting modes.
• Secures camera or camcorder with two screws to prevent twisting.
• Includes a 1/4" (6.35 mm) threaded hole on the bottom for attaching counterweights or the SmallRig counterweight kit 3125 to achieve balance.

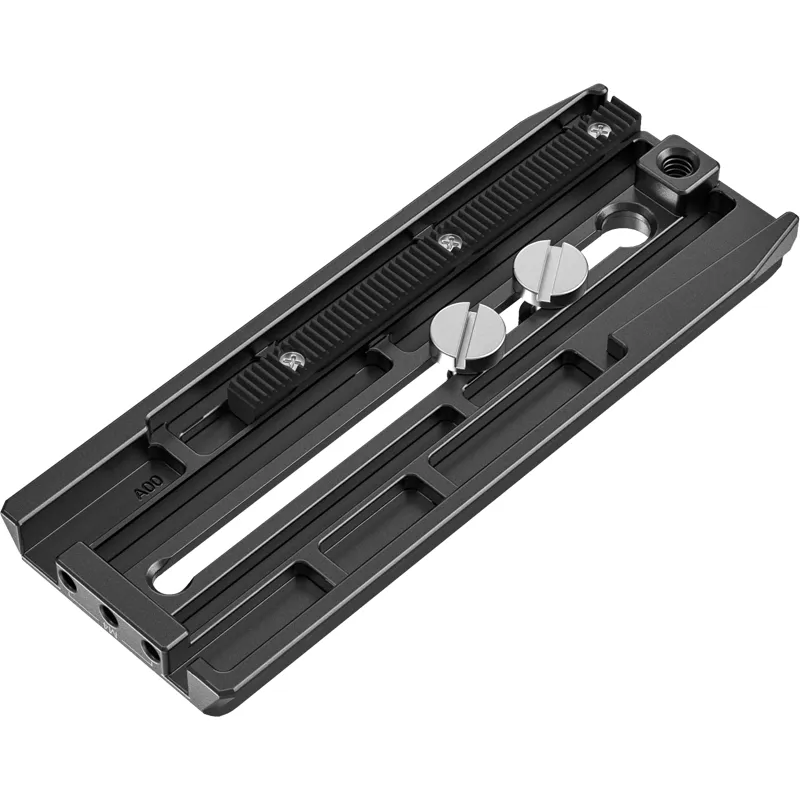

• Features a removable gear rack on the bottom to adjust the camera position forward or backward for precise balance.
• Equipped with three M4 threaded holes on the front, compatible with the original follow focus rod mount for additional rigging options.

Compatibility

• DJI RS 2 / RSC 2 / RS 3
• DJI Ronin-S

Package Contents

• 1x Quick Release Plate

Specifications

• Product Dimensions: 129 x 49.5 x 18.5 mm
• Package Dimensions: 175 x 75 x 20 mm
• Net Weight: 88 g
• Package Weight: 124 g
• Material: Aluminum Alloy, Stainless Steel
