SmallRig 3154 Arca-Type Quick Release Plate for DJI RS 2 and RSC 2 Gimbal

SmallRig Arca-Type Quick Release Plate 3154

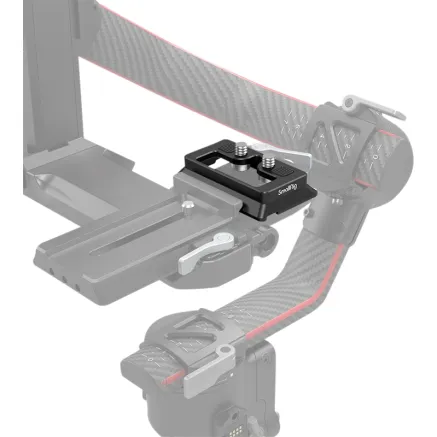

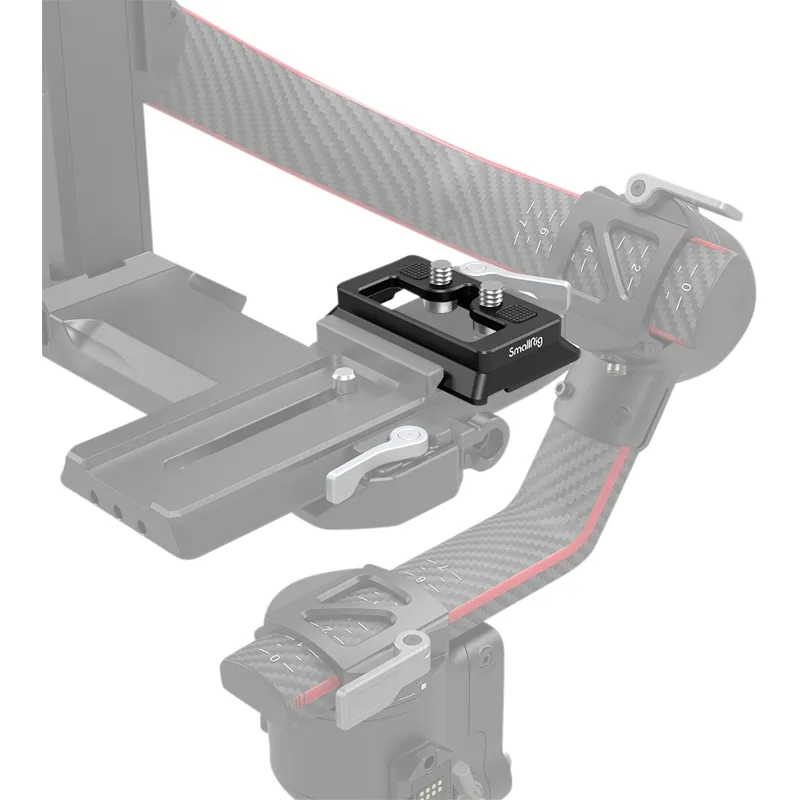

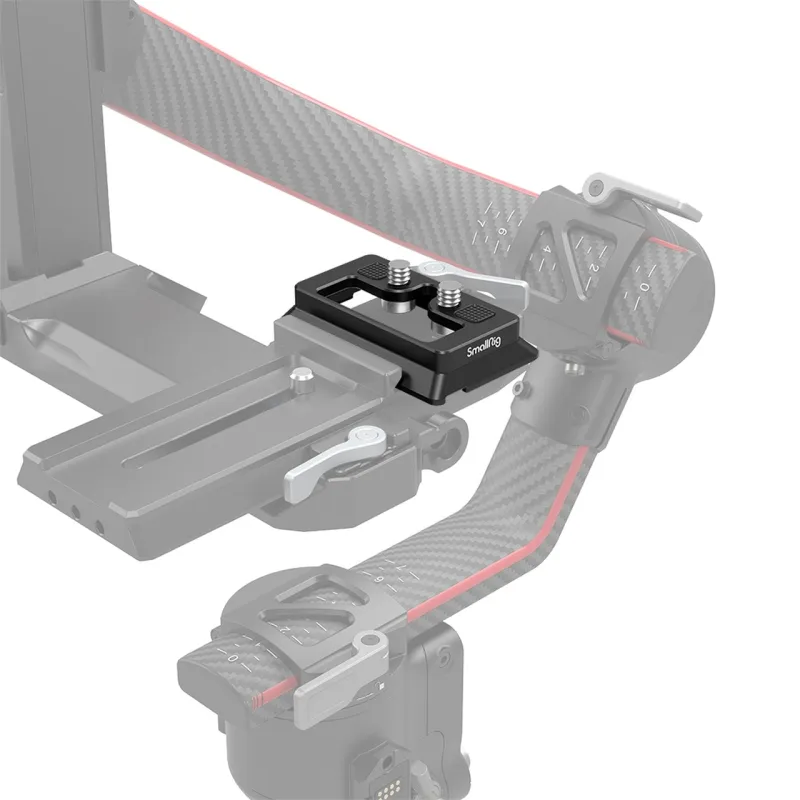

The SmallRig Arca-Type Quick Release Plate 3154 is engineered to securely attach camera cages to DJI RS 2 and RSC 2 gimbals. It uses two captive 1/4"-20 screws to lock the camera cage firmly, effectively preventing twisting issues common with original Arca plates that use only one screw.

Design and Compatibility

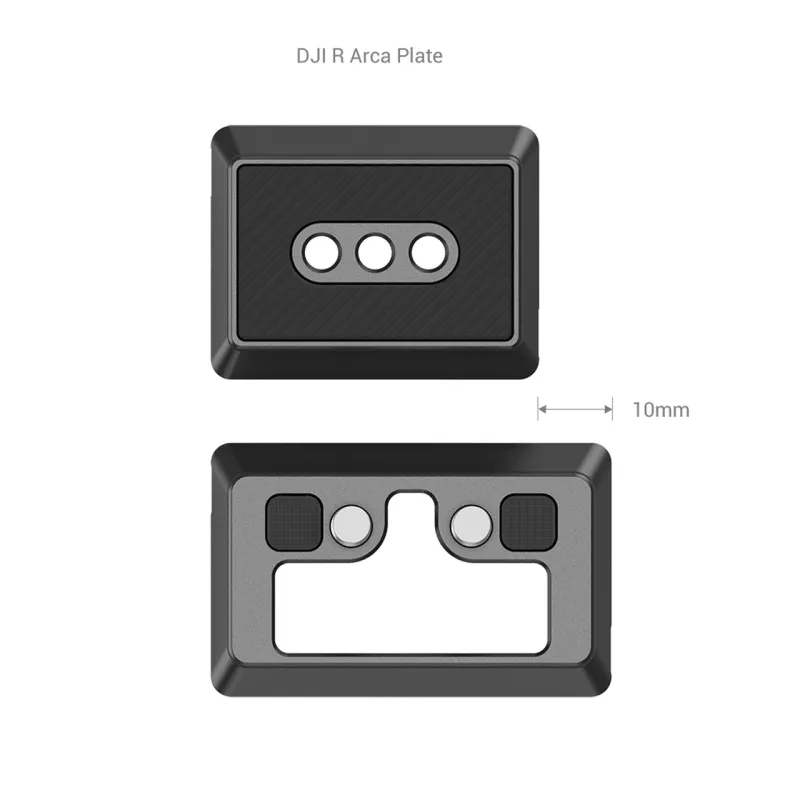

• The plate is extended by 10mm compared to the original Arca plate, providing increased horizontal adjustment range to accommodate cameras with special shapes, such as the BMPCC 4K camera equipped with a cage.
• The distance between the two locking screws is 18mm, making it compatible with most SmallRig cages including Sony A7S III cage 2999, Canon R5/R6 cage 2982, Nikon Z series cage 2926, and others.
• Features an open-middle design allowing access to most camera mounting screws through the plate, facilitating easy removal of the camera from the cage for mounting on tripods or other supports.
• Rubber pads are integrated to protect the camera cage from scratches and damage.

Key Features

• Designed specifically for SmallRig cages and DJI RS 2 and RSC 2 gimbals.
• Two captive 1/4"-20 screws lock the camera cage securely to prevent twisting.
• Extended length by 10mm increases the range for left and right horizontal adjustments.
• Compatible with SmallRig BMPCC 4K cage to assist in balancing setups.
• Open access to most camera cage mounting screws for convenience.

Specifications

• Material: Aluminum Alloy
• Product Dimensions: 60 x 38 x 12 mm
• Package Dimensions: 76 x 63 x 40 mm
• Net Weight: 20 g
• Package Weight: 50 g

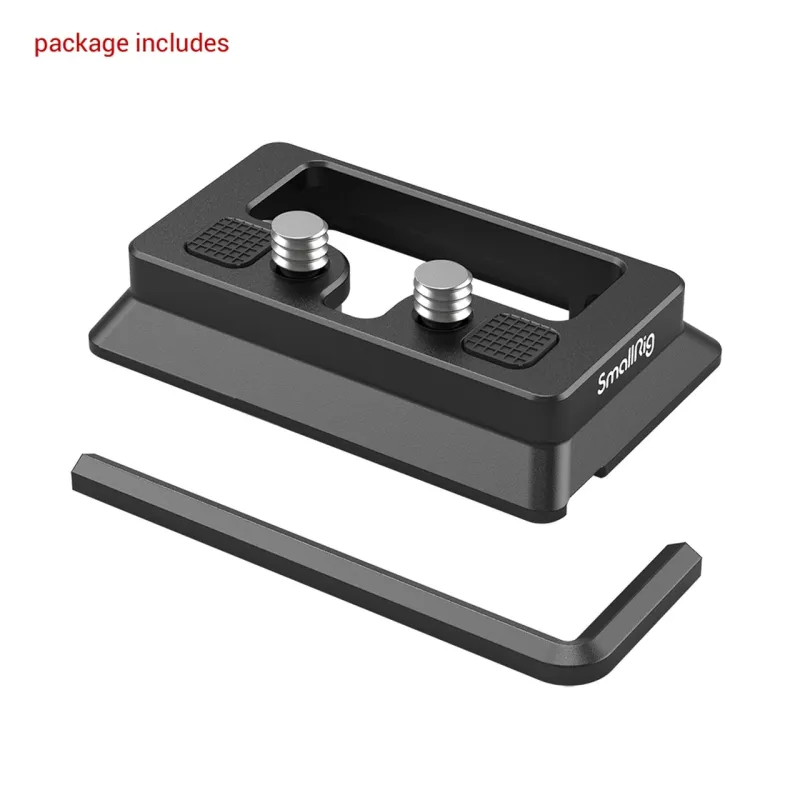

Package Contents

• 1 x Arca-Type Quick Release Plate 3154
• 1 x Allen Wrench

Compatibility

• DJI RS 2 Gimbal
• DJI RSC 2 Gimbal

Designer: Kevin Wong
