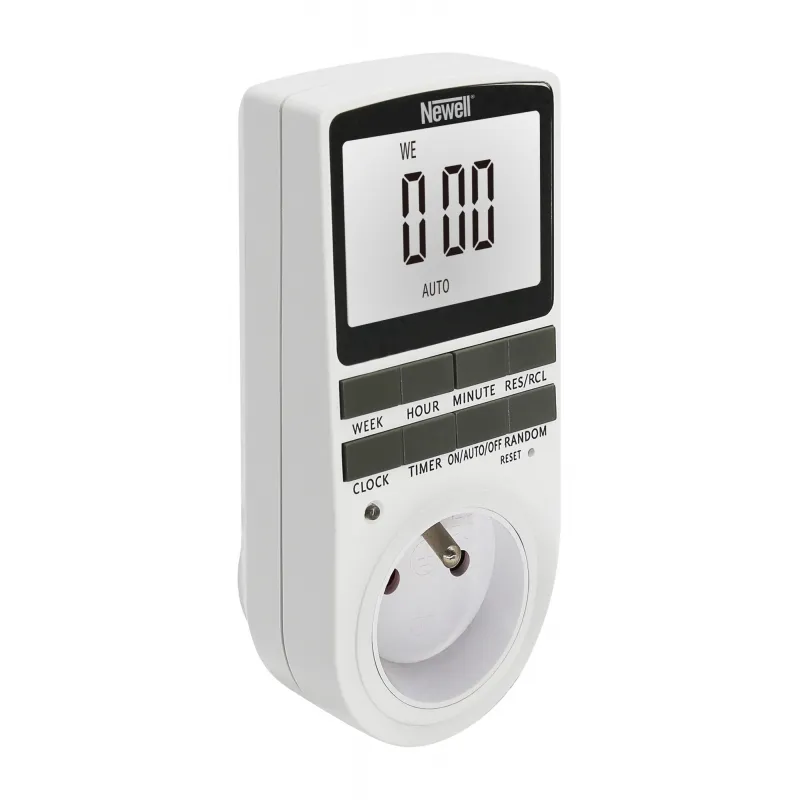

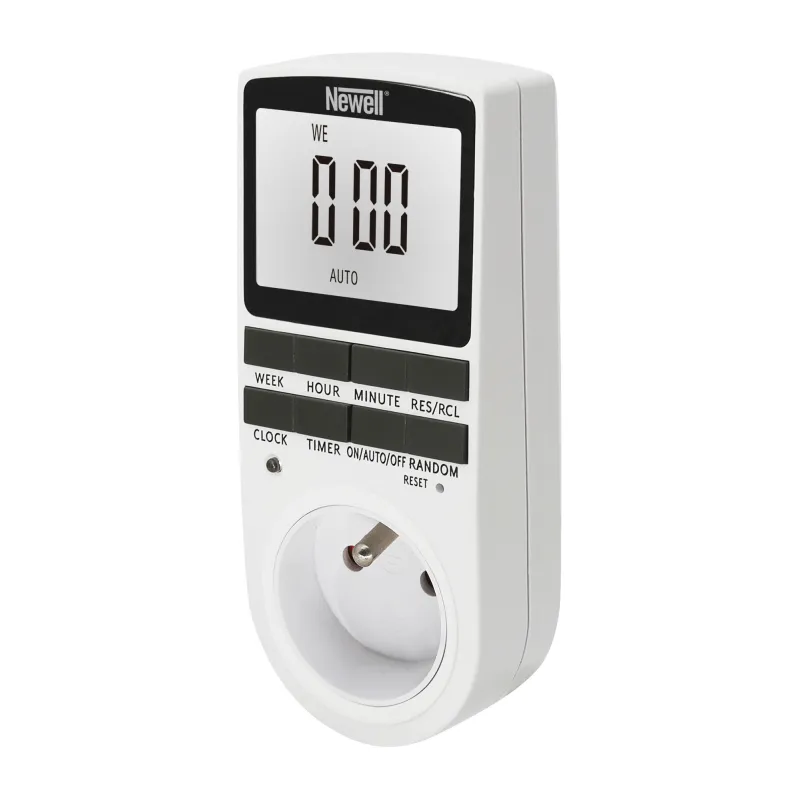

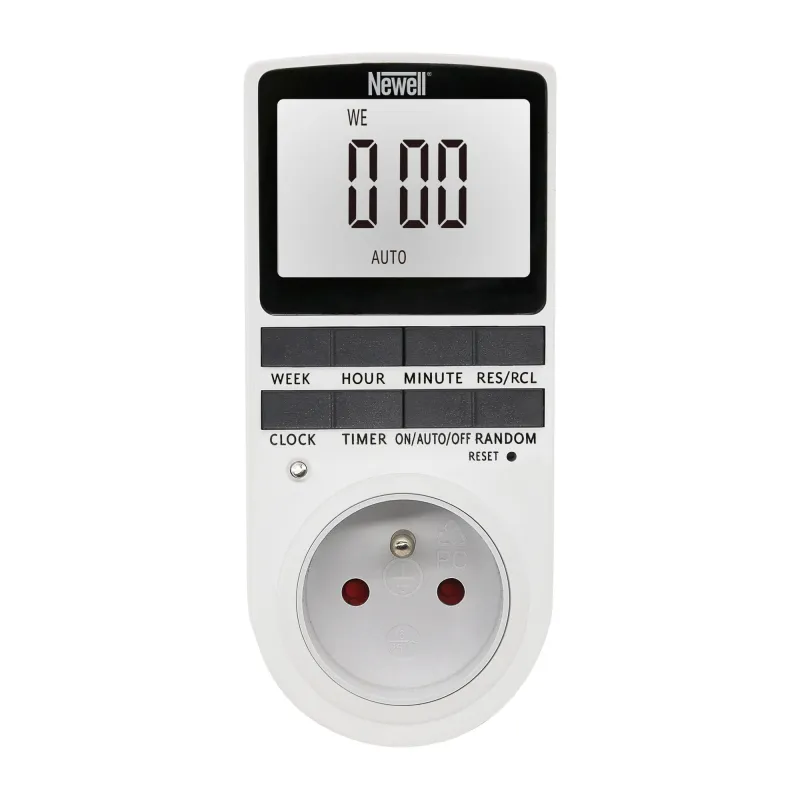

Newell Electronic Timer 2.0

Precise Device Scheduling

The Newell Electronic Timer 2.0 is designed for reliable and precise management of electronic devices in both home and office environments. It enables programming of up to 10 different on/off cycles within a 24-hour period or on specific days of the week, allowing tailored scheduling to suit your lifestyle.

Key Features

• Up to 10 programmable cycles: Schedule multiple switching events per day.
• Day-specific programming: Customize schedules for weekdays and weekends.
• Random activation function: Simulates presence by turning devices on and off at random intervals to enhance home security.
• Backlit LCD screen: Facilitates easy programming and status viewing even in low-light conditions.
• Manual override switch: Allows immediate switching on or off of connected devices.
• Optional daylight saving time (DST) configuration: Automatically adjusts for time changes.
• Compact design: Fits conveniently into any electrical socket.
• Energy management: Automates device operation to reduce power consumption and costs.
• 40-month manufacturer’s warranty: Ensures long-term reliability and support.

Functionality and Usage

The timer plugs directly into a standard electrical socket and controls connected devices according to programmed schedules. Its intuitive interface and ergonomic design make setup straightforward. The random mode activates devices at varying times between 2 and 32 minutes after the set time, effectively simulating occupancy to deter intruders.

With the ability to program different schedules for specific days, users can optimize energy use by adapting device operation to their weekly routines. The manual switch provides immediate control when needed, bypassing programmed cycles.

Technical Specifications

• Model: Newell 2.0 timer programmer
• Operating voltage: 230 VAC
• Battery: NiMH, 1.2 V
• Power consumption: < 0.9 W
• Response time: 1 minute
• Output power: 230 VAC / 16 A / 3680 W
• Dimensions: 60 x 130 x 76 mm
• Weight: 162 g

Applications

Ideal for automating lighting, ventilation, and other electrical equipment in homes and offices, the Newell timer enhances convenience, security, and energy efficiency. Its compact size and versatile programming options make it suitable for a wide range of devices and usage scenarios.
