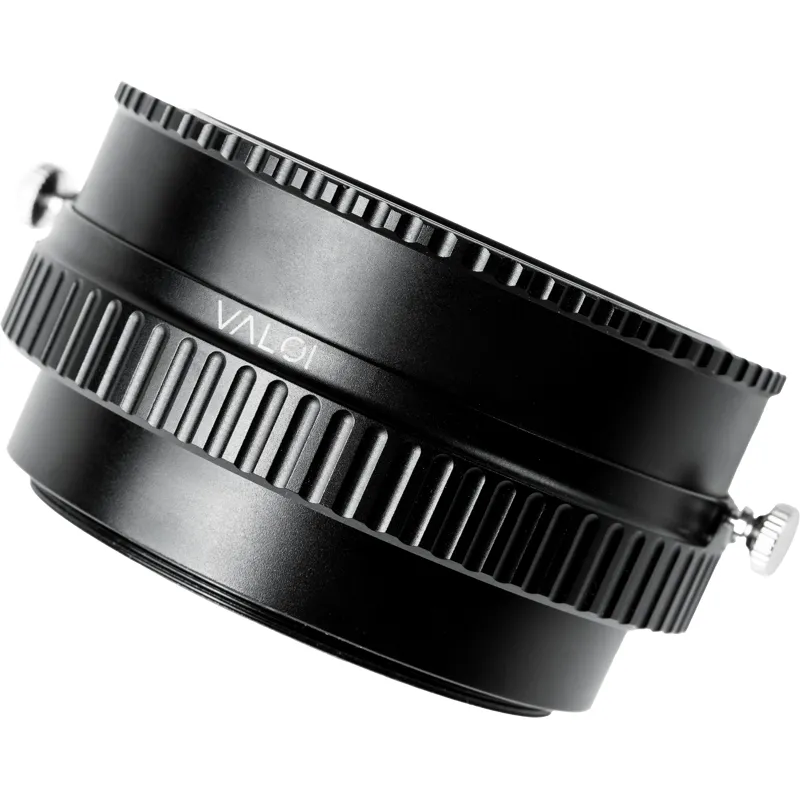

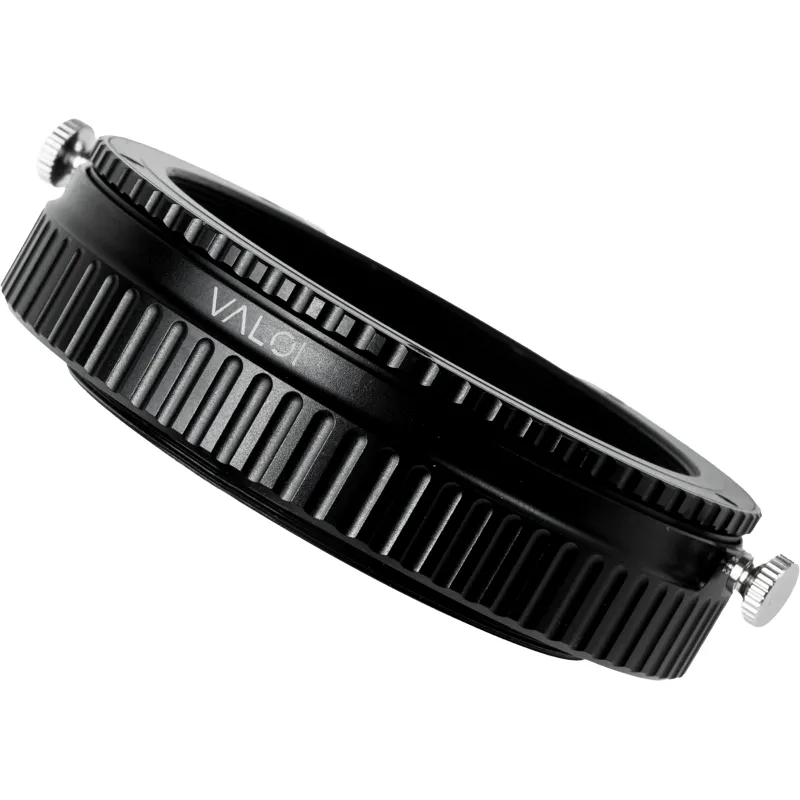

VALOI Easy Precision Framing Helicoid VLEZPFH

Helicoid for Easy35 and Easy120

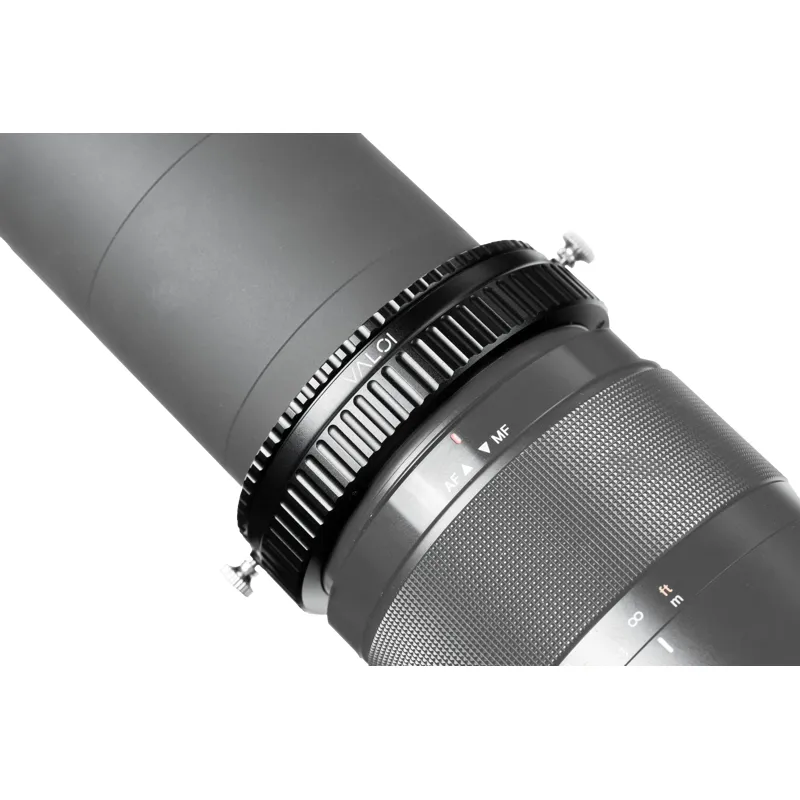

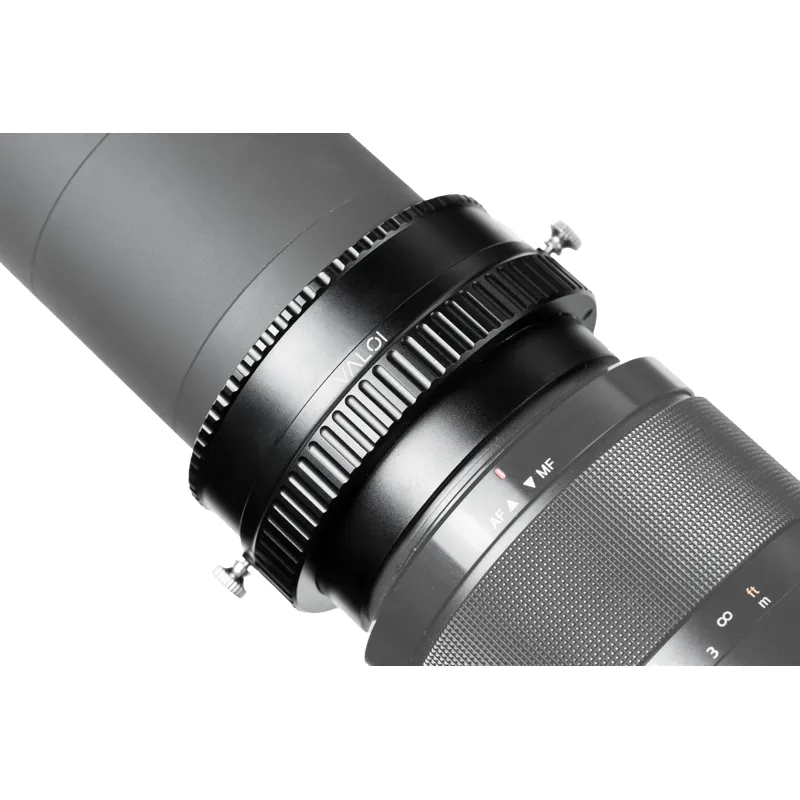

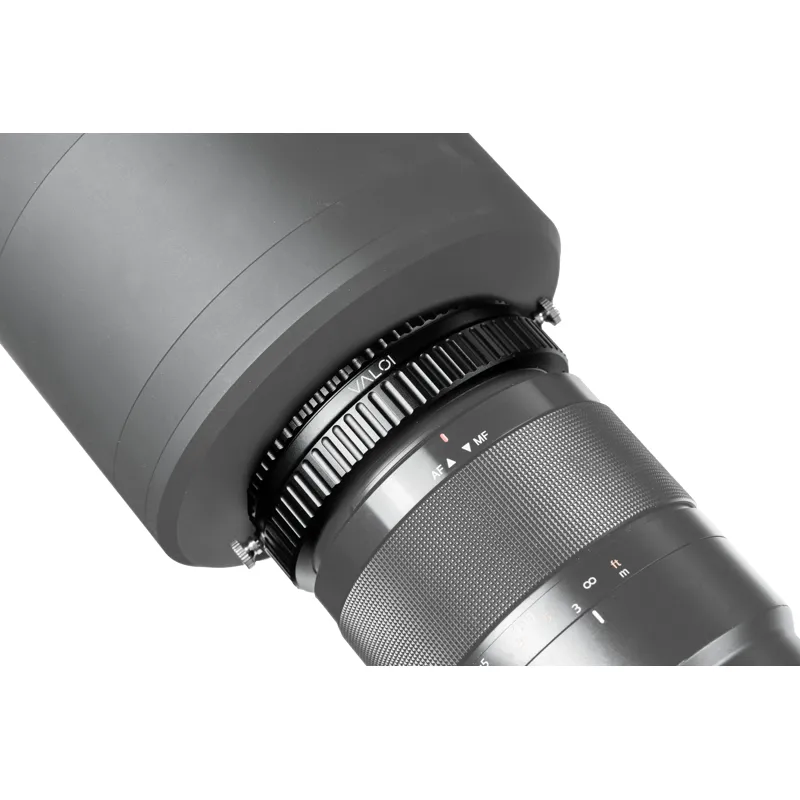

The VALOI Easy Precision Framing Helicoid is designed to attach to the distance tubes supplied with the Easy35 and Easy120 scanning systems. It is placed between the lens and the tubes, allowing for precise adjustment, locking, and then scanning.

Technical Specifications

• Thread size: 62x0.75 mm (compatible with Easy35 and Easy120)
• Length: approximately 20 mm when collapsed, extending up to 40 mm
• Adjustment range: 20 mm
• Core material: Brass for maximum precision and durability
• Shell and thread material: Anodized black aluminum for strength, rigidity, and lightness
• Locking mechanism: Two thumb screws to securely fix the helicoid length

Stepless Framing Adjustment

This helicoid allows for stepless (continuous) adjustment of framing beyond the standard tubes included with the Easy systems. While the smallest tube usually suffices for framing, this helicoid enables fine-tuning to achieve exact framing. This is particularly useful for maximizing resolution by avoiding cropping in post-processing or achieving a specific aesthetic frame without cropping.

Stable Locking Mechanism

The helicoid adjusts smoothly and firmly to the desired length. Once the ideal length is found, the two locking screws fix the position to prevent any spiral movement, ensuring the frame remains in focus.

• Note: When used vertically, heavy cameras and lenses may still cause the helicoid to shift. It is recommended to test with your equipment before vertical use.

Compatibility

Compatible with Easy35 and Easy120 systems, as well as most lenses and cameras designed for these systems.

Physical Dimensions and Weight

• Length: 92 mm
• Width: 80 mm
• Height: 22 mm
• Weight: 128 g

Included in Package

• Precision Framing Helicoid
