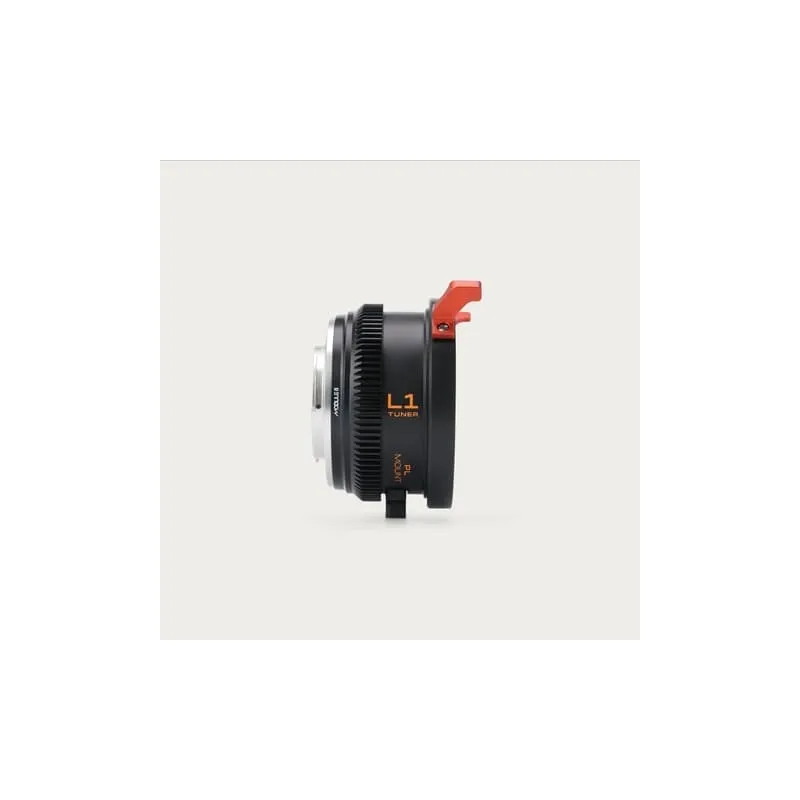

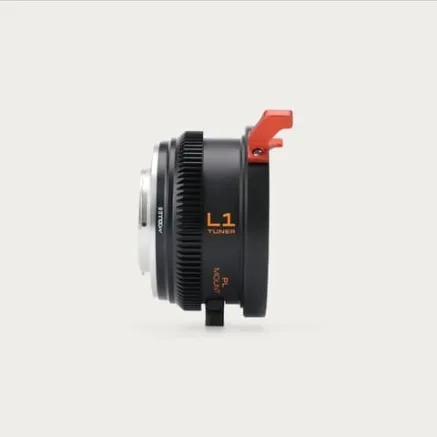

Module 8 L1 Tuner - Baltar Variable Look Lens PL to E Mount Adapter

Module 8 L1 Tuner Overview

The Module 8 L1 Tuner is a variable look zoom adapter designed to transform modern digital cameras by recreating the cinematic magic of vintage films. Inspired by the classic Super Baltar lenses, it delivers a nostalgic warmth, glowing halation, and dreamy highlights reminiscent of iconic films like The Godfather. This tuner allows real-time adjustment of image character during shooting, providing a versatile tool for cinematographers seeking classic Hollywood glamour and gritty realism.

Key Features

• Recreates the soft glow and dreamy halos characteristic of Super Baltar lenses.
• Produces glowing, dreamy highlights and soft/dreamy bokeh effects.
• Offers the most extreme effect among Module 8 Tuners, known as the "Wicked Baltars" at maximum setting.
• EF Tuner supports autofocus, aperture control, image stabilization, and focus pass-through for Canon, Sigma, and Tamron electronic lenses.
• PL version supports a wide range of professional PL mount lenses from brands like Zeiss, Leitz, Tokina, Sigma, and DZO.
• Simple installation with no shimming or complex setup; twist on and start creating vintage looks.
• Maintains 4K+ center resolution while softening contrast for a cinematic feel.
• Constructed from aerospace-quality aluminum with integrated gear for precise look adjustment.
• Affordable alternative to expensive tuned or specially detuned lenses.
• Patent-pending Variable Tuning Technology provides real-time visual feedback.
• Adds spherical aberration to create halation while preserving microcontrast, unlike diffusion filters.
• Variable tuning ring enables precise control of lens character without losing focus.

Compatibility and Mounts

The tuner is available in two mount versions:

• EF Mount: Compatible with Canon EF lenses and supports Sony E Mount and Canon RF Mount cameras. Includes built-in electronics for autofocus, aperture control, and image stabilization. The EF version does not support changing camera mounts.
• PL Mount: Compatible with a wide range of PL mount lenses, provided rear elements do not protrude excessively. Lacks electronics, allowing users to swap mounts to any mirrorless camera system including Sony E, Canon RF, L Mount (Blackmagic, Panasonic, Leica), and Fujifilm X.

Technical Specifications

• Lens Type: Variable Look Zoom Adapter
• Materials: Aerospace quality aluminum
• Mechanical Design: Precision multi-cam
• Lens Side Mount: Canon EF lenses and PL lenses only
• Electronics Support: Canon, Tamron, Sigma (EF Tuner only)
• Camera Side Mounts: Sony E or Canon RF (sold separately)
• EF Tuner Electronics: Focus (wire), aperture, image stabilization, autofocus pass-through
• PL Tuner Electronics: None
• Inspired by: Super Baltar lenses
• Neutral Setting: No
• Adjustment Range: 0-10
• Halation (Center and Edge): Strong
• Axial Aberrations: Spherical
• Full Frame Aberrations: Coma, astigmatism, chromatic aberration
• Resolution: 4K+
• Maximum Bokeh Effect: Flower petal shape at f/1.2, edge softening beyond f/1.2
• Magnification Factor: EF lenses 1.08x, PL lenses 1.04x
• Tuner Breathing: Less than 0.5%
• Optimal F/# Range: EF Tuner f/1.2 to f/4.0, PL Tuner f/1.0 to f/4.0
• Stop Loss: Less than 1/4 stop
• Lens Image Circle: Full frame
• Coatings: Vintage emulation
• Dimensions: EF Tuner 76mm diameter x 34mm length, PL Tuner 80mm diameter x 48mm length
• Weight: EF to E Mount 220g, EF to RF Mount 210g, PL Tuner 310g
• Tuner Dial Rotation: EF Tuner 70 degrees, PL Tuner 60 degrees
• Firmware Update: EF Tuner via Micro USB, PL Tuner no firmware
• Warranty: 1 year
