DZOFILM Pictor Zoom 14-30 T2.8 Black for PL/EF Mount (S35)
AI ASSISTANT CHAT
Or ask about:
| Lens mount | Arri PL/Canon EF |
| Lens Design | Zoom Lenses |
| Lens focus length, mm | 14-30 |
| Lens type | wideangle |
| Maximum Aperture | T2.8 |
- 1. Evaluate your options.
- 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
- 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
Manager will check the availability of the items in the cart and send the loan application link. - 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
- 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
- 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
- 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
- *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
**The sequence of leasing steps is the same for leases offered by InCredit Group.
***In case of doubt, contact our consultants!
When using leasing services, carefully evaluate your options to repay the loan!Lease

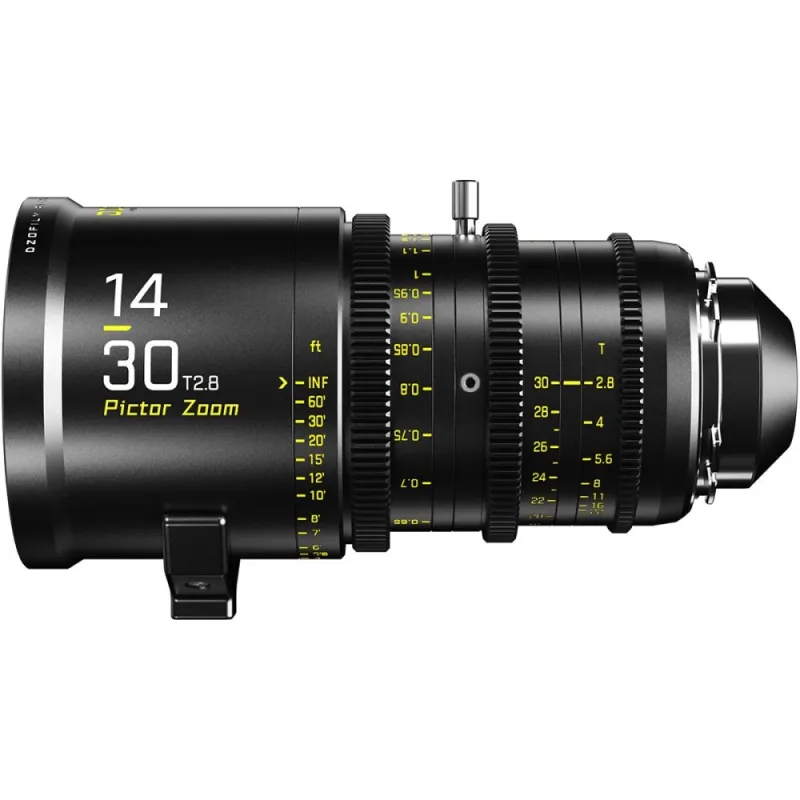

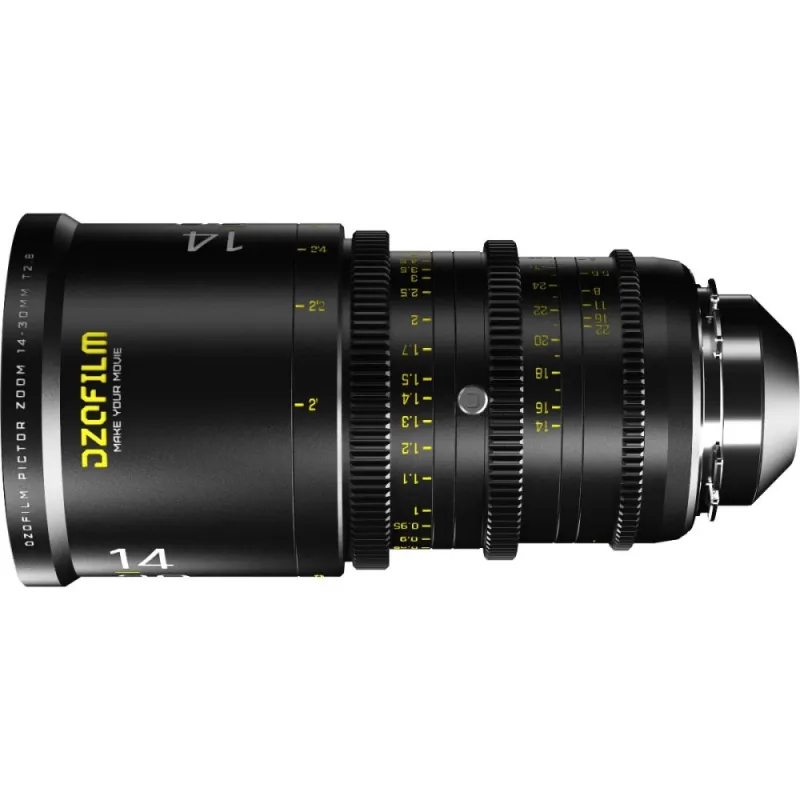

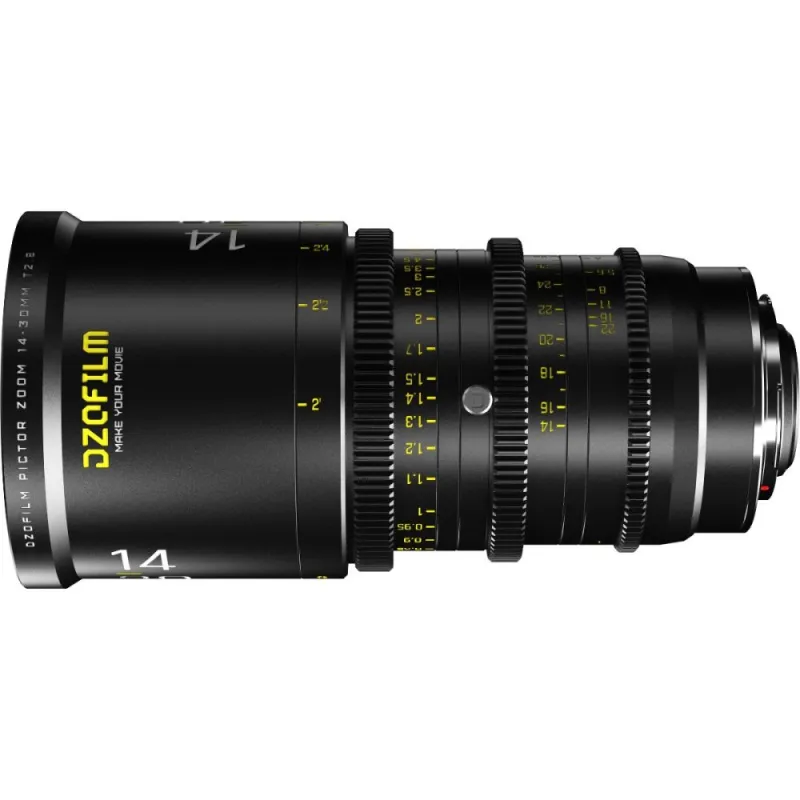

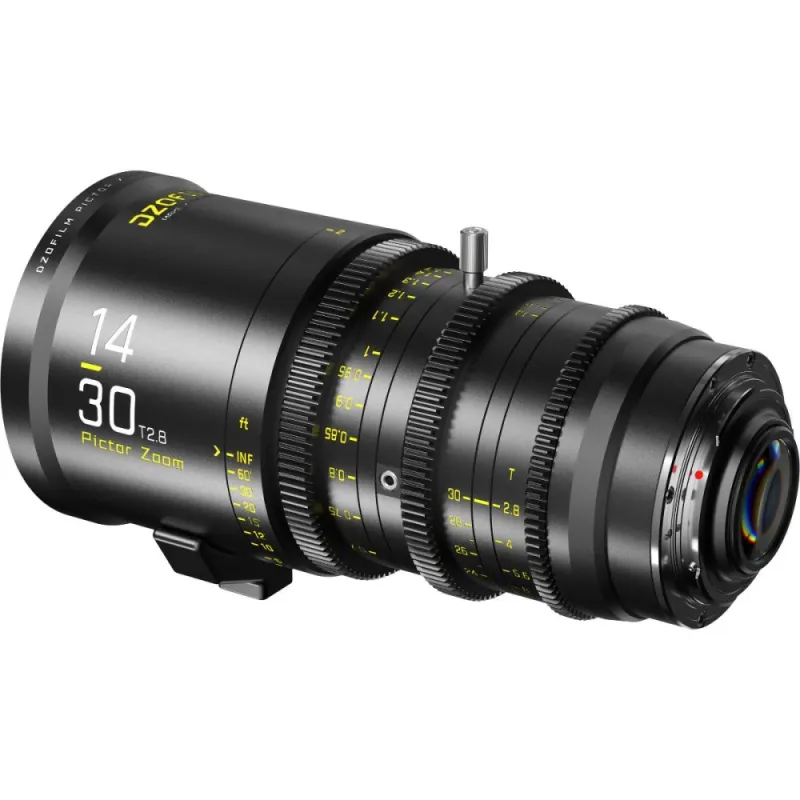

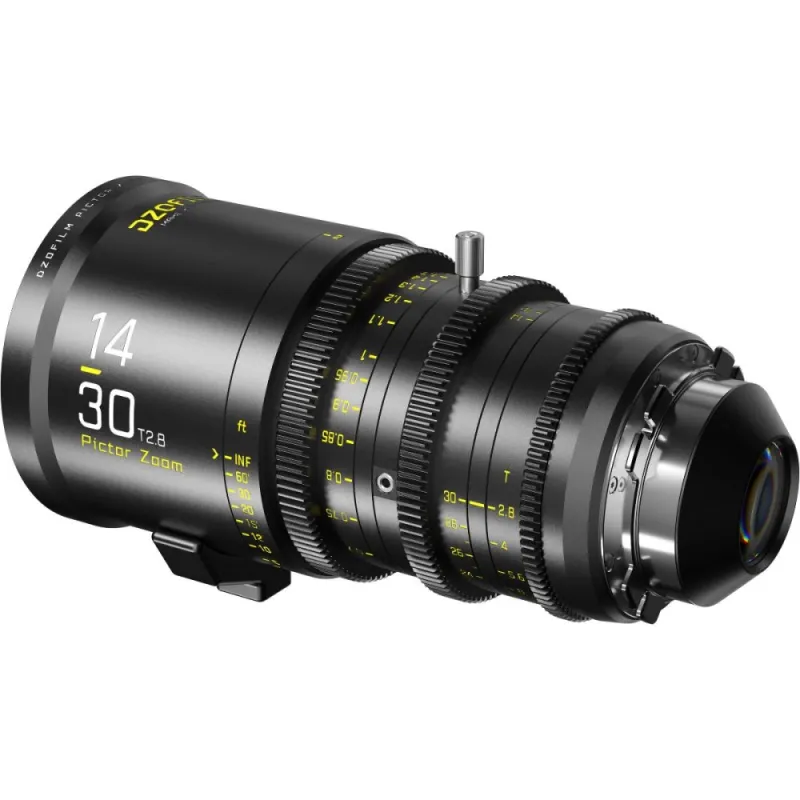

DZOFILM Pictor Zoom 14-30 T2.8 Black for PL/EF Mount (S35) (DZO-7220003B)
The concept of DZOFILM is to explore more possibility and incorporate it into daily filming and thinking. At DZOFILM it is all about the interaction and the relationship between the cinematographer and their projects.
There is no need to look for other cine-lenses or hesitate. DZOFILM is dedicated to balance the harmony between aesthetics and utility and keep their cine-lenses compact and versatile. This way DZOFILM cine-lenses are enabling a swift and fast workflow and amazing footage.
DZOFILM Pictor 14-30mm T2.8, the latest Super 35 wide-angle lens
- Maintains focus throughout the zoom range
- Minimal focus breathing
- 16-blade iris produces round out-of-focus highlights
- T2.8 to T22 aperture
- Common Pictor 95mm front diameter
- Compatible with standard cine-style lens accessories
The black Pictor 14-30mm T2.8 Super35 Parfocal Zoom Lens from DZOFilm features a relatively fast maximum aperture of T2.8 with an aperture range of T2.8 to T22, and it adds an extreme wide-angle zoom to the Pictor line of lenses. As you would expect from a cinema-style zoom, the lens is parfocal, meaning it holds focus throughout the zoom range. The internal focus design with floating elements virtually eliminates focus breathing. It covers a Super35 image circle, comes standard with an interchangeable PL mount, and includes an EF mount.
The 16-blade iris creates round out-of-focus highlights, which have a more natural appearance and contribute to the lenss natural-looking bokeh. The lens features cine-style gear rings on the focus, iris, and zoom lens rings, making it compatible with cine-style lens accessories such as follow focus units, lens motors, and lens control systems. The 95mm outer front diameter allows you to use a variety of compatible third-party matte boxes, and the lens has an 86mm filter thread. A lens support foot allows you to support the lens on rods to help reduce strain on your cameras lens port.
Please Note: According to the manufacturer, when converted to EF mount this lens is not compatible with DSLR cameras that have an EF mount. However, it is compatible with mirrorless cameras that have an EF mount, including Blackmagic Design cameras.
In the Box
1x DZOFILM Pictor 14-30 T2.8 Cine Zoom Lens for PL and EF Mount (Black)
Specifications
- Focal Length
- 14-30mm
- Colour
- Black
- Mount
- PL/EF
- T-Stop
- T2.8-22
- Image Circle
- Ø31.5 mm (S35)
- Close Focus
- 0.6m / 2ft.
- Zoom Ratio
- ≈2.14X
- Flange Distance
- PL=52mm
EF=44mm - Iris control
- 61°
- Focus control
- 270°
- Zoom control
- 100°
- Front outer diameter
- Ø95 mm/3.74”
- Filter Size
- M86*0.75
- Gear Pitch
- 0.8M
- Blades Iris
- 16
- Length
- 173mm / 6.81“ (PL)
181mm / 7.13 (EF) - Weight
- ≈1880g
