Tascam XLR Microphone Adapter Analogue Interface Kit for Mirrorless Cameras

Professional Two-Channel Microphone Adapter and Preamplifier

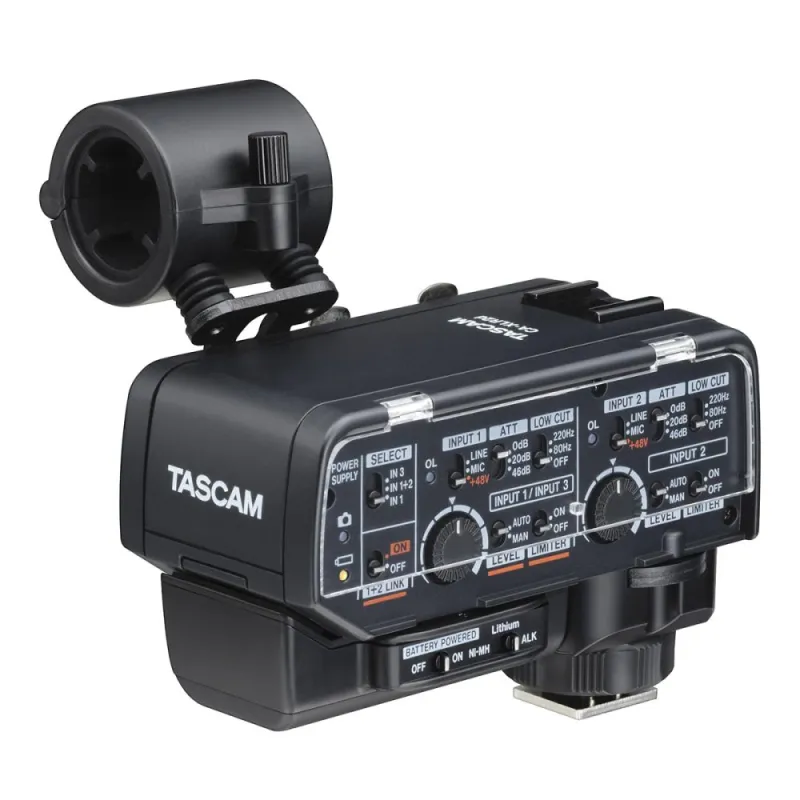

The Tascam CA-XLR2d is a versatile two-channel microphone adapter designed for mirrorless and other cameras, enabling the use of external microphones to capture high-quality professional stereo audio. It transfers audio signals directly to the camera in digital or analogue form, synchronizing audio with video and reducing post-production effort.

Key Features

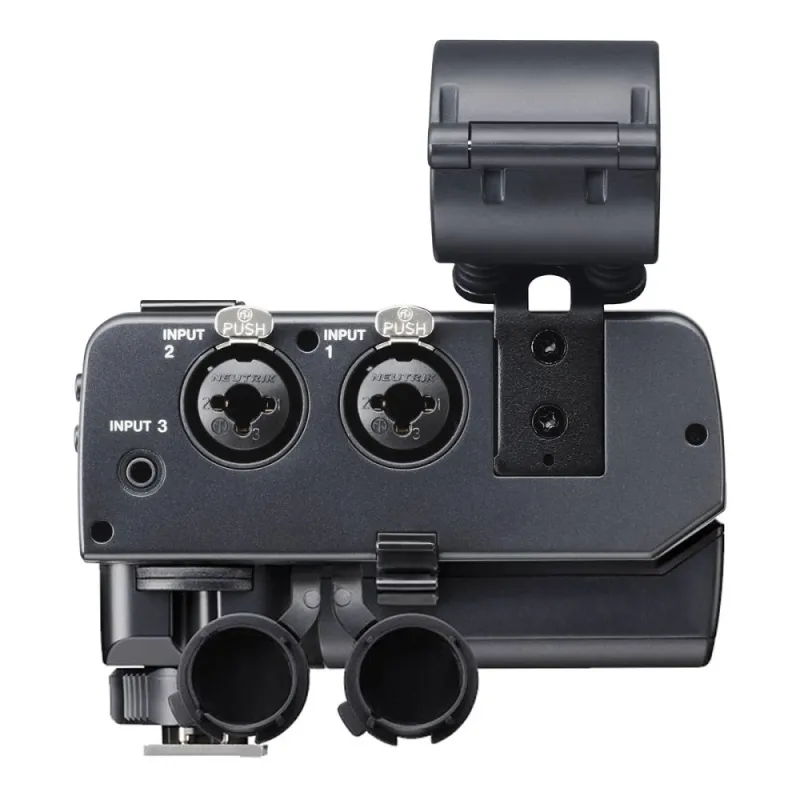

• Two XLR/TRS input terminals for optimal microphone selection based on shooting environment
• High-performance A/D converter sends digital audio directly to compatible cameras via accessory shoe (Canon, Fujifilm)
• Camera body powers the adapter through the accessory shoe (Canon, Fujifilm compatible)
• Tascam HDDA mic preamplifier ensures high sound quality with low noise and wide dynamic range; features switchable mic/line level and 48V phantom power
• Additional 3.5-mm stereo mini jack input supports lavalier microphones or those requiring plug-in power

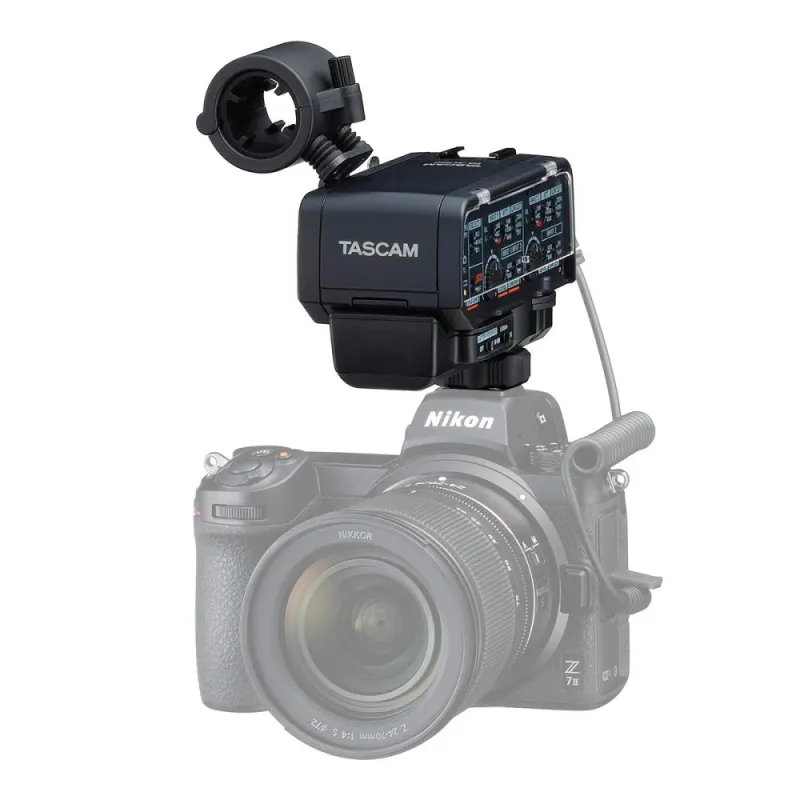

• Compatible with virtually all cameras having analogue audio input using included battery box, cold shoe mount adapter, detachable microphone holder with shock mount, and analogue audio cable
• Top cold shoe mount for additional accessories

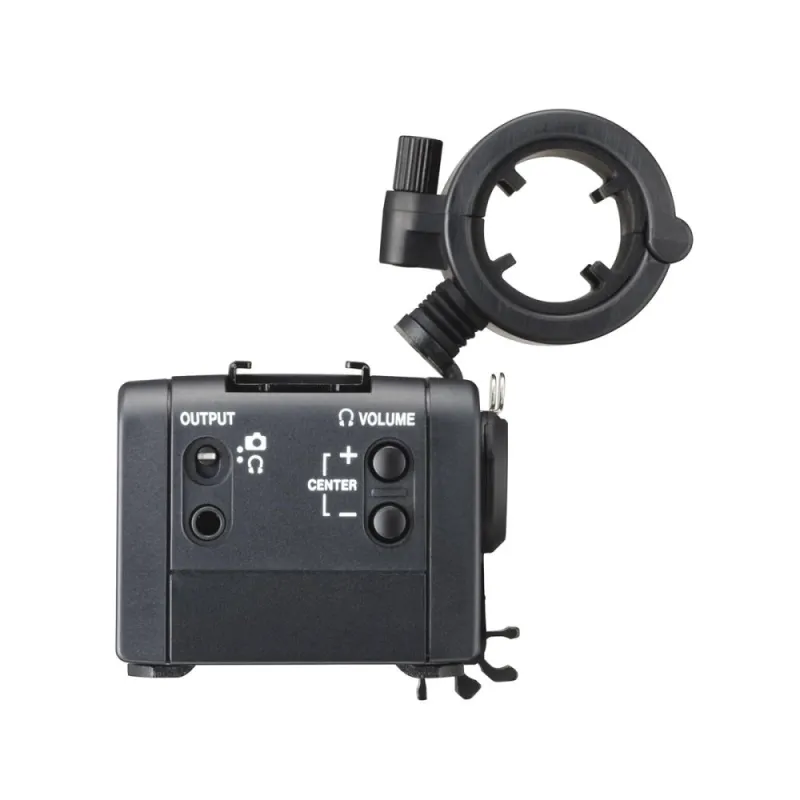

• Analogue audio output with two modes: Camera mode (transmits audio to camera mic input) and Headphone mode (direct headphone monitoring)
• Replaceable shoe connection adapters (CA-AK1-C for Canon, CA-AK1-F for Fujifilm) allow use with multiple camera brands

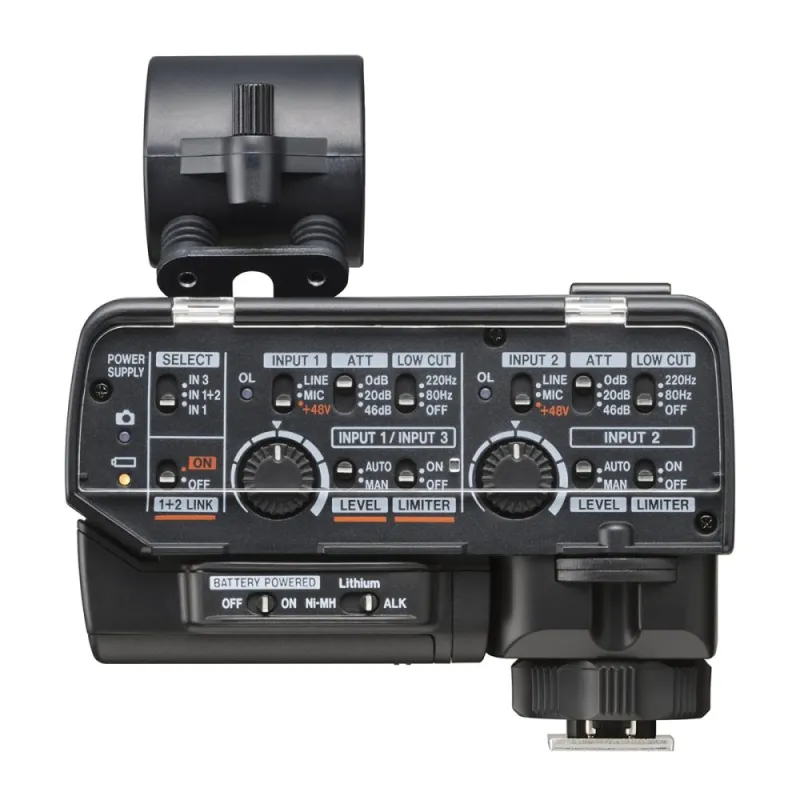

• Switchable input level attenuation: 0 dB / 20 dB / 46 dB
• Switchable low-cut filter: Off / 80 Hz / 220 Hz
• Switchable limiter and auto-level function
• Overload indicator for each input channel
• Stereo linking of input level, auto/manual setting, and limiter for inputs 1 and 2
• Transparent protective cover prevents accidental setting changes
• Convenient cable holder included

Flexible Microphone Compatibility

Supports a wide range of microphones including shotgun, dynamic, condenser, and lavalier types, as well as line-level inputs from mixers, making it suitable for interviews, dialogue, stereo imaging, and complex audio setups.

High-Quality Audio Conversion

Utilizes Tascam's premium A/D converters for clean, noise-free sound. Digital audio is transmitted directly to the camera, avoiding additional conversion noise and simplifying post-production by eliminating audio-video synchronization.

Power and Connectivity

The adapter is powered via the camera's hot shoe on compatible Canon and Fujifilm models, eliminating the need for external power supplies and maintaining a compact setup. For cameras without compatible hot shoe power or digital audio support, the CA-XLR2d-AN analogue kit includes a battery box and cables to connect via analogue audio input.

Built-In Audio Processing

• Auto-level control
• Low-cut filter with selectable frequencies
• Limiter to prevent audio clipping
• Stereo linking for simultaneous control of both channels

Technical Specifications

A/D Conversion

• Sampling frequencies: 48 kHz / 96 kHz
• Bit depth: 16-bit, 24-bit (synchronized with camera settings)
• Channels: 2

Analogue Audio Inputs

• Mic inputs 1 and 2: Balanced XLR-3-31 connectors with phantom power; input impedance ≥2 kΩ; max input +6 dBu (at 46 dB attenuation); gain range 66 dB
• Line inputs 1 and 2: Balanced 6.3-mm TRS jacks; input impedance ≥10 kΩ; max input +24 dBu; gain range 66 dB
• Mic input 3: Unbalanced 3.5-mm mini jack supporting plug-in power (2.7 V); input impedance ≥2 kΩ; max input +6 dBV; gain range 66 dB

Analogue Audio Outputs

• 3.5-mm stereo mini jack for headphones or camera input
• Output voltage: 0.29 Vrms (headphone mode), 0.5 Vrms max (camera mode)
• Headphone impedance: 16–250 Ω

Audio Performance

• Equivalent input noise (EIN): ≤–120 dBu (150 Ω, max gain, A-weighted)
• Dynamic range: ≥95 dB (22-kHz LPF, A-weighted)
• Frequency response: 20 Hz to 20 kHz (+0.5 dB / –1 dB) at 48 kHz sampling; 20 Hz to 40 kHz (+0.5 dB / –1 dB) at 96 kHz sampling

Power and Physical

• Power supply: 2 AA batteries (alkaline, NiMH, or lithium-ion) or power via compatible camera accessory shoe
• Power consumption: 2 W max
• Dimensions (W×H×D): 88 mm × 119 mm × 110 mm
• Weight: 357 g (CA-XLR2d-AN model)
• Operating temperature: 0–40 °C

Included in the Box

• CA-XLR2d unit
• CA-AK1-AN cold shoe mount adapter
• Battery holder
• Microphone holder with shock mount (attached)
• 3.5-mm stereo mini jack cable
• Quick Guide including warranty
• Connector cover
