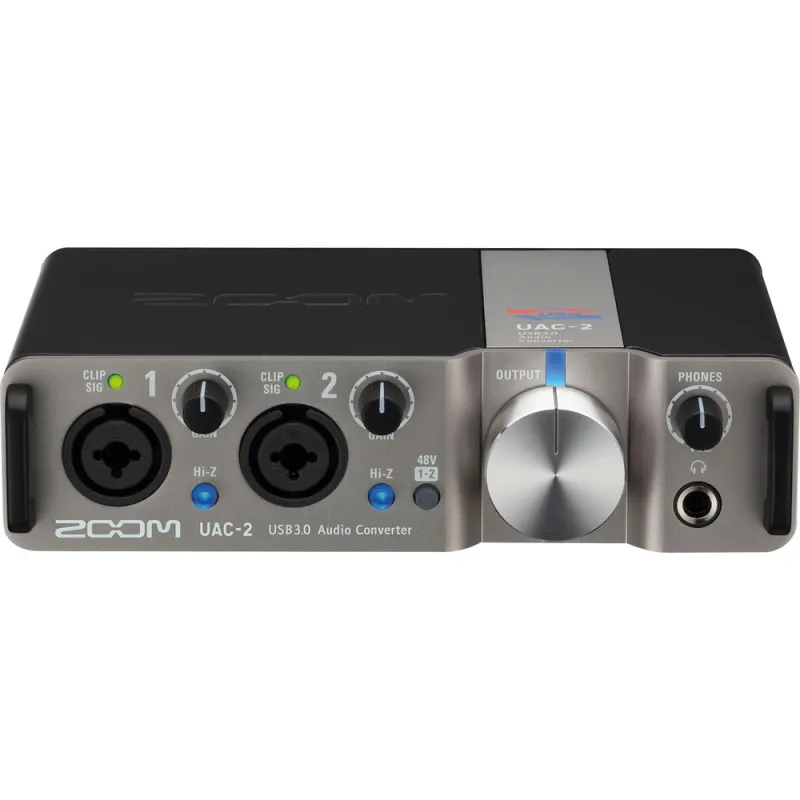

The UAC-2 from Zoom is a 2x2 USB 3.0 audio interface that offers near zero latency and up to 24-bit/192 kHz resolution. The compact and robust housing makes the interface perfect for studio and field recording of microphones and instruments, for onstage playback and audio streaming, and with its dedicated MIDI input and output connectors, it can even serve as a stable MIDI interface.
The unit features two XLR/TRS combo inputs with microphone preamps and two balanced 1/4" outputs. Phantom power is available for use with condenser microphones. Additionally, input 1 and 2 offer a Hi-Z instrument input for guitars and bass. The headphone output has a dedicated volume control and a free Mac application is available for setting mix parameters and adding effects such as reverb and echo. The interface is bus powered, but may be powered by the optional AD-14 power adapter. The UAC-2 ships with a USB 3.0 cable and a Steinberg Cubase LE software license card.
- 2-in/2-out USB 3.0 High-Speed audio interface
- Support for recording and playback up to 24-bit/192 kHz
- Ultra-low latency audio streaming (2.2ms roundtrip @ 96 kHz / 32 samples)
- Two combo balanced XLR/TRS input connectors accept both mic and line-level signal
- Hi-Z switches allow direct connection of electric guitar or bass
- Switchable +48V phantom power
- Two balanced TRS output jacks for connection to amplifiers or self-powered speakers
- 1/4" headphone jack with dedicated level control
- Independent gain controls and clip LEDs for each input
- Large knob output volume control
- Direct Monitoring switch for zero latency monitoring in mono or stereo
- MIDI In and Out
- Compatible with all popular DAW software, including Cubase, Logic, Garage Band, Pro Tools, Ableton Live, and others
- High-performance mic preamps with up to +60dB of amplification
- 120dB of dynamic range
- 4x upsampling during A/D and D/A conversion for reduced noise and enhanced fidelity
- Asynchronous transfer system unaffected by computer jitter
- Bus powered—no AC power required
- Robust metal housing ensures roadworthiness
- Works with all USB 2.0 and 3.0-equipped computers and iPads*
* Optional power adapter and Apple Camera Connection kit or Lightning to USB Camera Adapter required
| Connections | Input 1/2: 2 x Combo XLR/1/4" / 6.35 mm TRS (XLR: 2 hot, TRS: Tip hot) Instrument (Input 1 & 2): 2 x 1/4" / 6.35 mm TRS (disables Input 1 & 2 when in use) Output L/R: 2 x 1/4" / 6.35 mm TRS (balanced) Phones: 1 x 1/4" / 6.35 mm TRS stereo phone jack |
| Input Gain | 0 to 60 dB (1 dB steps) |
| Input Impedance | XLR/TRS: 5 kOhms Instrument (Hi-Z On): 1 MOhm |
| Maximum Input Level | +12 dBu （＠ 0 dBFS） |
| Phantom Power | +48 V |
| Maximum Output Level | TRS Output: +14 dBu at 0 dBFS Phones: +8 dBu at 0 dBFS |
| Output Impedance | TRS Output: 100 ohms Phones: 30 ohms |
| Headphone Output Power | 20 mW + 20 mW (into 32 ohm load) |
| Frequency Response | -1.0 dB: 20 Hz to 60 kHz @ 192 kHz setting -1.0 dB: 20 Hz to 40 kHz @ 96 kHz setting -1.0 dB: 20 Hz to 20 kHz @ 44.1 kHz setting |
| Signal to Noise Ratio (SNR) | 125 dB(IHF-A) @ 60 dB, 150 ohm input |
| Dynamic Range | A/D: 118 dB typical (IHF-A) D/A: 120 dB typical (IHF-A) |
| Channels of I/O | Audio Channels Recording: 2 Audio Channels Playback: 2 |
| Sampling Frequencies | System: 192, 176.4, 96, 88.2, 48, 44.1 kHz |
| Bit Depth | 24-bit |
| Interface | USB 3.0 / 2.0 |
| MIDI | In / Out (5 pin DIN jack) |
| Power | USB Bus Power Optional AC Adapter: 5 VDC, 1 A (AD-14) Power Consumption: 5 W |
| Dimensions (D x W x H) | 4.5 x 6.9 x 1.8" / 11.4 x 17.6 x 4.6 cm |
| Weight | 1.65 lb / 0.75 kg |
| Accessories for microphones | Adapteri |
