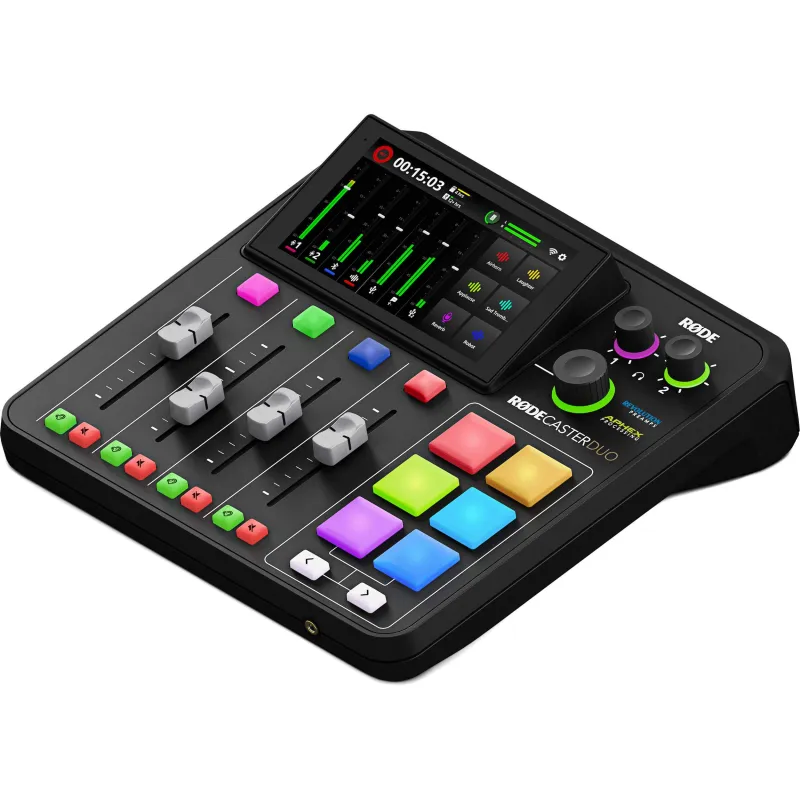

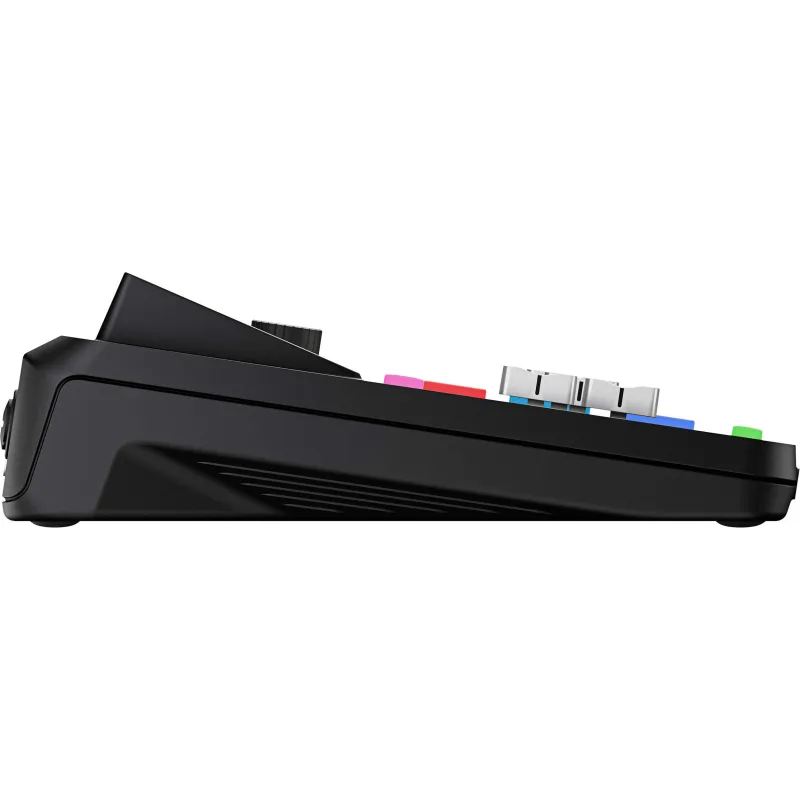

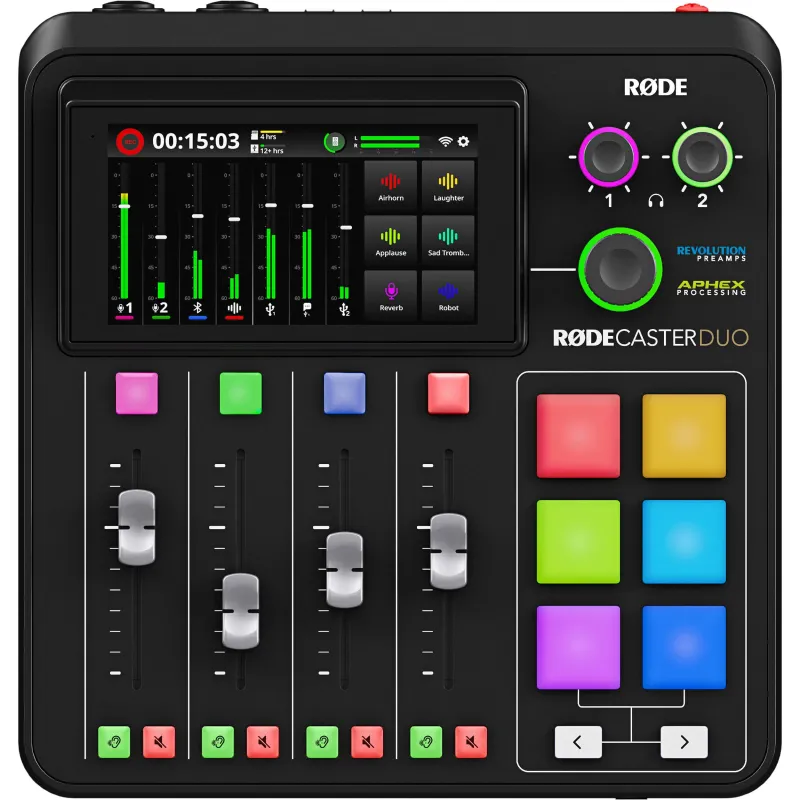

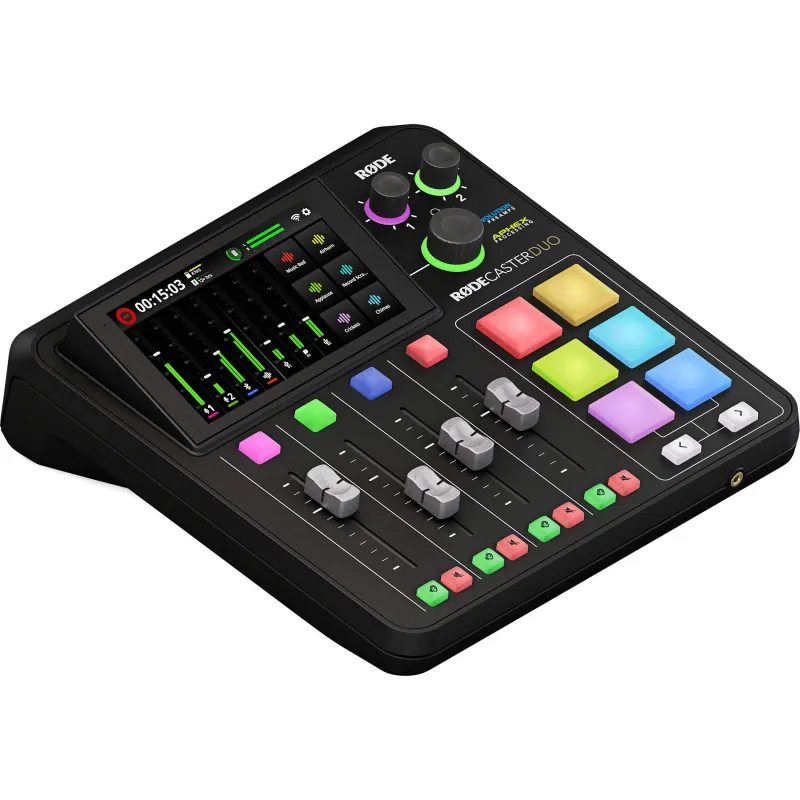

Rode RØDECaster Duo Integrated Production Studio

A Streaming Solution for Everyone

The RØDECaster Duo from RØDE is a compact, powerful all-in-one audio production solution designed to elevate podcasting, streaming, music-making, and content creation. It offers the same revered features and versatility as the RØDECaster Pro II but in a smaller, more portable form factor. Ideal for users needing fewer audio inputs and a travel-friendly design, it features a high-powered quad-core audio engine, high-gain, low-noise Revolution preamps, APHEX audio processing, and flexible customization.

Key Features

• Two XLR-1/4" combo inputs for mic or line-level signals
• Stereo pair line output for speakers
• Two headphone outputs for personal monitoring
• MicroSD card reader for internal multitrack recording
• Two USB-C host connections and an Ethernet network terminal for hardware/software integrations
• Four assignable mixer faders and six customizable SMART pads for audio, FX, and MIDI triggering
• Bright, colorful touchscreen with intuitive controls
• Bluetooth technology and integrated wireless microphone receivers compatible with RØDE Wireless GO II and Wireless ME

2 High-End Preamps

• Revolution preamps deliver transparency and detail with ultra-low noise (-131.5 dBV) and gain up to 76 dB, suitable for low-output dynamic mics without boosters or normalization
• Pro-grade Neutrik XLR-1/4" combo jacks support microphones (+48V phantom power for condensers), line-level sources, and instruments like electric guitar and bass
• Analog input channels can be linked for stereo mic setups, synths, DJ mixers, or outboard gear

Studio-Quality Processing and Effects

• Authentic emulations of classic APHEX hardware processors including Aural Exciter, Big Bottom, and Compellor compression/leveling
• Additional processors: reverb, delay, pitch shifter, equalizer, high-pass filter, noise gate, de-esser, robot effects, and more
• VoxLab editor for quick parameter adjustments and advanced editor for detailed control; save and load presets

6 Programmable SMART Pads

• Trigger audio files, special effects, MIDI commands, or mixer functions like fades, music ducking, and bleeping
• Bank switching buttons for multiple unique actions
• Customizable pad illumination colors for easy identification

Customizable Multichannel Mixer

• 7-channel mixer with 4 physical broadcast-quality faders and 3 virtual channels
• Channels assignable to analog inputs, USB, Bluetooth, and SMART pads
• Each channel includes pan control, mute, and listen (pre- or post-fader solo) buttons with color coding for quick source identification

Stereo or Multitrack Recording

• Record stereo or individual multitrack files to microSD card or USB storage
• Choose uncompressed WAV for maximum quality or MP3 for extended recording time
• Use as a high-quality USB audio interface for streaming/recording to a computer with ultrafast data transfer
• Runs at 24-bit / 48 kHz, the industry standard for video production

Monitoring for All

• Two high-powered 1/4" headphone outputs with separate color-coded volume controls for host and guest
• Connect active speakers via 1/4" line outputs or monitor wirelessly through Bluetooth speakers
• Selectable high or low sensitivity optimizes headphone output gain structure

Podcast-Friendly Specialties

• Producer talkback mode for communication with guests without affecting recording
• Advanced Bluetooth connectivity for high-quality phone-call integration, audio streaming, and wireless monitoring
• Mix-minus on Bluetooth and USB channels prevents echo for remote and local guests

Fast Workflow

• Save multiple Shows with all settings for quick switching between production types
• Tailored presets for RØDE microphones and popular models for quick setup
• Color touchscreen with haptic feedback, automatic brightness adjustment, and tilt for optimal viewing
• Rotary encoder for efficient navigation and control
• Dual USB Type-C interfaces allow connection of two computers or mobile devices simultaneously

Additional Features

• Internal 1.5 GHz quad-core audio engine for significant processing power and future updates
• Bidirectional MIDI communication for integration with DAWs and streaming software
• Wi-Fi and Ethernet connections for firmware updates and integrations
• MFi-certified USB connections for seamless iOS device integration
• Powered via USB Type-C PD (30W)
• Supports 10 languages including English, Chinese, Japanese, Korean, French, German, Italian, Spanish, Portuguese, and Hindi
• Fully updatable firmware via Wi-Fi, Ethernet, or USB
• Internal wireless microphone receivers compatible with Series IV wireless transmitters including Wireless GO II and Wireless ME

Specifications

• Form Factor: Desktop
• Display: 1 x Color touchscreen
• Channels of I/O: 2 Inputs / 4 Outputs
• Built-In DSP: Yes
• Maximum Sampling Rate: 48 kHz / 24-Bit
• Number of Microphone Preamps: 2
• Built-In Microphone: None
• Expansion Slots: None
• Gain/Trim Range: -135 to +76 dB
• Solo/Mute: Solo, Mute per input channel

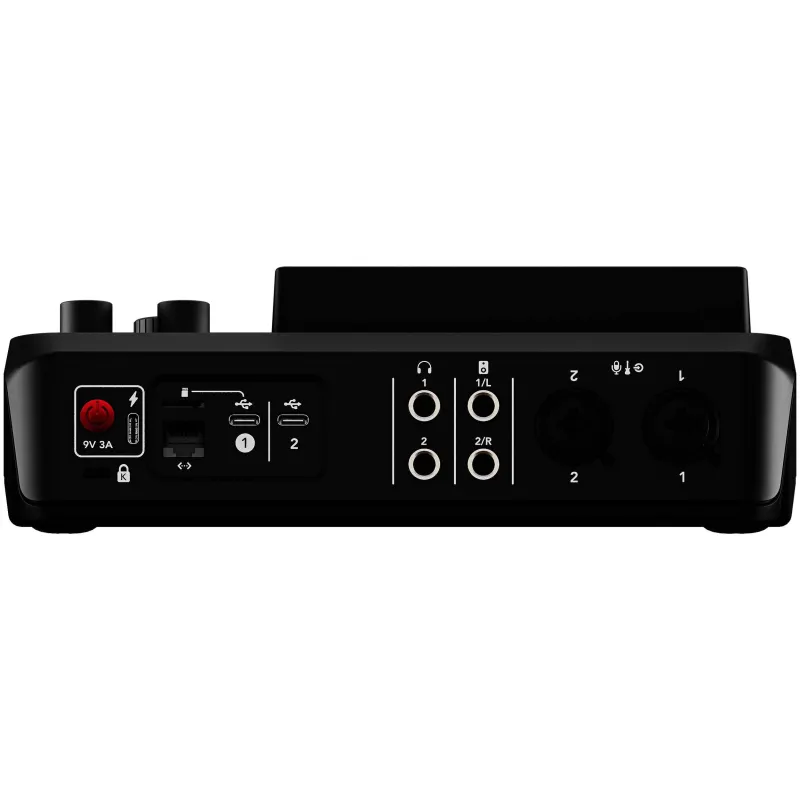

• Analog Audio I/O: 2 x Combo XLR-1/4" TRS Mic/Line Input, 2 x 1/4" TRS Line Output, 2 x 1/4" TRS Headphone Output
• Phantom Power: None
• Host Connection / USB: 2 x USB-C (USB 3.0 / 3.1/3.2 Gen 1)
• Memory Card Slot: 1 x microSDHC
• OS Compatibility: macOS, Windows (check manufacturer for updates)
• Power Requirements: AC/DC Power Adapter (5 V, 3 A) included
• Anti-Theft Features: Kensington Security Slot
• Package Weight: 2.08 kg
• Box Dimensions (LxWxH): 27.4 x 26.2 x 12.2 cm
