The Tascam MZ-123BT is a compact 1U multi-zone audio mixer with Bluetooth, three stereo inputs, dual mic inputs, and flexible zone routing for commercial audio applications.

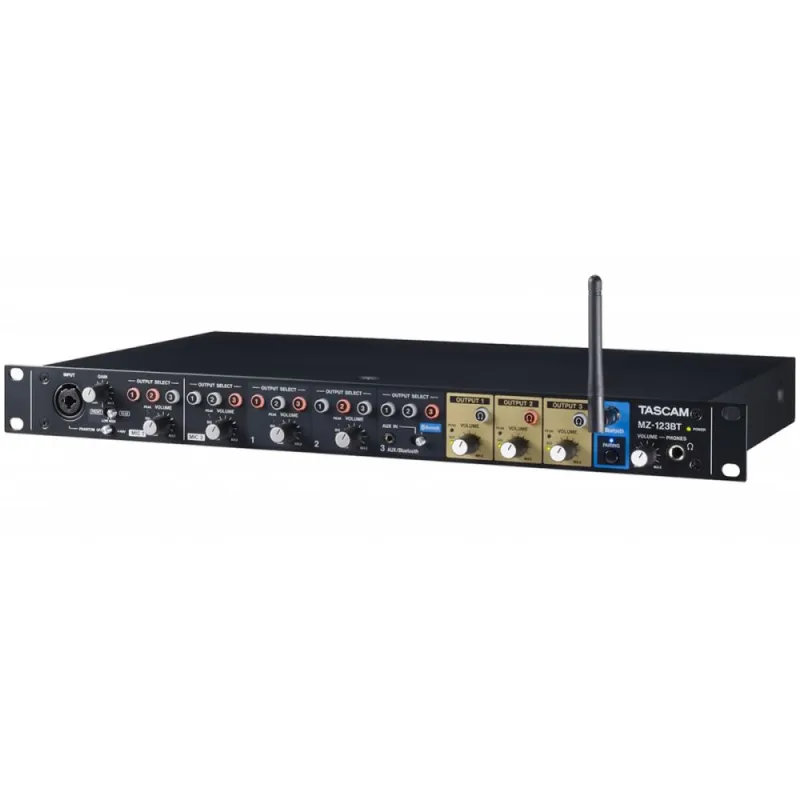

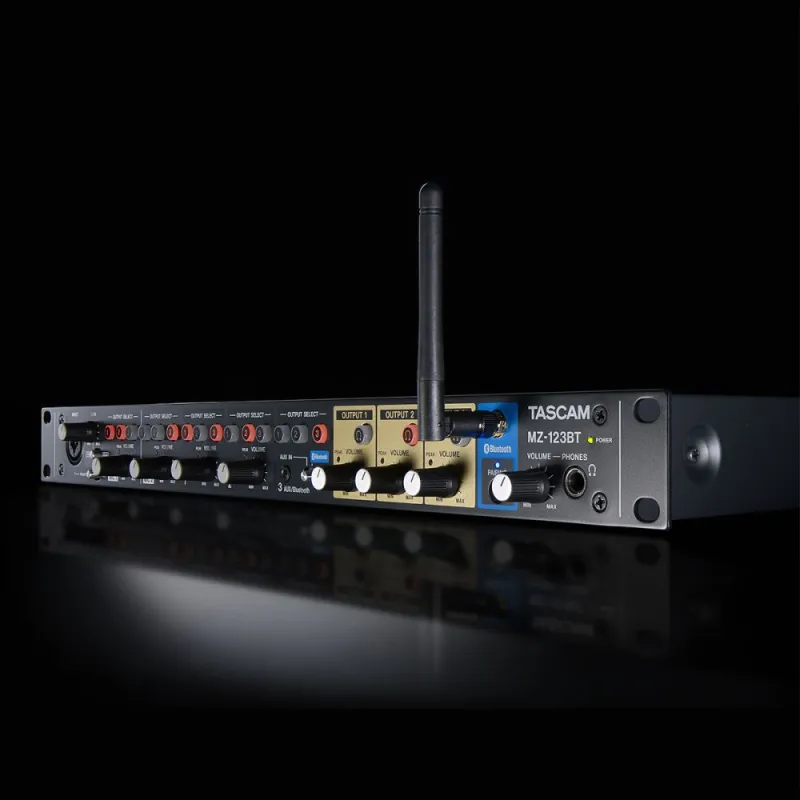

Tascam MZ-123BT Compact Multi-Zone Audio Mixer
Product ID: 61183
SKU: 61183
Ean: 4907034131273
Condition: New product
Manufacturer: Tascam
Discover related products
Discover related products
AI ASSISTANT CHAT
This is the beta version of our new assistant chat, capable of answering both standard and advanced questions about product and store operations.
Or ask about:
What are the features? Is this in stock? Actual discounts & offers? Product reviews?
| Type of Product | Audio Production Studio |
| Accessories for microphones | Mikserpultis |
| Connector | 3,5mm |
| Connector | Bluetooth |
| Connector | XLR |
How to buy goods on lease?
- 1. Evaluate your options.
- 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
- 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
Manager will check the availability of the items in the cart and send the loan application link. - 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
- 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
- 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
- 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
- *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
**The sequence of leasing steps is the same for leases offered by InCredit Group.
***In case of doubt, contact our consultants!
When using leasing services, carefully evaluate your options to repay the loan!Lease
Product details
Compact Multi-Zone Audio Mixer for Professional Installation
The Tascam MZ-123BT is a 1U rackmount multi-channel, multi-zone audio mixer designed for commercial environments such as retail stores, restaurants, bars, cafes, and hotels. It enables versatile routing, mixing, and distribution of up to three channels of music and announcements, supporting independent audio routing and paging capabilities.
Audio Control and Routing for Separate Zones
- Three discrete zone outputs with individual volume control allow routing of background music to specific areas or rooms.
- Each output can be configured for mono or stereo audio output.
Outputs and Connectivity
- Three pairs of balanced stereo outputs with Euroblock connectors are accessible on the rear panel for fixed installations.
- Two stereo line inputs (RCA, unbalanced) support connection of AV equipment such as Tascam CD or solid-state players.
- Channel 3 features an Aux/Bluetooth input allowing connection of an additional audio source via Bluetooth or 3.5-mm mini plug.
- Each input has a volume control knob and three zone routing buttons for flexible audio distribution.
- A dedicated Bluetooth antenna on the front panel ensures stable wireless connectivity even in challenging signal environments.
Microphone Inputs and Controls
- Two microphone inputs with Euroblock connectors on the rear panel, each with switchable +48V phantom power for condenser microphones.
- Talkover functionality automatically attenuates background music during microphone announcements for superior intelligibility.
- Zone selection for microphone inputs is controlled via front-panel push buttons.
- An additional XLR/TRS combo connector on the front panel allows quick connection and selection of an alternative microphone.
- Back panel gain control knobs, three-band equalizer (Low, Mid, High), and switchable high-pass filter for each input enable precise tonal shaping and input level adjustment.
Talkover Function for Clear Announcements
The Talkover function detects microphone input signals during audio playback and automatically reduces background music levels in selected zones. Threshold level and release time can be adjusted on the rear panel to fine-tune activation and smooth restoration of background music.
Ease of Operation
- Intuitive front-panel controls for channel volume, output level, zone selection, and Bluetooth pairing simplify basic operation for non-technical users.
- Advanced settings for EQ, gain, and threshold are accessible via dedicated rear panel knobs.
Compact 1U Rackmount Design
The slim 1U rackmount size fits seamlessly into AV racks, with optimized depth providing ample space for connections to other AV equipment such as Tascam CD or solid-state players.
Key Features
- Slim rackmount mixer with flexible assignment of background music and microphone announcements to three output zones.
- Built-in Bluetooth receiver for wireless audio playback from smartphones or tablets.
- Front-panel Bluetooth antenna ensures stable wireless connection within the specified range.
- Three stereo line inputs: two RCA unbalanced inputs on the rear panel and one Bluetooth/Aux input on the front panel.
- Gain controls on the rear panel for precise input level adjustment.
