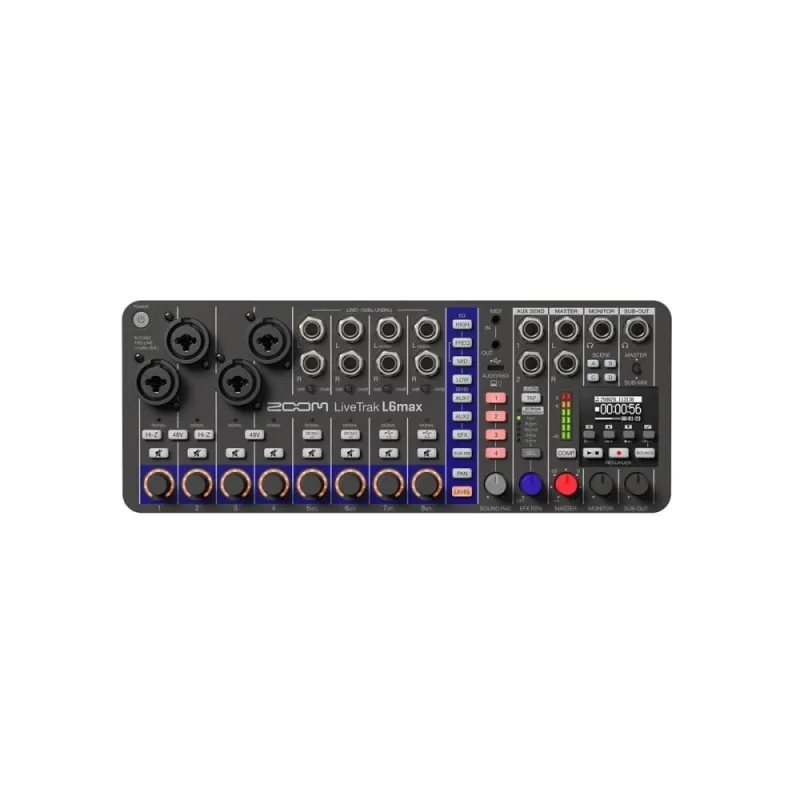

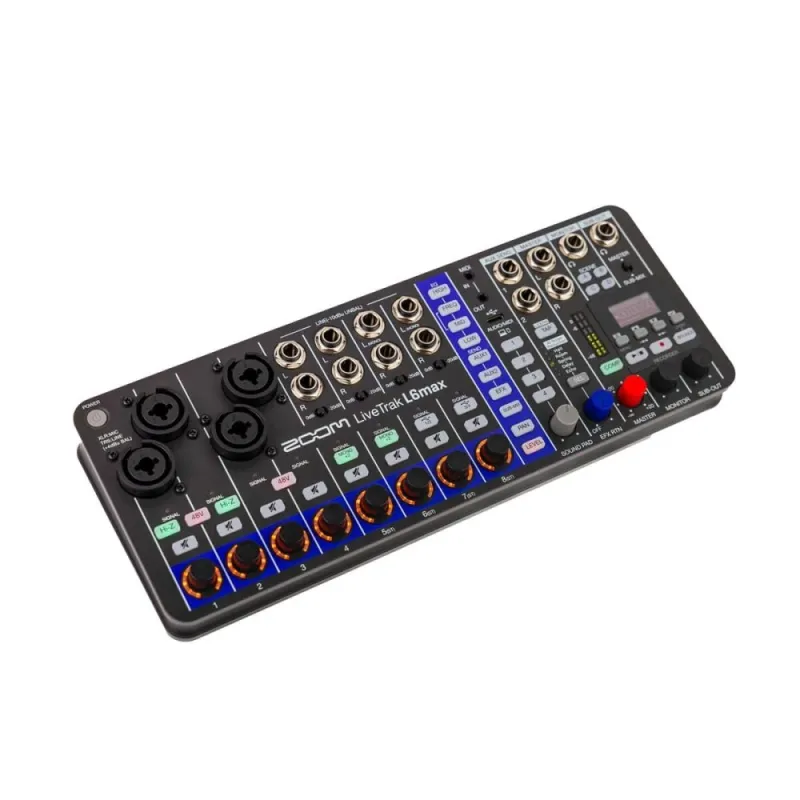

Zoom LiveTrak L6max EU Version

12-Channel Mixer and Recorder for Music, Streaming, and Podcasts

Big Mixer Energy

The Zoom LiveTrak L6max combines the features of a full-size mixer with a multi-track recorder in a compact, battery-powered unit. It is designed to be the centerpiece of live shows, rehearsals, or podcasts.

Flexible Input Configuration

With 4 combo MIC/LINE inputs (including 2 with Hi-Z) and 8 line inputs, the L6max offers 12 channels suitable for solo performers, acoustic duos, or full bands.

Custom Monitoring Options

Two headphone outputs and a customizable Sub-Out mix allow precise monitoring anywhere on stage.

High-Output Handling

Channels 5-8 feature a -20 dB PAD switch to accommodate loud sources such as vintage synthesizers and Eurorack modules without needing an external attenuator.

OLED Display

A high-contrast 128×64 OLED display facilitates easy project creation and settings adjustment.

Multi-Track Recording

Record up to 14 tracks simultaneously (12 individual tracks plus stereo mix) directly to microSD cards up to 2TB. Projects can be saved and recalled for mixing at any time.

Unlimited Overdubbing and Bounce Tracks

Mix and bounce tracks to a dedicated bounce track to free channels for additional layers. Undo functionality allows corrections, and individual tracks remain saved for future mixing.

AI Noise Reduction

Intelligent AI Noise Reduction removes hum, hiss, and background noise while preserving voice and instrument details.

32-bit Float Recording

Record clip-free audio in 32-bit float format, with dual A/D converters on channels 1-4 ensuring pristine mic signals across extreme dynamics.

USB Audio Interface and Control Surface

Use the L6max as a 14-in/4-out 32-bit float USB audio interface for computers, iOS, or Android devices while simultaneously recording to microSD. It also functions as a control surface for DAWs.

Pro-Level Mixer Functions

• MIDI I/O and USB MIDI: Connect external synths, grooveboxes, or integrate with MIDI apps.
• Flexible Routing with AUX Sends: Two AUX Sends with pre/post-fader options for effects loops and monitor feeds.
• Sound Pads with MIDI Sync: Trigger jingles, sound effects, or samples, synchronized to MIDI clock for live electronic performances.
• Scene Memory: Store and recall up to four mixes with a single button.

Customization via L6 Editor App

The free L6 Editor app for Mac and Windows allows easy customization of pads, effects, and MIDI assignments.

Power Options and Mobility

Power the L6max with 4 AA batteries (Alkaline, Lithium, NiMH), USB bus power, or a mobile battery pack for extended mobile use.

Euro Rack Integration

Optional ERL-6 rack mount adapter enables installation in a Euro Rack setup and powers modular rigs.

Technical Specifications

Channels

• Input Channels: 4× MIC/LINE (mono), 4× LINE (stereo)
• Output Channels: 2× AUX SEND (mono), 1× MASTER (stereo), 1× MONITOR (stereo), 1× SUB-OUT (stereo)

MIC/LINE Inputs

• Connectors: 4× XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT)
• Input Gain: No adjustment needed (dual A/D converter circuits)
• Input Impedance: XLR ≥3.8 kΩ; TRS ≥18 kΩ (Hi-Z off) / ≥1 MΩ (Hi-Z on)
• Max Input Level: XLR +4 dBu; TRS +24 dBu
• Phantom Power: +48 V (max total 20 mA)

LINE Inputs

• Connectors: 8× TS phone jacks
• Input Impedance: ≥30 kΩ
• Max Input Level: +4 dBu (PAD 0 dB) / +24 dBu (PAD –20 dB)

AUX SEND Outputs

• Connectors: 2× TRS phone jacks (impedance-balanced)
• Max Output Level: +9.5 dBu
• Output Impedance: 147 Ω

MASTER Outputs

• Connectors: 2× TRS phone jacks (balanced)
• Max Output Level: +15 dBu
• Output Impedance: 147 Ω

MONITOR / SUB-OUT

• Connector: TRS phone jack
• Max Output Level: 50 mW + 50 mW (63 Ω load)
• Output Impedance: 14.7 Ω

Buses

• MASTER: 1
• SUB-MIX: 1
• AUX SEND: 2
• SEND EFX: 1

Channel Strip EQ

• HIGH: 10 kHz, ±15 dB, shelving
• MID: 100 Hz–8 kHz, ±15 dB, peaking
• LOW: 100 Hz, ±15 dB, shelving

Level Meters

• Segments: 6

Send Effects

• Types: 6 types

Recorder

• Max Simultaneous Recording: 14 tracks
• Max Simultaneous Playback: 14 tracks
• Formats: 48 kHz, 32-bit float, mono/stereo WAV
• Media: microSDHC / microSDXC (Class 10+)

Display

• Type: 128×64 OLED

Audio Interface

• Input/Output Channels: 14 inputs / 4 outputs
• Sampling Frequency: 48 kHz
• Bit Depth: 32-bit float / 24-bit
• Interface: USB 2.0

Card Reader

• Class: USB 2.0 High Speed (mass storage)

Frequency Response

• Range: 20 Hz–20 kHz (−1.0 dB / +0.5 dB)

Equivalent Input Noise

• EIN: ≤−120 dBu (IHF-A, 150 Ω input)

Power

• Batteries: 4× AA (Alkaline, Lithium, NiMH)
• AC Adapter: ZOOM AD-17 (DC 5V/1A)
• USB Power: Supported
• Battery Life:
  • Alkaline: ~1.5 hours
  • NiMH (1900 mAh): ~2.5 hours
  • Lithium: ~5 hours
• Test Conditions: 14-track recording, phantom off, headphones (63 Ω), no MASTER outputs
• Power Consumption: Max 5 W

Dimensions and Weight

• Size: 284 mm (W) × 114 mm (D) × 46.5 mm (H)
• Weight: 673 g (unit only), 767 g (with batteries)

Reference

dBu note: 0 dBu = 0.775 Vrms
