The Zoom LiveTrak L-20R is a rack-mountable digital mixer and recorder with 20 channels, 22-track recording, six custom monitor mixes, and wireless iPad control.

Zoom LiveTrak L-20R Digital Mixer and Recorder

Product ID: 61241
€ 1085,95 tax incl.

Delivery in 13 - 24 business days

SKU: 61241
Ean: 4515260020928
Condition: New product
Manufacturer: Zoom
1085.95
Leasing calculator
Leasing calculator
Payment period
3
6
12
24
36
Monthly, €
no
Discover related products
Discover related products

AI assistant AI ASSISTANT CHAT

This is the beta version of our new assistant chat, capable of answering both standard and advanced questions about product and store operations.

Or ask about:

What are the features? Is this in stock? Actual discounts & offers? Product reviews?
Type of ProductRecorders
How to buy goods on lease?

  • 1. Evaluate your options.
  • 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
  • 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
    We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
    Manager will check the availability of the items in the cart and send the loan application link.
  • 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
  • 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
  • 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
  • 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
  • *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
    **The sequence of leasing steps is the same for leases offered by InCredit Group.
    ***In case of doubt, contact our consultants!

    When using leasing services, carefully evaluate your options to repay the loan!
    • Lease
send a message

Quick order


Available from warehouse

You can enter the delivery address and/or company details and any other necessary information here.

Write a review

Zoom LiveTrak L-20R Digital Mixer and Recorder

Zoom LiveTrak L-20R Digital Mixer and Recorder

The Zoom LiveTrak L-20R is a rack-mountable digital mixer and recorder with 20 channels, 22-track recording, six custom monitor mixes, and wireless iPad control.

Write a review

Product details

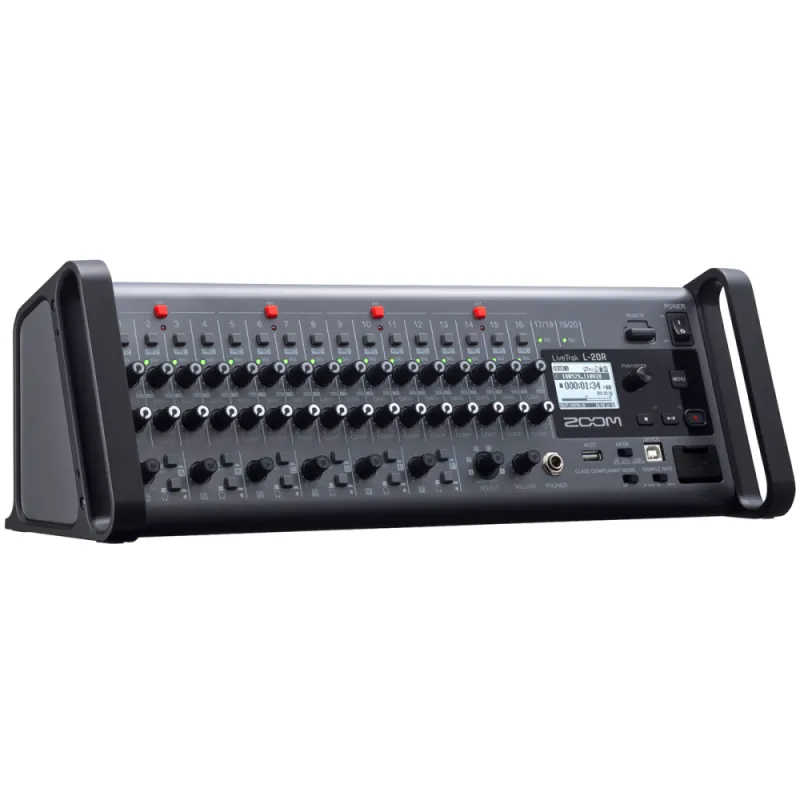

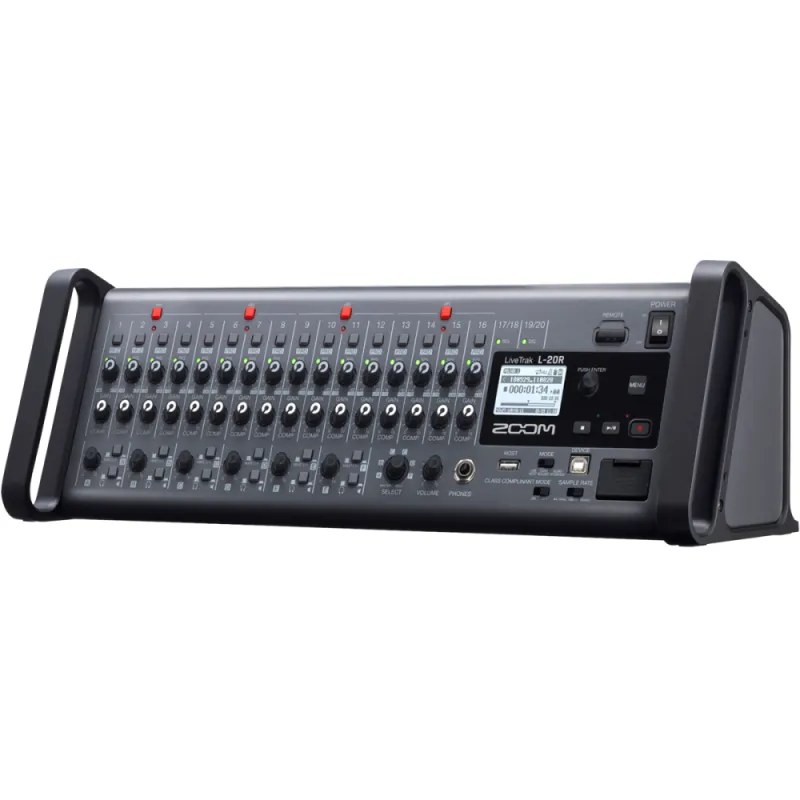

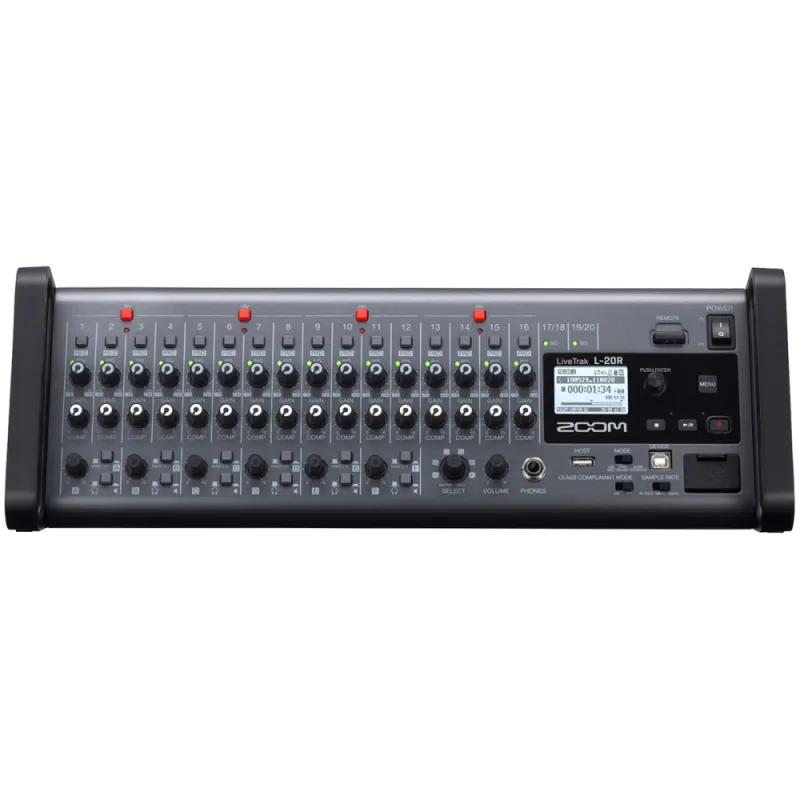

Portable Rack-Mountable Digital Mixer

The Zoom LiveTrak L-20R is a versatile rack-mountable digital mixer designed for live performance and recording. It features wireless control, 20 discrete channels, 22-track simultaneous recording, and six customizable monitor mixes, providing a comprehensive solution for live sound and recording needs.

Key Features

  • 20 discrete channels: 16 mono mic/line inputs plus 2 stereo inputs with XLR or ¼-inch combo connectivity
  • 22-track simultaneous recording and 20-track playback capability
  • 22-in/4-out USB audio interface for DAW and streaming integration
  • Records up to 24-bit/96 kHz audio directly to SD card (supports up to 512 GB)
  • Built-in compression control on channels 1-16
  • Main outputs plus six customizable monitor outputs for individual mixes
  • Dedicated headphone output for front-of-house (FOH) engineer monitoring
  • Scene saving function with up to nine scenes for quick recall of monitor mixes, EQ, and effects
  • 20 built-in effects including chorus, delay, and reverb with adjustable parameters
  • Compatible with Remote Mixer app for iPad for wireless control

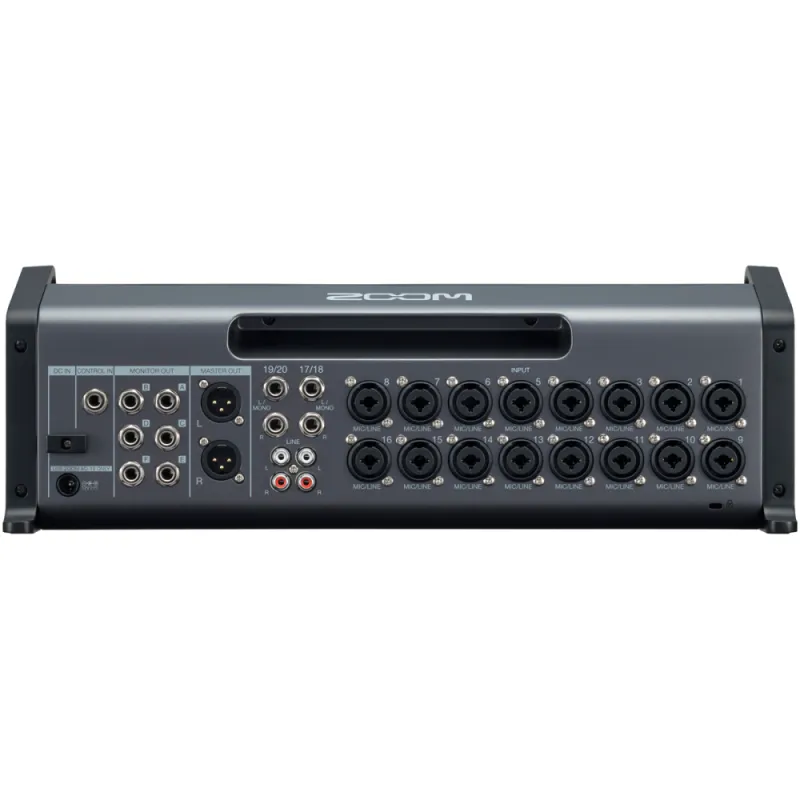

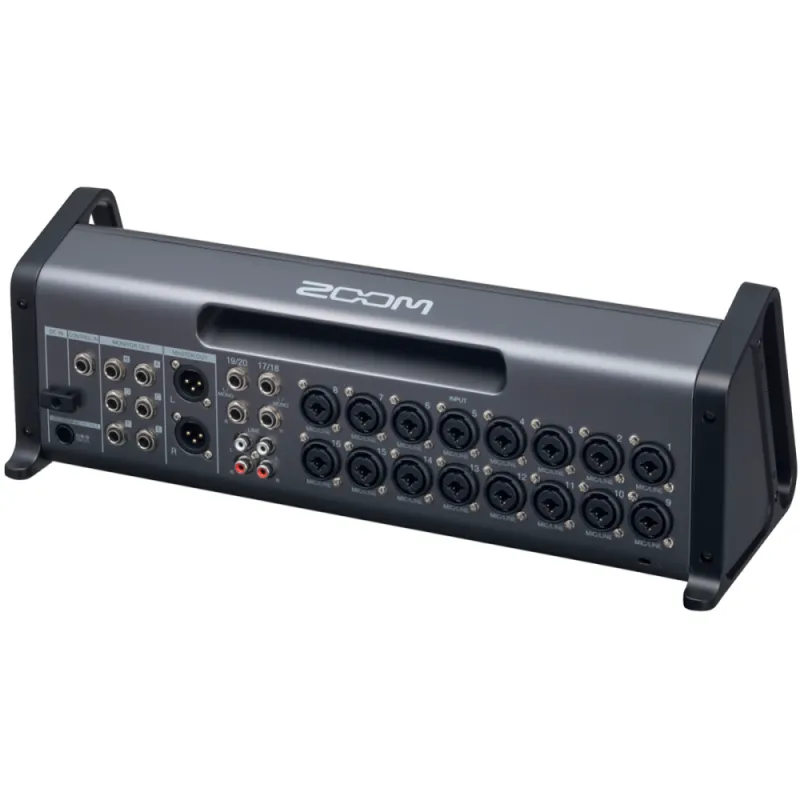

Inputs and Connectivity

  • 16 mono inputs with high-quality preamps featuring single-knob compression and gain control, offering -128 dBu EIN and +60 dB maximum input gain
  • Channels 1-2 include Hi-Z inputs suitable for electric guitar or bass
  • Channels 17/18 and 19/20 provide TS line inputs for keyboards and other audio devices, plus RCA inputs
  • USB port for audio interface use and file transfer
  • SD card slot for direct multitrack recording
  • Bluetooth adapter (BTA-1 included) enables wireless connection of a master iPad; additional iPads connect via Wi-Fi

Mixing and Monitoring

  • Each channel features a 3-band EQ, pan controls, and compressor
  • Two EFX busses for effects routing
  • Six independent monitor outputs allow musicians to wirelessly create their own custom monitor mixes
  • Dedicated headphone output for FOH engineer to monitor master or sub mixes and soloed tracks
  • "Master" and "Headphone" output options support both balanced line outputs and powerful headphone outputs for in-ear and stage monitors

Control and Operation

  • Bright, backlit LCD screen and encoder knob provide intuitive navigation and menu access
  • Transport controls include Record, Play/Pause, Stop, and overdub for adding tracks to existing projects
  • Scene recall function stores up to nine scenes with monitor mixes, EQ, and effects settings for quick setup
  • Wireless control via iPad app allows FOH engineer and up to six musicians to adjust their own mixes remotely

Included Accessories and Optional Add-ons

  • Included: LiveTrak L-20R unit, AD-19 AC adapter, BTA-1 Bluetooth adapter, rack ears, and quick guide
  • Optional: FS01 momentary footswitch for hands-free control
